70050

1 PAIR AES/EBU, 22AWG, ISTP, LSZH

...
DIGITAL AUDIO 1 PAIR AES/EBU, 22AWG/0.34mm², ISTP, LSZH
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

1-pair 22AWG halogen-free single pair cable; For digital audio

Physical Characteristics (Overall)
Conductor
AWG Stranding Material Construction n x D
22 7x30 BC-OFHC - Oxygen-Free Bare Copper (High Conductivity) 7x0.25 mm

Conductor Count

2

Total Number of Pairs

1

Insulation
Type Material Nominal Diameter Diameter +/- Tolerance
Insulation PE - Polyethylene (Foam) 2.10 mm 0.05 mm
Color Chart
Number Color
Pair 1 Red & Black
Outer Shield
Type Material Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D Drainwire Position
Tape Bi-Laminate (Alum+Poly) 100% TC - Tinned Copper 22 7x0.25 mm Under shielding foil
Outer Jacket
Material Nominal Diameter Diameter +/- Tolerance
LSZH - Low Smoke Zero Halogen (Flame Retardant) 6.00 mm 0.10 mm

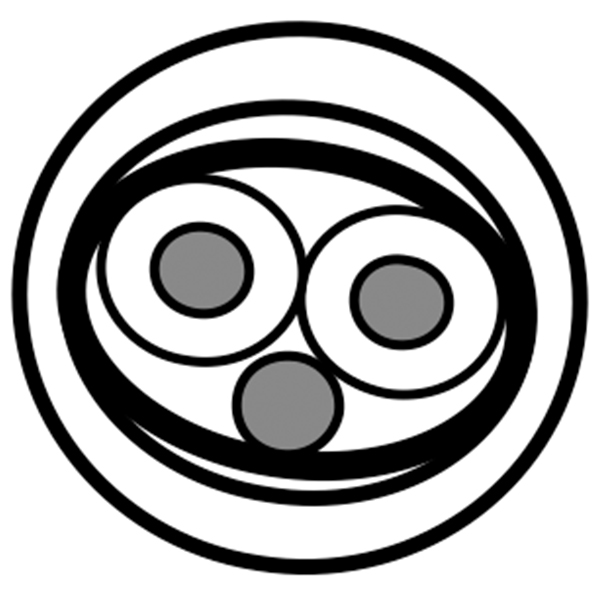

Construction and Dimensions
Cabling
Description
1 pair
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR
58.0 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor
45 pF/m
Impedance
Frequency [MHz] Nominal Characteristic Impedance Nominal Characteristic Tolerance
0.1 - 6 110 Ohm +/- 15 Ohm
Delay
Nominal Velocity of Propagation (VP) [%]
76%
Temperature Range

Other Temp Range

-30 to +70 °C

Mechanical Characteristics

Max. Pull Tension

70 N

Min. Bend Radius During Installation

60 mm

Min. Bend Radius During Operation

90 mm

Standards

CPR Euroclass

Fca

Applicable Environmental and Other Programs

Environmental Space

Indoor
Flammability, LS0H, Toxicity Testing

IEC Flammability

IEC 60332-1-2

LOI of Jacket

Min. 34 %

IEC 60754-1 - Halogen Amount

Zero

IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity

2.5 µS/mm

IEC 60754-2 - Halogen Acid Gas Amount - Min. pH

4.3

History

Update and Revision

Revision Number: 0.183 Revision Date: 02-15-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length EAN
70050.00100 Purple Reel 100 m 8719605159083
70050.00500 Purple Reel 500 m 8719605010025
