BE43906

LIGHTNING CONTROL DMX512 PVC

...
LIGHTNING CONTROL 2 PAIR 22AWG/0.34mm² DMX512 PVC
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

DMX 512 lighting control applications

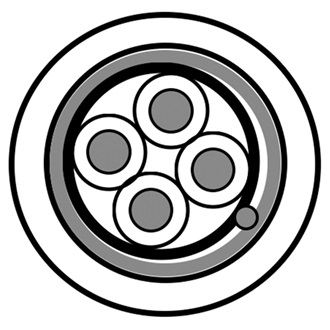

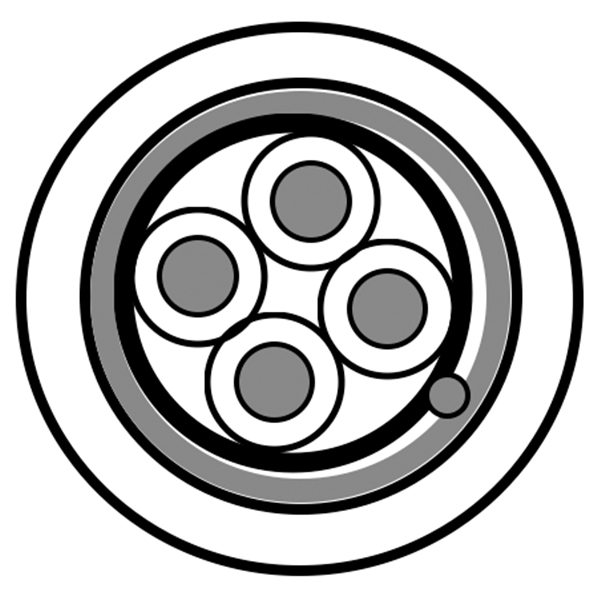

Physical Characteristics (Overall)
Conductor
AWG Stranding Material Construction n x D
22 7x30 TC - Tinned Copper 7x0.25 mm

Conductor Count

4

Total Number of Pairs

2

Insulation
Type Material Nominal Diameter Diameter +/- Tolerance
Insulation PE - Polyethylene 1.35 mm 0.10 mm
Color Chart
Number Color
Pair 1 White & Red
Pair 2 Green & Black
Outer Shield
Type Material Coverage [%] Thickness of Foil Drainwire Material Drainwire AWG Drainwire Construction n x D Drainwire Position
Braid Tinned Copper (TC) 80% TC - Tinned Copper 24 7x0.20 mm Over foil, under braid
Tape Bi-Laminate (Alum+Poly) 100% 9/23 µm
Outer Jacket
Material Nominal Diameter Diameter +/- Tolerance
PVC - Polyvinyl Chloride 6.80 mm 0.25 mm

Table Notes

Flexible Matte Finish Sheath

Construction and Dimensions
Cabling
Description
2 pairs twisted
Electrical Characteristics
Conductor DCR
Max. Conductor DCR Max. Outer Shield DCR
58 Ohm/km 15 Ohm/km
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
70 pF/m 112 pF/m
Inductance
Nominal Inductance
0.68 µH/m
Temperature Range

Storage Temperature Range

-25°C To +70°C

Other Temp Range

-5 to +70 °C

Mechanical Characteristics

Bulk Cable Weight

61 kg/km
Standards

CPR Euroclass

Fca

Applicable Environmental and Other Programs

Environmental Space

Indoor
History

Update and Revision

Revision Number: 0.181 Revision Date: 12-22-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length EAN
BE43906.00250 Black Reel 250 m 8719605026606
BE43906.00500 Black Reel 500 m 8719605026613
BE43906.001000 Black Reel 1,000 m 8719605026590
