Product Number: 70046LV
Speaker Cable LSZH 2x2.5mm², CPR B2ca.

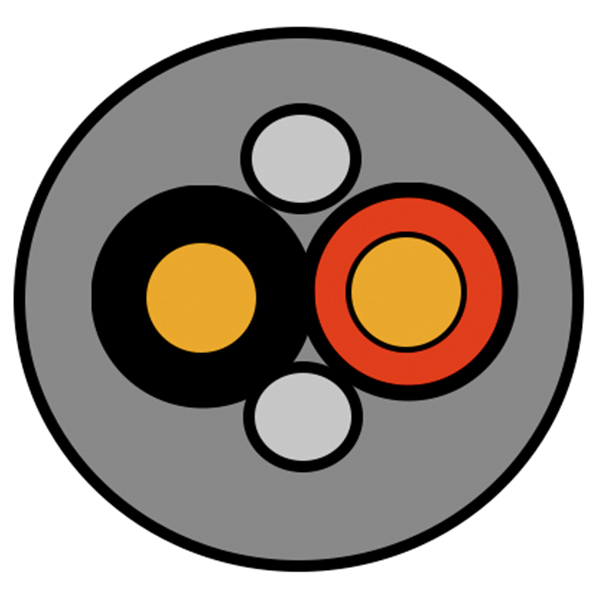

Speaker Cable, 2 Conductor 2.5mm² (50 x 0.25mm) Oxygen-Free Bare Copper (High Conductivity), LSZH Insulation, LSZH Jacket, Flexible, CPR Euroclass B2ca.
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Speaker cable for use in indoor or outdoor applications |
|---|
Physical Characteristics (Overall)
Conductor
| Stranding | Material | Cross Section | Construction n x D |
|---|---|---|---|
| Stranded | BC-OFHC - Oxygen-Free Bare Copper (High Conductivity) | 2.50 mm² | 50x0.25 mm |
|
Conductor Count |
2 |
|---|
Insulation
| Type | Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|---|
| Insulation | LSZH - Low Smoke Zero Halogen (Flame Retardant) | 2.70 mm | 0.07 mm |
Color Chart
| Number | Color |
|---|---|
| Wire 1 | Black |
| Wire 2 | Red |
Outer Jacket
| Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 8.0 mm | 0.30 mm |
|
Table Notes |
Matte Finish |
|---|
Construction and Dimensions
Cabling
| Description |
|---|
| 2 wires twisted |
Electrical Characteristics
Conductor DCR
| Max. Conductor DCR |
|---|
| 8 Ohm/km |
|
Min Insulation Resistance |
200 MOhm*km |
|---|
Voltage
| Voltage Rating [V] |
|---|
| 300 V |
Temperature Range
|
Storage Temperature Range |
-30°C to +70°C |
|---|---|
|
Operating Temp Range (Flexible Install) |
-5° to +60°C |
|
Operating Temp Range (Fixed Install) |
-30°C to +70° |
Mechanical Characteristics
|
Max. Pull Tension |
350 N |
|---|
Standards
|
CPR Euroclass |
B2ca-s1,d1,a1 |
|---|
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor/Outdoor - Euroclass B2ca |
|---|
Flammability, LS0H, Toxicity Testing
|
IEC Flammability |
IEC 60332-1-2 |
|---|---|
|
IEC 60754-1 - Halogen Amount |
Zero |
|
IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity |
2.5 µS/mm |
|
IEC 60754-2 - Halogen Acid Gas Amount - Min. pH |
4.3 |
History
|
Update and Revision |
Revision Number: 0.62 Revision Date: 02-15-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.62 Revision Date: 02-15-2024 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| 70046LV.00100 | Black | Reel | 100 m | 8719605175458 |
| 70046LV.00500 | Black | Reel | 500 m | 8719605174758 |
| 70046LV.01100 | White | Reel | 100 m | 8719605189769 |
| 70046LV.01500 | White | Reel | 500 m | 8719605189752 |
