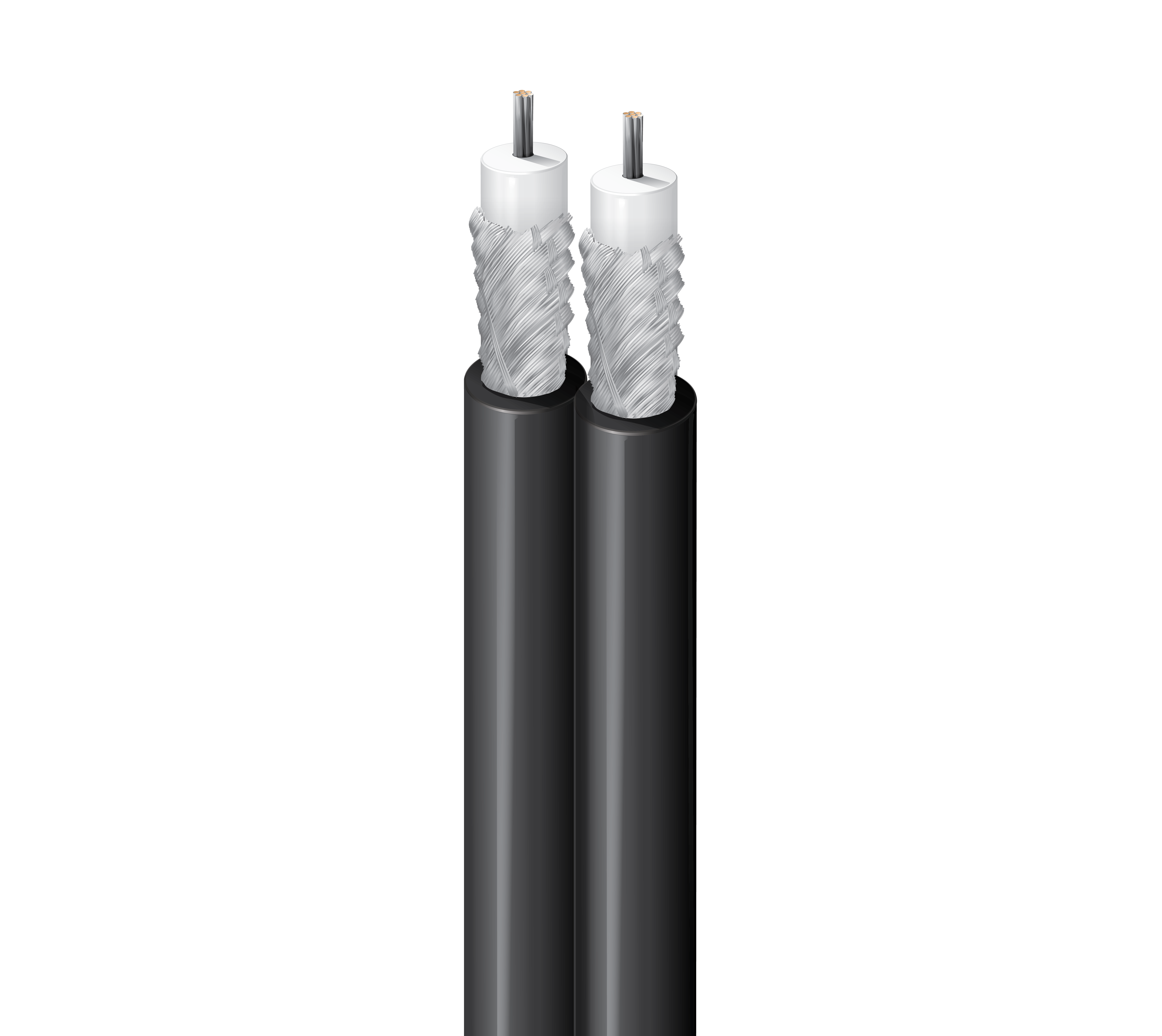

7700A

75 Ohm Analog Video Coax, Dual Ultra-miniature RG-59, 30 AWG Str TC, 95% TC French Braids, Flamarrest® Jkt, CMP, Flexible

...
75 Ohm Analog Video Coax, Dual Ultra-miniature RG-59, 30 AWG (7x38) Tinned Copper Conductors , FEP Insulation, 95% Tinned Copper French Braid Inner Shields, Flamarrest® Jacket, CMP, Flexible
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

S-Video, Standard analog video

Construction Details

RG Type

Ultra-miniature 59

Conductor
Size Stranding Nom. Diameter Material
30 AWG 7x38 0.012 in TC - Tinned Copper
Insulation
Material Nom. Insulation Diameter Color Code
PFA - Perfluoroalkoxy (Foam) 0.053 in (1.3 mm) White
Inner Shield
Shield Type Material Coverage
French Braid Tinned Copper (TC) 95%
Outer Jacket
Material Nom. Diameter
PVC - Polyvinyl Chloride 0.107 x .215 in

Overall Cable Diameter (Nominal)

0.107 in (2.72 mm)

Electrical Characteristics
Attenuation
Frequency Nom. Attenuation
1 MHz 0.7 dB/100ft
5 MHz 1.7 dB/100ft
10 MHz 2.3 dB/100ft
30 MHz 4.1 dB/100ft
50 MHz 5.3 dB/100ft
100 MHz 7.6 dB/100ft
200 MHz 11.8 dB/100ft
400 MHz 17.6 dB/100ft
700 MHz 24.2 dB/100ft
900 MHz 28.0 dB/100ft
1000 MHz 29.8 dB/100ft
Electricals
Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
92.6 Ohm/1000ft 7.5 Ohm/1000ft (25 Ohm/km) 17.3 pF/ft (56.8 pF/m) 75 Ohm 78%
Voltage
UL Voltage Rating Voltage Rating
300 V (CMP) 300 V
Mechanical Characteristics
Temperature
UL Temperature Operating
60°C -20°C to +60°C
Bend Radius
Installation Min.
2.2 in (56 mm)

Max. Pull Tension

12 lbs (5.4 kg)

Bulk Cable Weight

20 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor/Outdoor, Indoor, Aerial - Black only, When supported by messenger wire

Sustainability

CA Prop 65

Flammability / Reaction to Fire

NFPA 262

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

CMP

CEC / C(UL) Compliance

CMP

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Non-Plenum Number

1807A

History

Update and Revision

Revision Number: 0.437 Revision Date: 04-29-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
7700A B59500 Black, Matte Reel 500 ft 612825415879
7700A B591000 Black, Matte Reel 1,000 ft 612825188223 C
