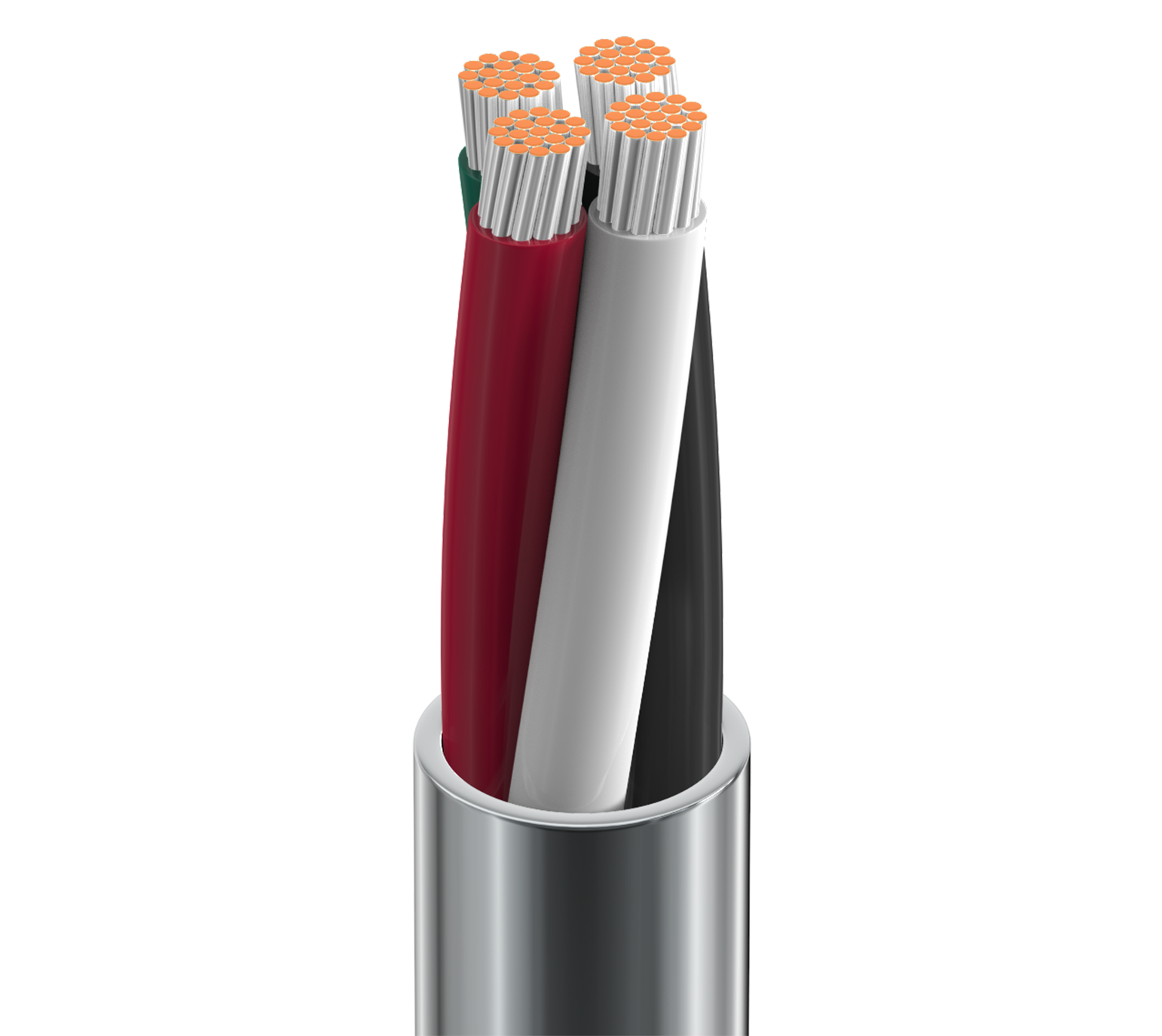

Product Number: 8627
Electronic, 4 C #14 Str TC, PVC Ins, PVC Jkt
Electronic, 4 Conductor 14AWG (19x27) Tinned Copper, PVC Insulation, PVC Outer Jacket
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
up to 600V analog signals ; up to 600V control ; line level audio; voice communications; panel wiring |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 4 | 14 AWG | 19x27 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | PVC - Polyvinyl Chloride | 0.045 in (1.1 mm) | 0.166 in (4.22 mm) | Black, White, Red, Green |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.045 in (1.1 mm) | 0.490 in (12.4 mm) |
|
Overall Cable Diameter (Nominal) |
0.490 in (12.4 mm) |
|---|
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Max. Current |
|---|---|---|---|
| Conductor(s) | 2.73 Ohm/1000ft | 18 pF/ft (59 pF/m) | 13.6 Amps per Conductor at 30ºC |
Voltage
| Voltage Rating |
|---|
| 600 V |
Mechanical Characteristics
Temperature
| Operating |
|---|
| -30°C to +75°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 4.9 in (120 mm) | 4.9 in (120 mm) |
|
Max. Pull Tension |
190 lbs (86 kg) |
|---|---|
|
Bulk Cable Weight |
139 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
UL 1581 (VW-1), IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
European Directive Compliance |
EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
History
|
Update and Revision |
Revision Number: 0.508 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.508 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 8627 060100 | Chrome | Reel | 100 ft | 612825213680 | C |
| 8627 0601000 | Chrome | Reel | 1,000 ft | 612825213697 | C |
