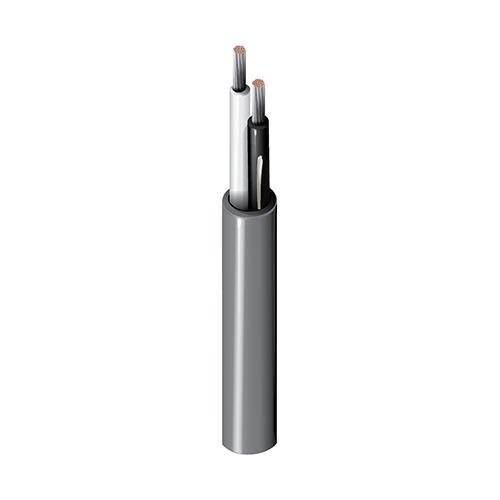

8471NH

Electronic, 2 C #16 Str TC, LSZH Ins, LSZH Jkt

...
Electronic, 2 Conductor 16AWG (19x29) Tinned Copper, LSZH Insulation, LSZH Outer Jacket

Regions Available: Global
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Construction Details
Conductor
Size Stranding Material
16 19x29 TC - Tinned Copper
Insulation
Material Nom. Insulation Diameter Color Code Notes
LSZH - Low Smoke Zero Halogen (Flame Retardant) 2.67 mm (0.105 in) Black & White Flame Retardant
Outer Jacket
Material Nom. Thickness Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 0.89 mm (0.035 in) 7.1 mm (0.28 in)

Overall Cable Diameter (Nominal)

7.1 mm (0.28 in)

Electrical Characteristics
Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Max. Current
14.7 Ohm/km (4.48 Ohm/1000ft) 52 pF/m (16 pF/ft) 7.1 Amps per Conductor
Voltage
Voltage Rating
300 V
Mechanical Characteristics
Temperature
Operating Installation Storage
-20°C To +75°C -15°C To +80°C -45°C To +80°C
Bend Radius
Installation Min.
71 mm (2.8 in)

Max. Pull Tension

127 N (28.6 lbf)

Bulk Cable Weight

32 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor - Euroclass Dca, Indoor, Non-Halogenated, Sunlight Resistance

Flammability / Reaction to Fire

IEC 60332-1-2, IEC 60332-3-24

CPR Compliance

CPR Euroclass: Dca-s1,d1,a1; CPR UKCA Class: Dca-s1,d1,a1

ISO/IEC Compliance

IEC 61034-2 - Smoke Density Min Transmittance = 60%

CENELEC Compliance

EN 50290-2-20

European Halogen Free Standards

IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3

European Directive Compliance

EU CE Mark

UK Regulation Compliance

UKCA Mark

History

Update and Revision

Revision Number: 0.391 Revision Date: 12-02-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length EAN
8471NH.01500 Blue Reel 500 m 8719605018359
8471NH.00152 Chrome Reel 152 m 8719605018328
8471NH.00305 Chrome Reel 305 m 8719605018335
8471NH.00500 Chrome Reel 500 m 8719605018342
8471NH.001000 Chrome Reel 1,000 m 8719605018304
8471NH.001500 Chrome Reel 1,500 m 8719605018311
8471NH.021000 Green Reel 1,000 m 8719605148087
8471NH.03305 White Reel 305 m 8719605197290
8471NH.03500 White Reel 500 m 8719605161666
8471NH.031000 White Reel 1,000 m 8719605161680
