8777LS

Audio, Control & Instrument, #22-3pr, PP, Indiv. Foil, LSZH Jkt, SWA

...
Audio, Control & Instrument Cable, 3-Pair, 22 AWG stranded (7x30) tinned copper conductors, polypropylene insulation, individually shielded pairs (100% coverage), 22 AWG stranded tinned copper drain wire, LSZH jacket, Steel Wire Armor
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

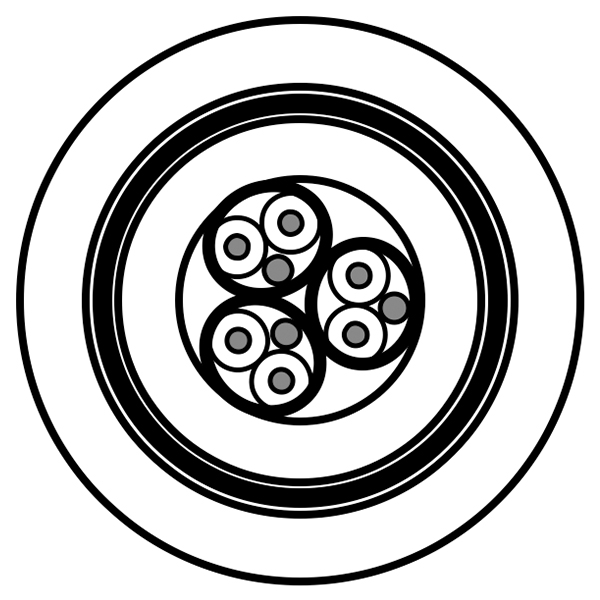

Construction Details
Conductor
Size Stranding Material
22 7x30 TC - Tinned Copper
Insulation
Material Nom. Insulation Diameter Color Code
PP - Polypropylene 1.27 mm (0.0500 in) Black & Red, Black & White, Black & Green
Red, Green, Blue
Inner Shield
Shield Type Material Coverage Drainwire Type Notes
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7x30) TC each pair
Polyester each pair
Outer Shield
Material
Bi-Laminate (Alum+Poly)
Inner Jacket
Material Nom. Thickness Nom. Diameter Color
LSZH - Low Smoke Zero Halogen (Flame Retardant) 0.89 mm (0.035 in) 7 mm (0.28 in) Chrome (RAL 7037)
Armor
Armor Type & Material Armor Thickness Coverage
SWA - Steel Wire Armor 0.9 mm (0.035 in) Min. 95%
Outer Jacket
Material Nom. Thickness Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 1.35 mm (0.0531 in) 11.5 mm (0.453 in)

Overall Cable Diameter (Nominal)

11.5 mm (0.453 in)

Electrical Characteristics
Electricals
Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Max. Current
49.2 Ohm/km (15.0 Ohm/1000ft) 34.8 Ohm/km (10.6 Ohm/1000ft) 98.4 pF/m (30.0 pF/ft) 180.4 pF/m (54.99 pF/ft) 50 Ohm 2 A
Voltage
Voltage Rating
300 V
Mechanical Characteristics
Temperature
Operating Installation Storage
-45°C To +80°C -15°C To +80°C -45°C To +80°C
Bend Radius
Installation Min.
115 mm (4.53 in)
Standards and Compliance

Environmental Suitability

IndoorIndoor/OutdoorOutdoorIndoor/Outdoor - Euroclass Eca, Outdoor, Sunlight Resistance

Flammability / Reaction to Fire

IEC 60332-1-2, IEC 60332-3-24

ISO/IEC Compliance

IEC 61034-2 - Smoke Density Min Transmittance = 60%

CENELEC Compliance

EN 50290-2-20

European Halogen Free Standards

IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3

European Directive Compliance

EU CE Mark

History

Update and Revision

Revision Number: 0.265 Revision Date: 12-05-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length EAN
8777LS.00500 Black Reel 500 m 8719605019578
8777LS.001000 Black Reel 1,000 m 8719605019561
