Transceiver 10BASE5, #20-5pr, FPO, Isolated Shields, PVC Jkt, CM

...

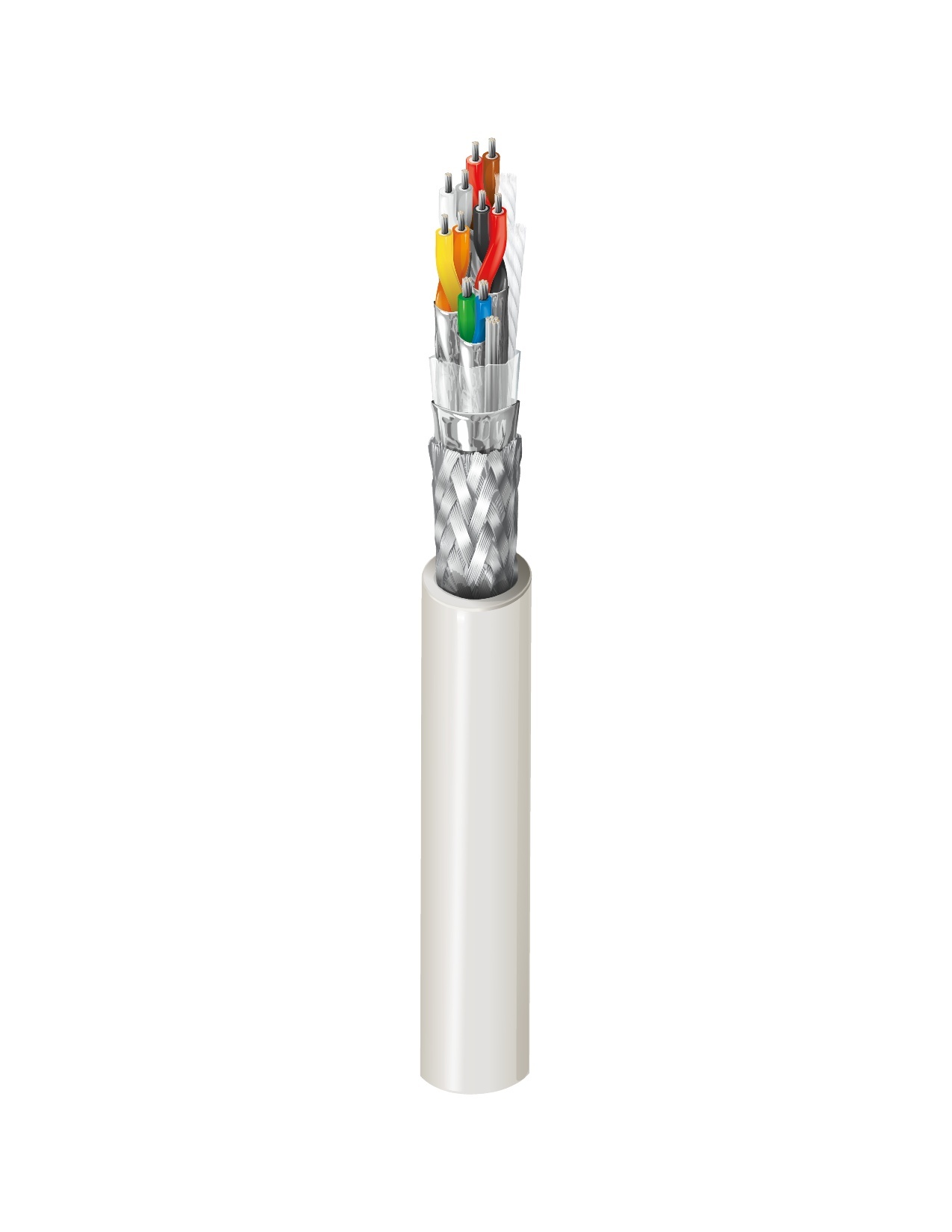

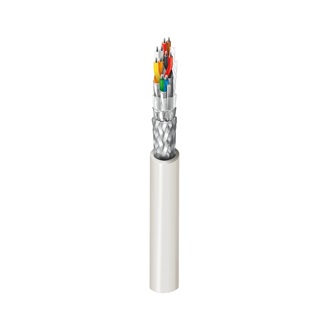

IEEE 802.3 Ethernet Transceiver 10BASE5, 20 AWG stranded (7x28) tinned copper conductors, Datalene® insulation, twisted pairs, overall polyester isolation tape + Duofoil® + tinned copper braid shield (95% coverage), drain wire, light gray PVC jacket.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

IEEE 802.3 Transceiver Cable

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Pair(s) 5 20 AWG 7x28 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code Notes
Pair(s) PE - Polyethylene (Foam) 0.02 in (0.51 mm) 0.077 in (2.0 mm) Gray & White, Yellow & Orange, Blue & Green, Red & Brown, Red & Black HDPE
Inner Shield
Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Tri-Laminate (Alum+Poly+Alum) 100% 20 AWG (7x28) TC
Braid Tinned Copper (TC) 95%
Outer Jacket
Separator Material Nom. Thickness Nom. Diameter
Polyester Tape PVC - Polyvinyl Chloride 0.04 in (1.0 mm) 0.495 in

Overall Cable Diameter (Nominal)

0.495 in

Electrical Characteristics
Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
11.4 Ohm/1000ft 16.7 pF/ft (54.8 pF/m) 29.5 pF/ft (96.8 pF/m) 78 Ohm 78% 5.6 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating
150 V (CL2), 30 V (AWM 2919)
Mechanical Characteristics
Temperature
UL Temperature Operating
80°C -20°C to +80°C
Bend Radius
Stationary Min. Installation Min.
4.95 in (126 mm) 4.95 in

Max. Pull Tension

248.6 lbs (112.8 kg)

Bulk Cable Weight

138 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor

Flammability / Reaction to Fire

UL1685 UL Loading

NEC / UL Compliance

Article 800, Article 725

AWM Compliance

AWM 2919

CEC / C(UL) Compliance

CM

IEEE Compliance

IEEE 802.3

European Directive Compliance

EU CE Mark, EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Product Notes

Notes

Polyester separator tape over cabled pairs
