89907

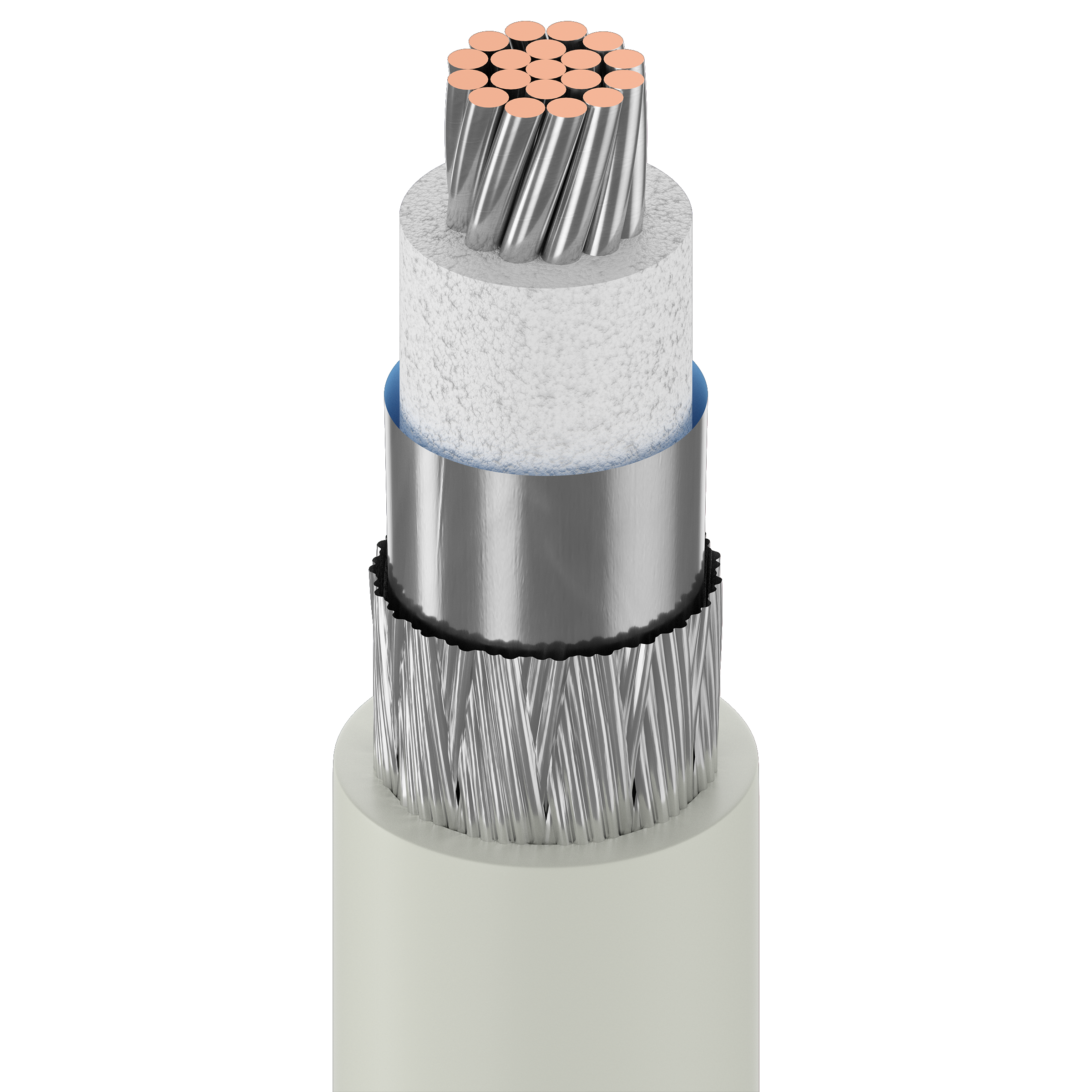

Thinnet 10BASE2, RG-58A/U Type, #20 Str, FFEP, Duobond II+TC Braid, PVDF Jkt, CMP

...
IEEE 802.3 Ethernet Thinnet 10BASE2, 20 AWG (19x32) tinned copper conductor, foam FEP insulation, Duobond® II (100% coverage) + tinned copper braid shield (95% coverage), fluorocopolymer jacket, CMP
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Thin Ethernet (IEEE 802.3 10BASE2)

Construction Details

RG Type

58

Conductor
Size Stranding Nom. Diameter Material
20 AWG 19x32 0.037 in TC - Tinned Copper
Insulation
Material Nom. Insulation Diameter Color Code
PFA - Perfluoroalkoxy (Foam) 0.100 in (2.54 mm) White
Outer Shield
Layer Outer Shield Type Material Material Trade Name Coverage
1 Tape Tri-Laminate (Alum+Poly+Alum) Duobond® II 100%
2 Braid Tinned Copper (TC) 93%
Outer Jacket
Material Nom. Diameter
PVDF - Polyvinylidene Fluoride 0.165 in (4.19 mm)

Overall Cable Diameter (Nominal)

0.165 in (4.19 mm)

Electrical Characteristics
Attenuation
Frequency Nom. Attenuation
1 MHz 0.43 dB/100ft
10 MHz 1.3 dB/100ft
50 MHz 2.91 dB/100ft
100 MHz 4.18 dB/100ft
200 MHz 6.1 dB/100ft
400 MHz 9.2 dB/100ft
700 MHz 12.9 dB/100ft
900 MHz 15.0 dB/100ft
1000 MHz 16.0 dB/100ft
Power Rating
Frequency Max. Power Rating
1 MHz 6,450 W
10 MHz 1,850 W
50 MHz 890 W
100 MHz 640 W
200 MHz 470 W
400 MHz 360 W
700 MHz 290 W
900 MHz 270 W
1,000 MHz 260 W
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
8.5 Ohm/1000ft (28 Ohm/km) 5.8 Ohm/1000ft (19 Ohm/km) 26.0 pF/ft (85.3 pF/m) 50 Ohm 80%
Voltage
UL Voltage Rating
300 V (CMP)
Mechanical Characteristics
Temperature
UL Temperature Operating
150°C -15°C to +150°C
Bend Radius
Installation Min.
1.6 in (41 mm)

Max. Pull Tension

45 lbs (20 kg)

Bulk Cable Weight

26 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor - Plenum, Aerial - When supported by messenger wire

Sustainability

CA Prop 65

Flammability / Reaction to Fire

NFPA 262

CPR Compliance

CPR Euroclass: Eca

CEC / C(UL) Compliance

CMP

IEEE Compliance

802.3 10Base2

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Non-Plenum Number

9907

History

Update and Revision

Revision Number: 0.522 Revision Date: 04-29-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
89907 E4X500 Gray, Light Dec Reel 500 ft 612825221449 C
89907 E4X1000 Gray, Light Dec Reel 1,000 ft 612825221425 C
89907 E4X2500 Gray, Light Dec Reel 2,500 ft 612825221432 C Z
