50 Ohm Wireless Transmission Coax, RG-8, 10 AWG Solid BC, Foil + 90% TC Braid, PVC Jkt

...

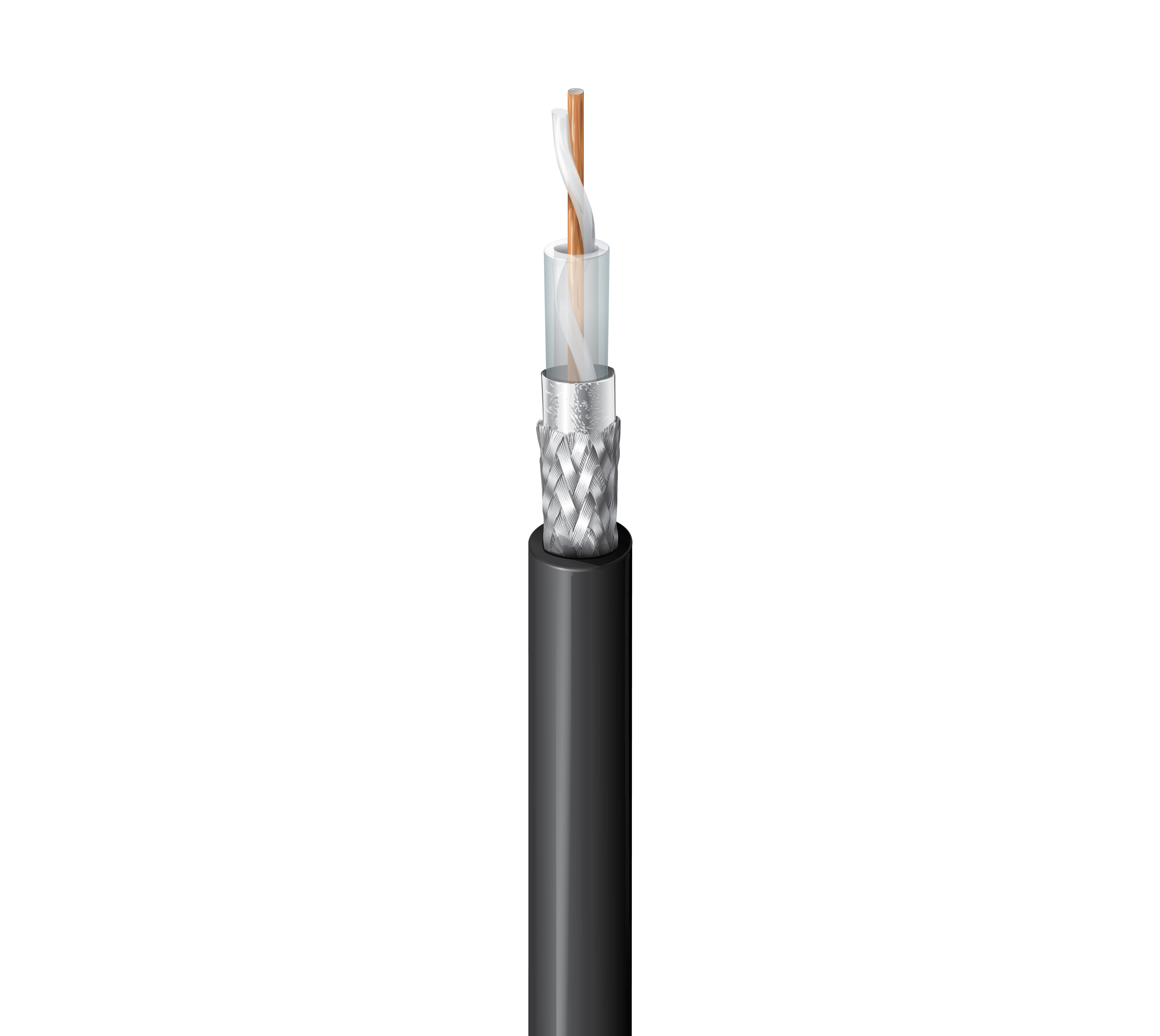

50 Ohm Wireless Transmission Coax, RG-8, 10 AWG Solid Bare Copper Conductor , PE Insulation, Foil + 90% Tinned Copper Braid Shield, PVC Jacket
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)

Construction Details

RG Type

8

Conductor
Size Stranding Nom. Diameter Material
10 AWG Solid 0.108 in BC - Bare Copper
Insulation
Material Nom. Insulation Diameter Color Code Notes
PE - Polyethylene (Semi-Solid) 0.285 in (7.24 mm) White Solid PE monofilament spiral around conductor. Solid PE tube over monofilament
Outer Shield
Layer Outer Shield Type Material Material Trade Name Coverage
1 Tape Tri-Laminate (Alum+Poly+Alum) Duobond® II 100%
2 Braid Tinned Copper (TC) 90%
Outer Jacket
Material Nom. Diameter
PVC - Polyvinyl Chloride 0.405 in (10.3 mm)

Overall Cable Diameter (Nominal)

0.405 in (10.3 mm)

Electrical Characteristics
Attenuation
Frequency Nom. Attenuation
5 MHz 0.4 dB/100ft
10 MHz 0.5 dB/100ft
50 MHz 1.0 dB/100ft
100 MHz 1.4 dB/100ft
200 MHz 1.8 dB/100ft
400 MHz 2.6 dB/100ft
700 MHz 3.6 dB/100ft
900 MHz 4.1 dB/100ft
1000 MHz 4.4 dB/100ft
Power Rating
Frequency Max. Power Rating
5 MHz 4,021 W
10 MHz 3,217 W
50 MHz 1,609 W
100 MHz 1,149 W
200 MHz 894 W
400 MHz 619 W
700 MHz 447 W
900 MHz 393 W
1,000 MHz 366 W
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
0.9 Ohm/1000ft 1.8 Ohm/1000ft (5.9 Ohm/km) 24.6 pF/ft (80.7 pF/m) 50 Ohm 84%
Voltage
Voltage Rating
600V RMS
Mechanical Characteristics
Temperature
Operating
-30°C to +75°C
Bend Radius
Installation Min.
4 in (100 mm)

Max. Pull Tension

292 lbs (132 kg)

Bulk Cable Weight

97 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor (Not Riser or Plenum), Indoor, Aerial - Black only, When supported by messenger wire

Sustainability

CA Prop 65

CPR Compliance

CPR Euroclass: Eca; CPR UKCA Class: Eca

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Plenum Number

89913

Product Notes

Notes

Recommend use of 7810R, 7810A, 9913F7, or 9914 for applications above 1 GHz.
