8138FO

RS232/485 Low Cap, #28-8pr, FPO, O/A Foil, PVC Jkt, CL2, 120Ω

...

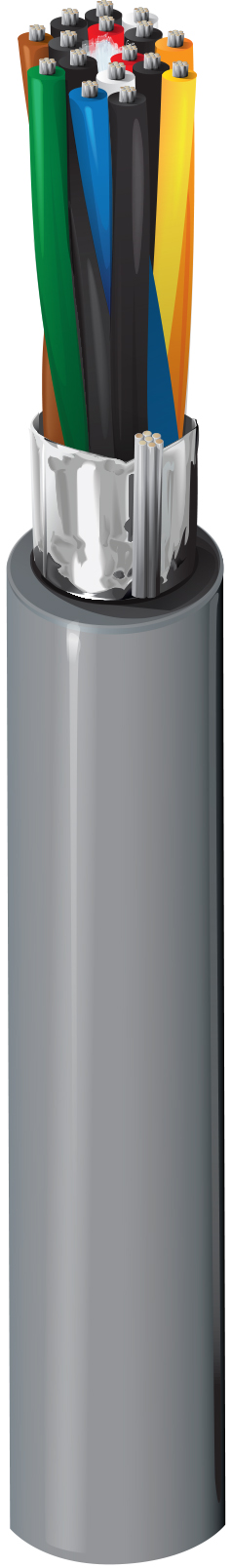

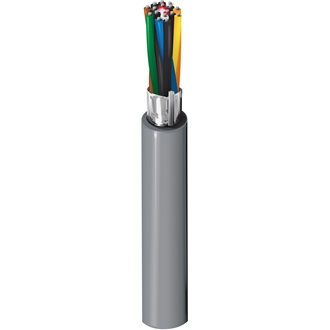

Computer EIA RS-232/485 Cable, 28 AWG stranded (7x36) tinned copper conductors, Datalene® insulation, twisted pairs, overall Beldfoil® shield (100% coverage), 28 AWG stranded tinned copper drain wire, PVC jacket.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

rs-232 extended distance applications; rs-423 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Pairs
28 7x36 TC - Tinned Copper 8

Conductor Count

16

Insulation
Material Material Trade Name Nominal Wall Thickness
PE - Polyethylene (Foam) Datalene® 0.015 in
Color Chart
Number Color
1 White/Blue & Blue/White
2 White/Orange & Orange/White
3 White/Green & Green/White
4 White/Brown & Brown/White
5 White/Gray & Gray/White
6 Red/Blue & Blue/Red
7 Red/Orange & Orange/Red
8 Red/Green & Green/Red
Outer Shield
Type Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
Tape Bi-Laminate (Alum+Poly) Beldfoil® (Z-Fold®) 100% TC - Tinned Copper 28 7x36
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.31 in 0.04 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR
65 Ohm/1000ft 17.7 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
11 pF/ft 20 pF/ft
Impedance
Nominal Characteristic Impedance
120 Ohm
Delay
Max. Delay Skew Nominal Velocity of Propagation (VP) [%]
78 ns/100m 78%
Current
Max. Recommended Current [A]
0.7 Amps per Conductor at 25ºC
Voltage
UL Description UL Voltage Rating
UL AWM Style 2919 30 V RMS (UL AWM Style 2919)
CL2 150 V RMS (CL2)
Temperature Range

Operating Temperature Range

-30°C To +80°C

Mechanical Characteristics

Bulk Cable Weight

37 lbs/1000ft

Min. Bend Radius/Minor Axis

3.25 in
Standards

NEC/(UL) Compliance

CL2

UL AWM Style Compliance

AWM 2919 (30 V 80°C)
Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/96/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

MII Order #39 (China RoHS)

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

UL1685 UL Loading

UL voltage rating

30 V RMS (UL AWM Style 2919)

Plenum/Non-Plenum

Plenum (Y/N)

No

Related Part Numbers

Footnote

C - CRATE REEL PUT-UP.
Product Notes

Notes

Datalene® insulation features include low dielectric constant and a dissipation factor for high-speed, low distortion data handling. Physical properties include good crush resistance and light weight.

History

Update and Revision

Revision Number: 0.340 Revision Date: 05-05-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color UPC
8138FO 0601000 Chrome 612825195436
