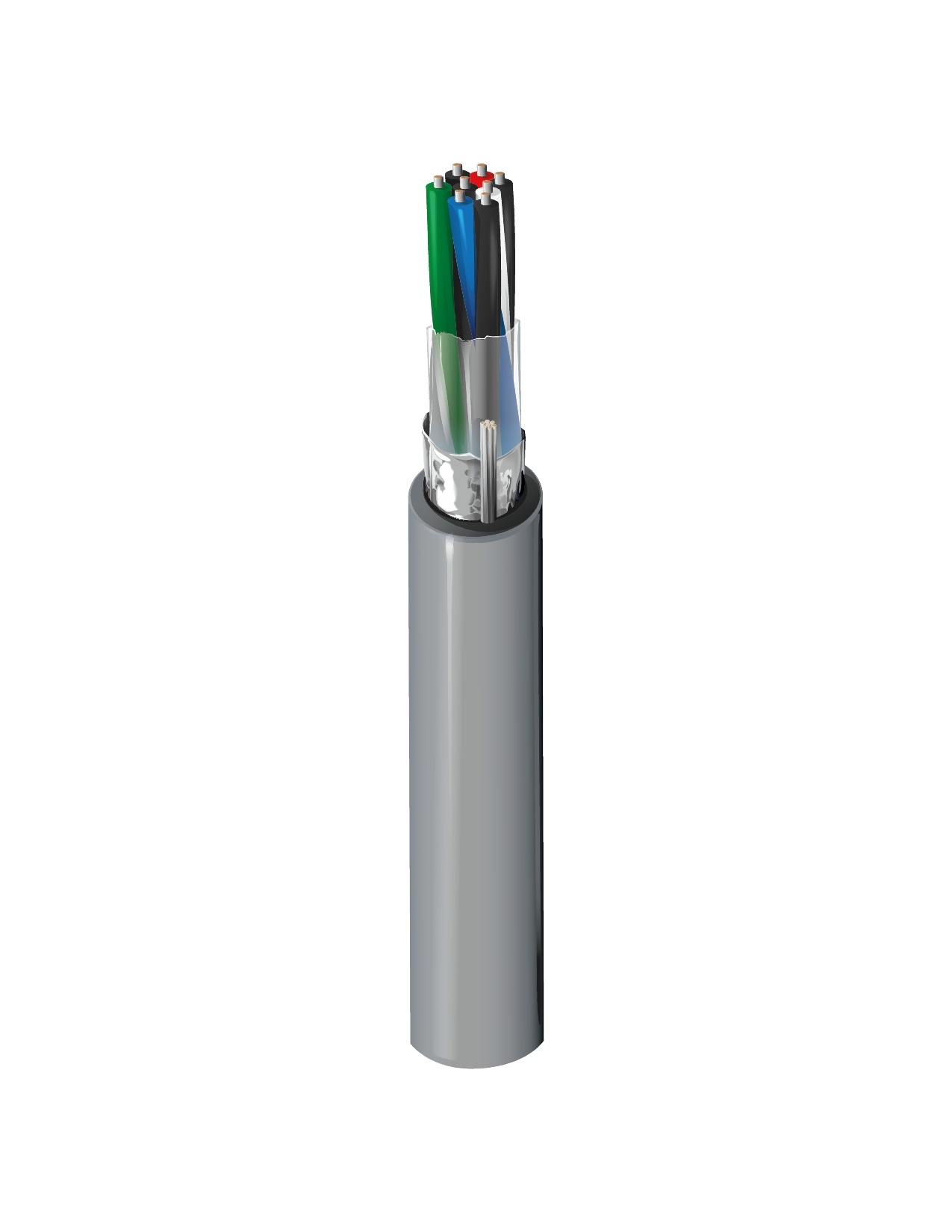

9305

Audio, Control & Instrument, #22-4pr, PVC, O/A Foil, PVC Jkt, CMG

...
Audio, Control & Instrument Cable, 22 AWG solid tinned copper conductors, PVC insulation, 4 twisted pairs, overall Beldfoil® shield (100% coverage), 22 AWG stranded tinned copper drain wire, PVC jacket.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; computer communication; panel wiring

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Pair(s) 4 22 Solid TC - Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter Color Code
PVC - Polyvinyl Chloride 0.011 in (0.28 mm) 0.051 in (1.3 mm) Black & Red, Black & White, Black & Green, Black & Blue
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Bi-Laminate (Alum+Poly) 100% 22 AWG (7x30) TC
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.032 in (0.81 mm) 0.265 in (6.73 mm)
Electrical Characteristics
Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
20.6 Ohm/1000ft 35 pF/ft (110 pF/m) 50 pF/ft (160 pF/m) 2.03 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V
Mechanical Characteristics
Temperature
UL Temperature Operating
80°C -20°C To +80°C
Bend Radius
Stationary Min. Installation Min.
2.65 in (67.3 mm) 2.65 in (67.3 mm)

Max. Pull Tension

62.4 lbs (28.3 kg)

Bulk Cable Weight

41 lbs/1000ft

Standards and Compliance

Flammability / Reaction to Fire

UL1685 FT4 Loading, FT4, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 800, CMG

AWM Compliance

AWM 2464

CEC / C(UL) Compliance

CMG

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.437 Revision Date: 12-22-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
9305 060100 Chrome Reel 100 ft 612825227397
9305 060500 Chrome Reel 500 ft 612825227410 C
9305 060U500 Chrome UnReel 500 ft 612825227380
9305 0601000 Chrome Reel 1,000 ft 612825227403
9305 060U1000 Chrome UnReel 1,000 ft 612825227373
9305 0605000 Chrome Reel 5,000 ft 612825227427 C
