9898

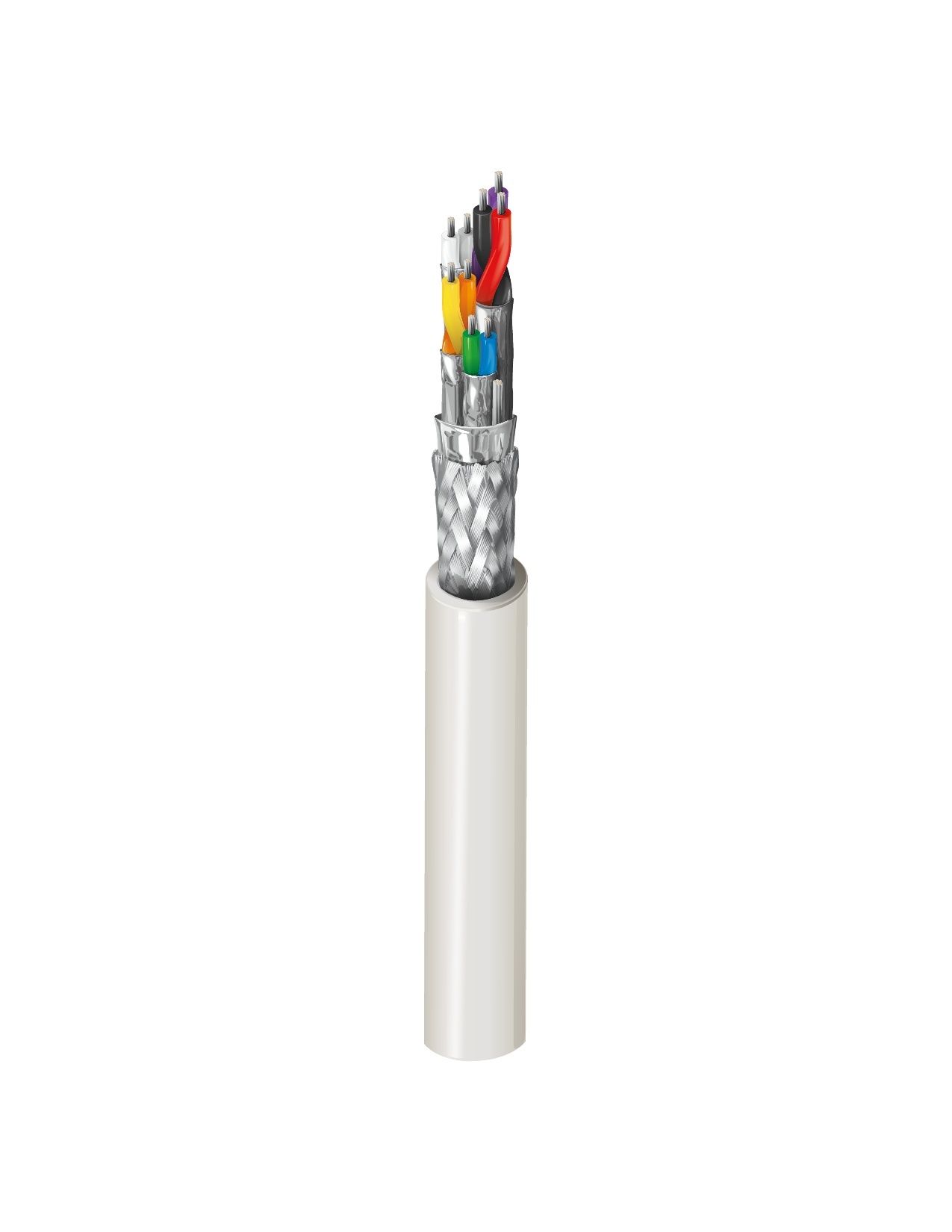

Transceiver 10BASE5, #28-3pr, #24-3c, PO, Isolated Shields, PVC Jkt, CM

...
IEEE 802.3 Ethernet Transceiver 10BASE5, 3 pairs - 28 AWG stranded (7x36) tinned copper conductors, 3 conductors - 24 AWG stranded (7x32) tinned copper conductors, polypropylene insulation, all indiv. Beldfoil® shielded, overall isolated, Duofoil® + tinned copper braid shield, PVC jacket.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

IEEE 802.3 Transceiver Cable

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Pair(s) 3 28 AWG 7x36 TC - Tinned Copper
Conductor(s) 3 24 AWG 7x32 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Triad(s) PP - Polypropylene 0.01 in (0.25 mm) 0.044 in (1.1 mm) Gray & White, Yellow & Orange, Blue & Green, Black, Red, & Purple
Conductor(s) PP - Polypropylene 0.01 in (0.25 mm) 0.035 in (0.89 mm) Yellow, Orange, White
Inner Shield
Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Tri-Laminate (Alum+Poly+Alum) 100% 24 AWG (7x32) TC
Braid Tinned Copper (TC) 91%
Outer Jacket
Separator Material Nom. Thickness Nom. Diameter
Polyester Tape PVC - Polyvinyl Chloride 0.032 in (0.81 mm) 0.26 in

Overall Cable Diameter (Nominal)

0.26 in

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
Pair(s) 73.5 Ohm/1000ft 19.7 pF/ft (64.6 pF/m) 35 pF/ft (110 pF/m) 78 Ohm 66% 0.9 Amps per Conductor at 30ºC
Conductor(s) 28.3 Ohm/1000ft (92.8 Ohm/km) 2.1 Amp per Conductor at 30ºC
Voltage
UL Voltage Rating
150 V (CL2), 30 V (AWM 2919)
Mechanical Characteristics
Temperature
UL Temperature Operating
80°C -20°C to +80°C
Bend Radius
Stationary Min. Installation Min.
2.6 in (66 mm) 2.6 in

Max. Pull Tension

78 lbs (35 kg)

Bulk Cable Weight

42 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor

Flammability / Reaction to Fire

UL1685 UL Loading

NEC / UL Compliance

Article 725, CL2

AWM Compliance

AWM 2919

IEEE Compliance

IEEE 802.3

European Directive Compliance

EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.355 Revision Date: 12-22-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color UPC Footnote
9898 E4X1000 Gray, Light Dec 612825260158 C
