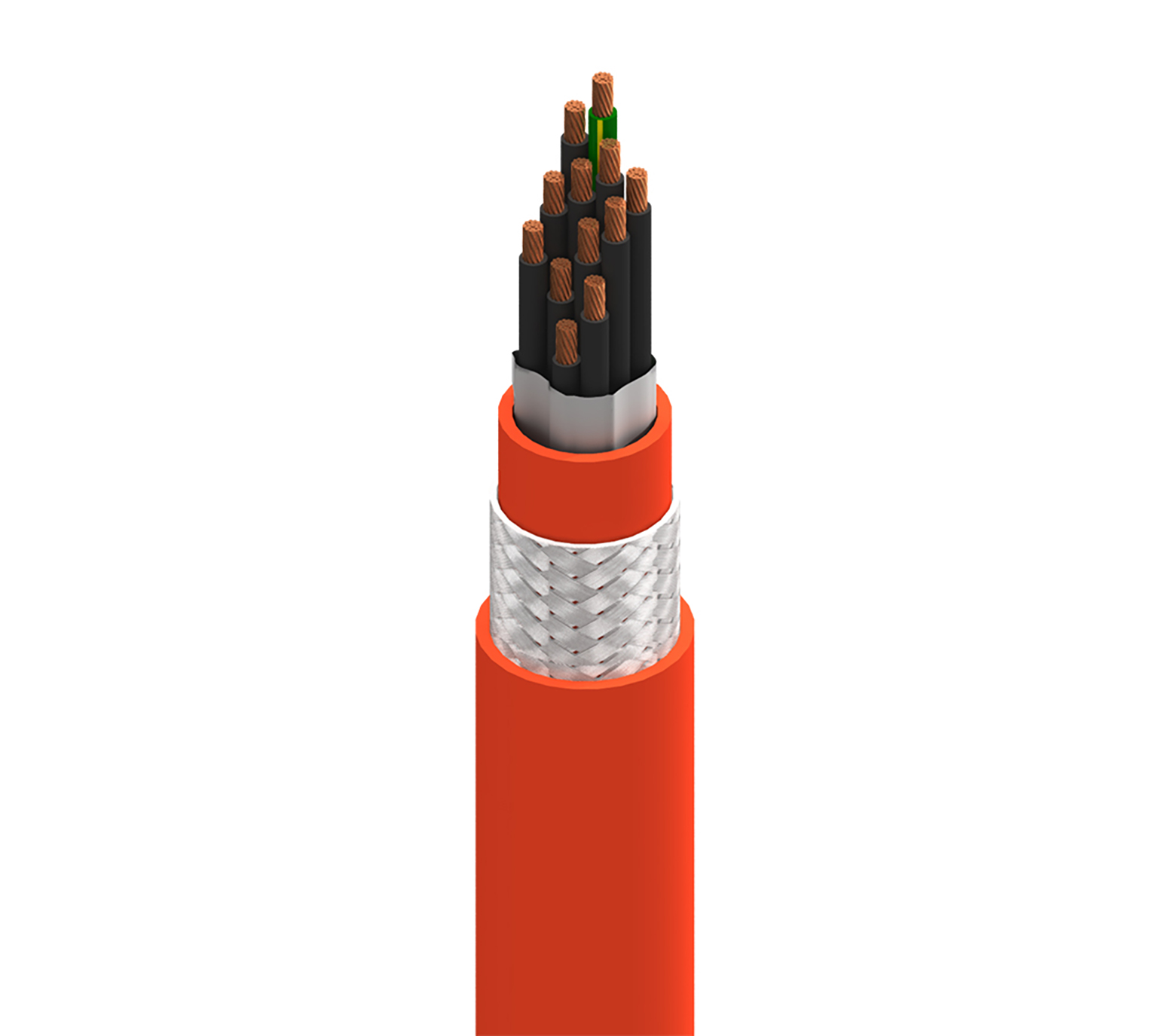

7106WS

MachFlex™, 11+1G C #20 Str BC, PVC Ins, OA TC Brd, TPE Jkt, TPE Jkt, PLTC

...
MachFlex™ for High Flex, 11+1G Conductor 20AWG (74x38) Bare Copper, PVC Insulation, Overall Tinned Copper Braid(85%) Shield, TPE Inner Jacket, TPE Outer Jacket, PLTC
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Robotics, Robot, Continuous Flex

Physical Characteristics (Overall)
Conductor
Element AWG Stranding Material No. of Conductors
20 74x38 BC - Bare Copper 11
Ground Wire 20 74x38 BC - Bare Copper

Conductor Count

12

Insulation
Material Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.015 in
Color Chart
Number Color
1 Black and Numbered 1
2 Black and Numbered 2
3 Black and Numbered 3
4 Black and Numbered 4
5 Black and Numbered 5
6 Black and Numbered 6
7 Black and Numbered 7
8 Black and Numbered 8
9 Black and Numbered 9
10 Black and Numbered 10
11 Black and Numbered 11
12 Green/Yellow
Inner Jacket
Material Nominal Diameter Nominal Wall Thickness
TPE - Thermoplastic Elastomer 0.361 in 0.025 in
Outer Shield
Type Material Coverage [%] Nominal Diameter
Braid Tinned Copper (TC) 85% 0.383 in
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
TPE - Thermoplastic Elastomer 0.489 in 0.053 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR
8.8 Ohm/1000ft
Voltage
UL Voltage Rating
300 V RMS
600 V RMS
Temperature Range

UL Temp Rating

90°C

Operating Temperature Range

-50°C (-5°C Flexing) To 90°C

Other Temp Range

Flexing: -5°C To +90 °C

Mechanical Characteristics

Oil Resistance

Yes

UV Resistance

Yes

Flex Cycle Rating

10 Million Flexes

Bulk Cable Weight

141 lbs/1000ft

Max. Pull Tension

194 lbs

Min. Bend Radius (Continuous Flexing)

4.9 in
Standards

NEC/(UL) Compliance

TC

UL AWM Style Compliance

AWM 20327

CSA AWM Compliance

AWM I/II A/B

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/96/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

MII Order #39 (China RoHS)

Yes

Suitability

Suitability - Non-Halogenated

No

Suitability - Oil Resistance

Yes - Oil Res II

Suitability - Sunlight Resistance

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

UL1685 UL Loading

CSA Flammability

FT4

IEEE Flammability

IEEE 1202

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

No

Related Part Numbers

Footnote

C - CRATE REEL PUT-UP.
History

Update and Revision

Revision Number: 0.382 Revision Date: 01-10-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length UPC
7106WS 003250 Orange Reel 250 ft 612825182047
7106WS 0031000 Orange Reel 1,000 ft 612825182030
7106WS 0035000 Orange Reel 5,000 ft 612825182054
