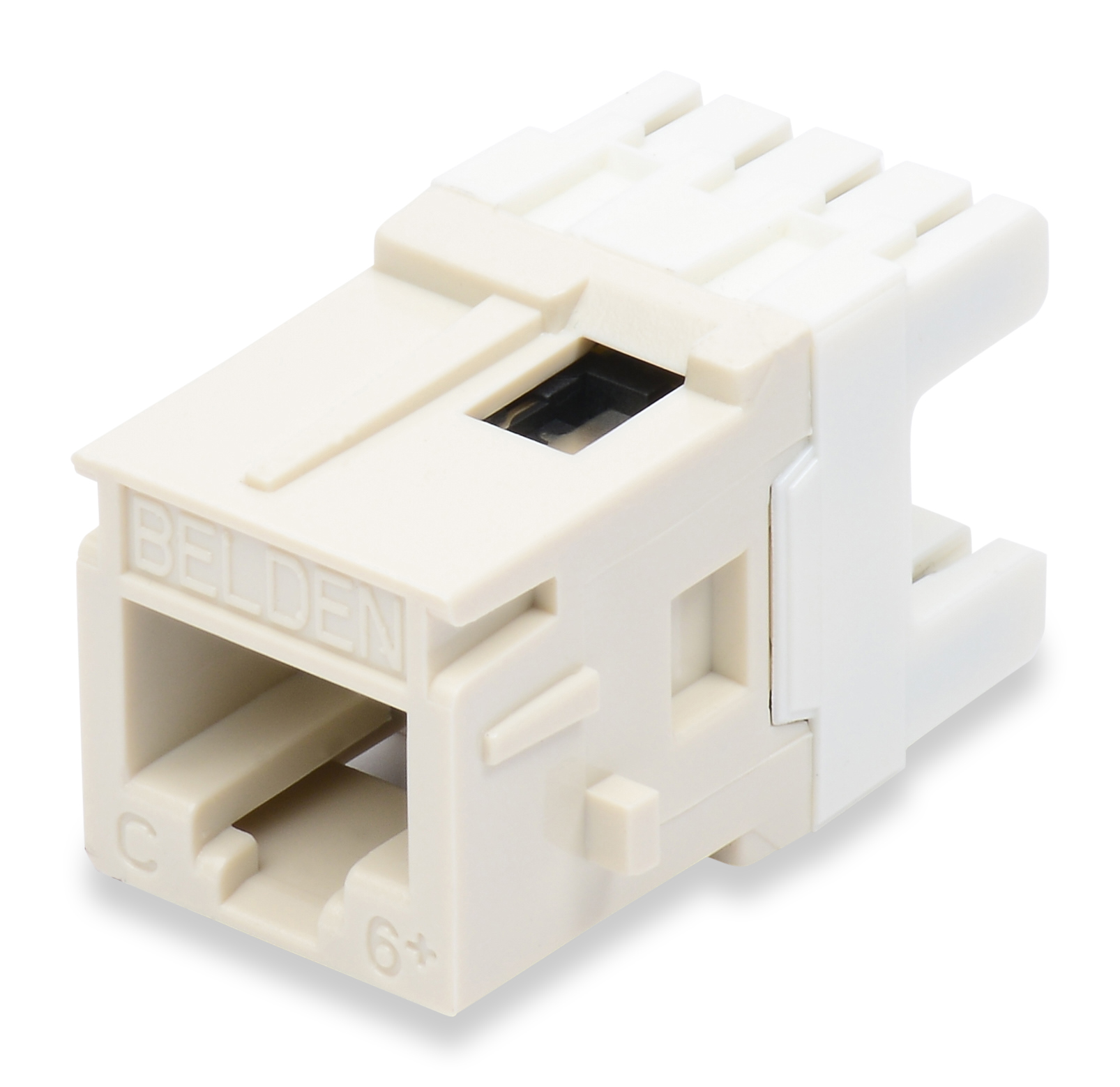

CAT6+ MDVO JACKS

CAT6+ Modular Jack, RJ45, MDVO Style

CAT6+ MDVO Jacks are available in several colors.

Regions Available: Global

Request Quote

Specifications

Report An Error

Suitable Applications	IBDN System 2400 and 4800, TIA Category 6+, ISO Class E, 1000 BASE-T

Overall Height	0.765 in
Overall Width	0.77 in
Depth	1.29 in
Wiring Scheme	T568A/B
Packaging	Individually packaged in a plastic bag. Standard pack of 50 units.
Weight	0.014 lbs

Materials

Description	Material	Type
Front Connection	Copper Alloy with 50 µ inch Gold over Nickel	Lead Frame
Rear Connection	Copper Alloy with Nickel Plating	IDC
Connector Body	Plastic - UL940V-0

Installation Temperature Range	-10°C to +60°C
Storage Temperature Range	-40°C to +70°C
Operating Temperature Range	-10°C to +60°C

Footprint/Type	MDVO
Tool Compatibility	Belden 110 Connecting Tool, MediaFlex Termination Station
Plug /Jack Compatibility	RJ45, RJ11
Termination Front Connection	Mated Connection
Termination Front Connection Durability	1,000 cycles
Termination Rear Connection	Gas Tight IDC Connection
Termination Rear Connection Durability	20 terminations
Connector/Hardware Retention	20 lbs
Plug/Connector Retention	11.250 lbs

Data Category	Category 6
TIA/EIA Compliance	Category 6 - TIA 568.2-D, ISO/IEC 11801:2002 Ed.2
Other Standards	FCC Part 68, Subpart F, IEC 60603-7
Third Party Performance Verification	ETL - Verified Category 6

Safety Listing	ACA, c(UL)us Listed

Related Parts	Compatible with Interface and MDVO Style Faceplates, Adapters, Boxes and Patch Panels

Included Parts	1 T-Bar +1 Dust Cap
Notes	Please see Installation Guide PX103329

Update and Revision	Revision Number: 0.376 Revision Date: 02-06-2024
