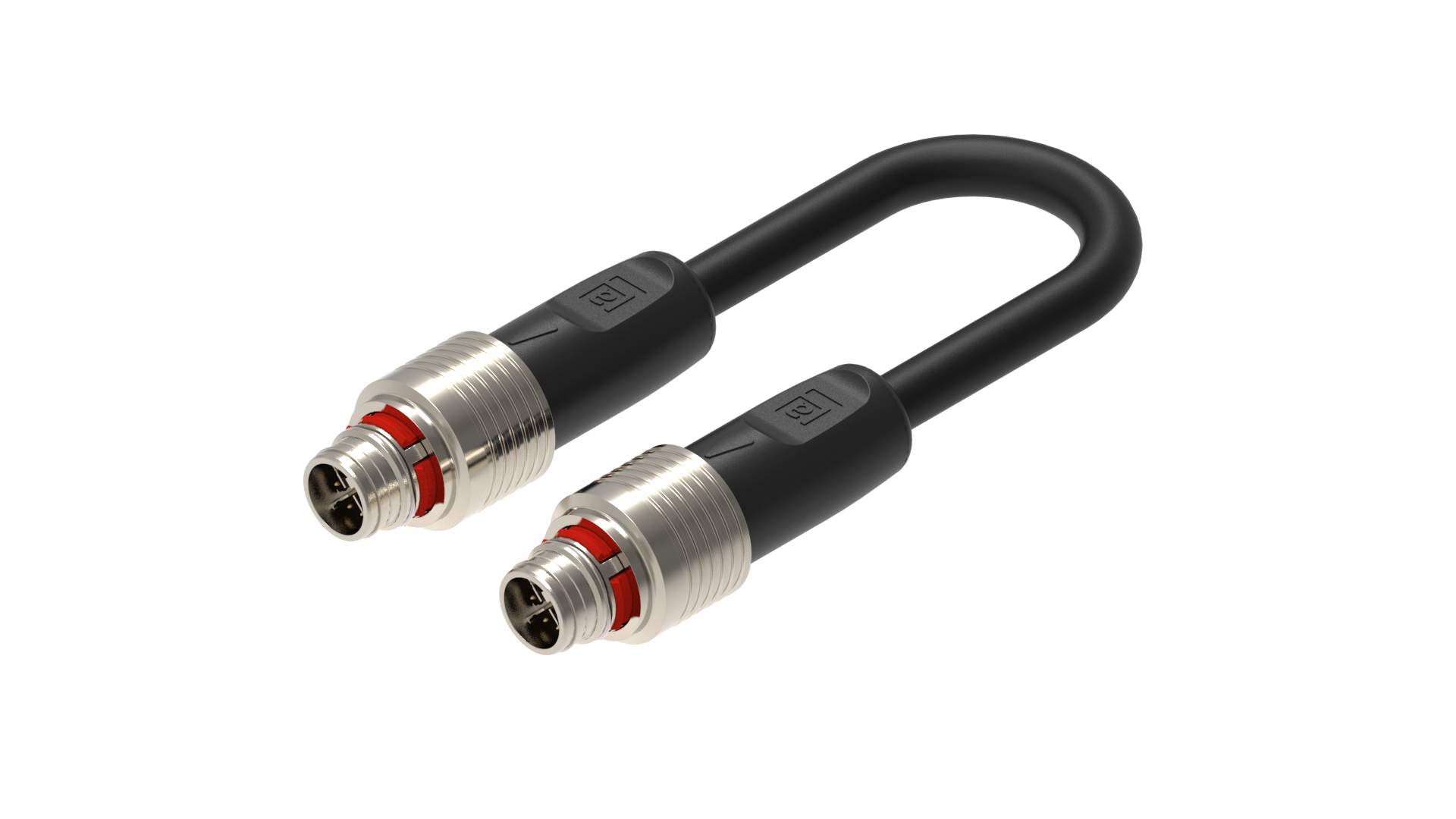

Product Number: PP12M-MSSV8X-PP12M-MSSV8X-0478
M12 cordset, Push Pull, Industrial CAT 7, PUR black cable, shielded, male, straight, X-coded, 8-Pin, 4x2x0.14mm², twisted pairs, PoE+
M12 cordset, Industrial CAT 7, Push Pull acc. to IEC 61076-2-010, PUR black cable, shielded, male to male, straight to straight, X-coded acc. to IEC 61076-2-109, 8-Pin, 4x2x0.14mm², twisted pairs, PoE+, 10GBASE-T, 50 V AC / 60 V DC, 0.5 A, - 40 °C - + 80 °C (operating temp.), IP65, IP67, Twisted pairs: white & blue, white & orange, white & green, white & brown, Halogen free acc. IEC 60754-2, Oil resistance acc. IEC 60811-2-1, cULus, UL1863
-
Availability:
EMEA | Global | Americas | Asia Pacific
-
Global inventory:
Available
Specifications
Face View Side 1
|
Product Family |
Data Connectors |
|---|---|
|
Connector Type |
Cordset, double ended |
|
Shielding |
Shielded |
|
Rated Voltage |
60 V |
|
Rated Voltage (UL) |
30 V AC/DC |
|
Rated Impulse Voltage |
0.8 kV |
|
Operating Voltage |
50 V AC / 60 V DC |
|
Rated Current* |
0.5 A |
|
Rated Current (UL)* |
0.5 A |
|
Data Transmission |
Gigabit Ethernet Cat7 |
|
Data Transmission Rate |
10 Gbit/s |
Technical Data Side 1
|
Product Sub Family |
M12 Standard push pull |
|---|---|
|
Type of Contact / Gender |
Male |
|
Connector Design |
Straight |
|
Attachment Type |
Snap Ring |
|
Number of Pins |
8 |
|
Coding |
X |
|
Contact Resistance |
≤ 10 mOhm |
|
Insulation Resistance |
˃ 10^9 Ohm |
|
Mating Cycles |
≤ 100 |
|
Ambient Temperature (Operation)* |
- 40 °C - + 85 °C |
|
Operating Temperature (UL) |
max. 80 °C |
|
Protection Degree / IP Rating** |
IP65, IP67 |
|
Design Standard |
IEC 61076-2-109/-010 |
|
Pollution Degree |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Overvoltage Category |
II acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Contact Base Material |
CuZn |
|
Contact Plating |
Cu/Au |
|
Contact Bearer Material |
PA |
|
Contact Bearer Color |
Black |
|
Flammability Class (Contact Bearer) |
UL 94 V-0 |
|
Molded Body Material |
PA |
|
Molded Body Color |
Black |
|
Flammability Class (Molded Body) |
UL 94 V-0 |
|
Attachment Material |
PA |
|
Shielding Material |
GD-Zn, nickel-plated |
|
Fastening Torque (Attachment) |
PushPull |
Cable Data
|
Cable Number |
478 |
|---|---|
|
Conductor Size |
4x2x0.14 mm² |
|
Number of Wires |
8 |
|
Minimal Bending Radius (Fixed Inst) |
˃ 5 x D |
|
Minimal Bending Radius (Flexible Inst) |
˃ 10 x D |
|
Cycles (Bending) |
˃ 200.000 |
|
Conductor material |
Cu |
|
Cable Jacket Material |
PUR |
|
Cable Jacket Color |
black |
|
Cable Diameter D |
ø 6.80 ± 0.30 mm |
|
Wire Insulation Material |
PE |
|
Insulated Wire Diameter |
ø 1.05 ± 0.05 mm |
|
Overall Shield (Cable) |
Cu-ETP1 tinned |
|
Foil shield |
Al-PT Foil |
|
Ambient Temperature (Fixed Installation) |
- 40 °C - + 80 °C |
|
Ambient Temperature (Flex Installation) |
0 °C - +50 °C |
|
UL Cable Type |
AWM: 21327 |
|
Flammability Class (Cable Jacket) |
FT-2 |
|
Core Colors |
Twisted pairs: white & blue, white & orange, white & green, white & brown |
Technical Data Side 2
|
Product Sub Family, Side 2 |
M12 Standard push pull |
|---|---|
|
Type of Contact / Gender, Side 2 |
Male |
|
Connector Design, Side 2 |
Straight |
|
Attachment Type, Side 2 |
Snap Ring |
|
Number of Pins, Side 2 |
8 |
|
Coding, Side 2 |
X |
|
Contact Resistance, Side 2 |
≤ 10 mOhm |
|
Insulation Resistance, Side 2 |
˃ 10^9 Ohm |
|
Mating Cycles, Side 2 |
≤ 100 |
|
Protection Degree / IP Rating, Side 2** |
IP65, IP67 |
|
Design Standard, Side 2 |
IEC 61076-2-109/-010 |
|
Pollution Degree, Side 2 |
3 acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Overvoltage Category, Side 2 |
II acc. to DIN EN 60664-1 (VDE 0110-1) |
|
Contact Base Material, Side 2 |
CuZn |
|
Contact Plating, Side 2 |
Cu/Au |
|
Contact Bearer Material, Side 2 |
PA |
|
Contact Bearer Color, Side 2 |
Black |
|
Flammability Class (Contact Bearer), Side 2 |
UL 94 V0 |
|
Molded Body Material, Side 2 |
PA |
|
Molded Body Color, Side 2 |
Black |
|
Flammability Class (Molded Body), Side 2 |
UL 94 V0 |
|
Attachment Material, Side 2 |
PA |
|
Shielding Material, Side 2 |
GD-Zn, nickel-plated |
|
Fastening Torque (Attachment), Side 2 |
PushPull |
Approvals
|
UL-File |
pending |
|---|---|
|
UL |
UL 2238; cULus (pending) |
Safety & Environmental Compliance
|
RoHS Compliant |
yes |
|---|
Resistances
|
Halogenfree |
IEC 60754-1 |
|---|---|
|
Oil Resistance |
IEC 60811-2-1 |
Notes
|
Protection Degree / IP Rating Note |
** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
|---|---|
|
Note Derating |
* Notice derating |
History
|
Update and Revision |
Revision Number: 0.13 Revision Date: 09-19-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.13 Revision Date: 09-19-2024 |
|---|
Part Numbers
| Item # | Item Description |
|---|---|
| 935300404 | PP12M-MSSV8X-PP12M-MSSV8X-0478-0500 |
| 935300403 | PP12M-MSSV8X-PP12M-MSSV8X-0478-0300 |
| 935300402 | PP12M-MSSV8X-PP12M-MSSV8X-0478-0200 |
