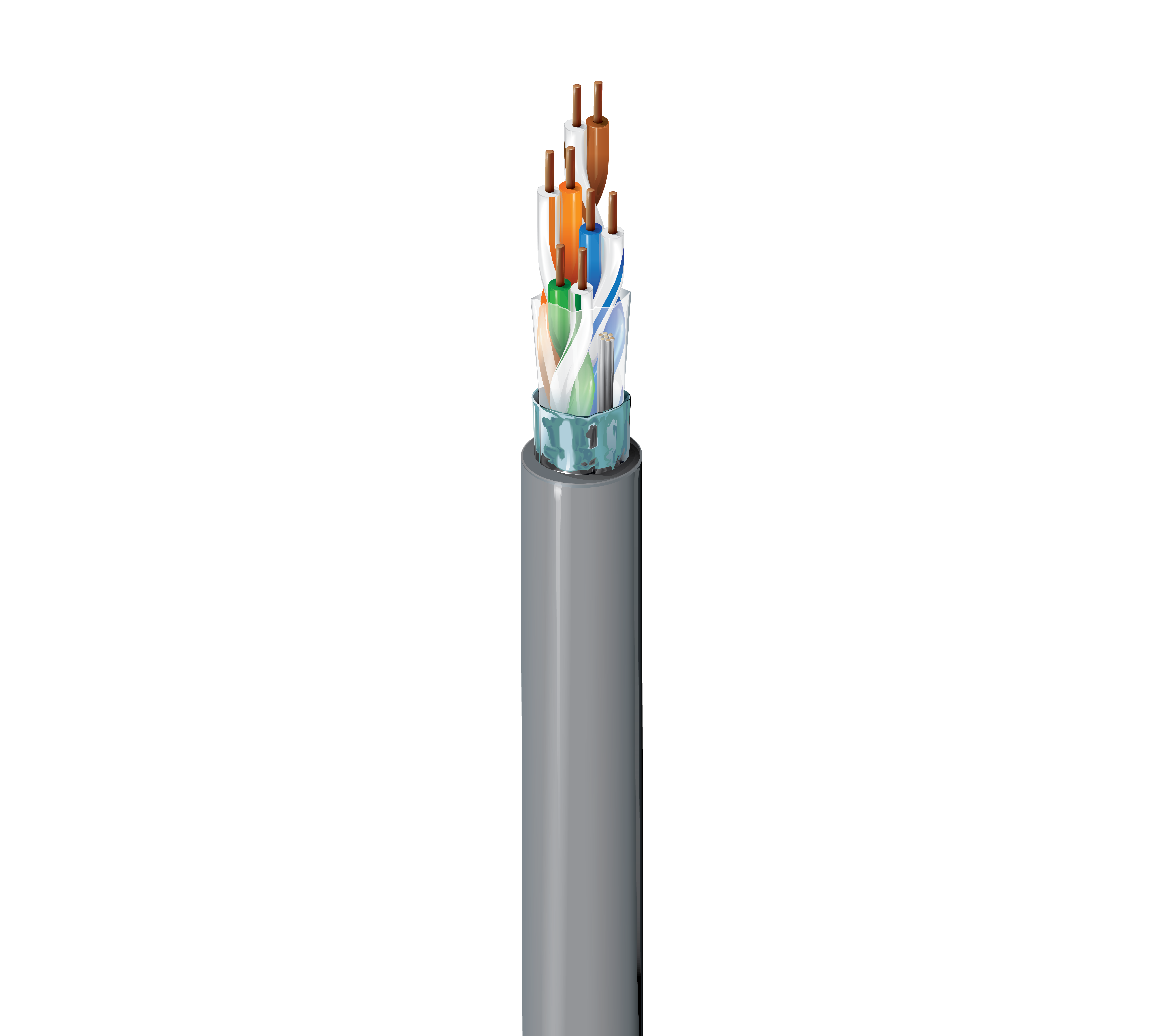

1624R

Category 5 Cable, 4 Pair, F/UTP, CMR

...
Category 5 Premise Horizontal Cable (100MHz), 4 Pair, 24 AWG Solid Bare Copper Conductors, F/UTP - Foil Shielded, Riser-CMR, PVC Jacket
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Premise Horizontal Cable, Ethernet 100BASE-TX, Ethernet 10BASE-T, PoE++, PoE+, PoE , Noisy Environments

Construction Details
Conductor
Size Stranding Material No. of Pairs
24 AWG Solid BC - Bare Copper 4
Insulation
Material Color Code
PO - Polyolefin White/Blue Stripe & Blue, White /Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
Outer Shield
Shield Type Material Coverage Drainwire Type
Tape Polyester + Bi-Laminate (Alum+Poly) 100% 24 AWG (7x32) TC
Outer Jacket
Material Nom. Diameter Ripcord
PVC - Polyvinyl Chloride 0.260 in (6.60 mm) No

Overall Cable Diameter (Nominal)

0.260 in (6.60 mm)

Electrical Characteristics
Electricals
Max. Conductor DCR
93.8 Ohm/km (28.6 Ohm/1000ft)
Delay
Max. Delay Max. Delay Skew Nom. Velocity of Prop.
538 ns/100m 45 ns/100m 67%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation) Min. NEXT [dB] Min. PSNEXT [dB] Min. SRL (Structural Return Loss) [dB] Max./Min. Fitted Impedance [Ohm]
1 2.0 dB/100m 62.2 62.3 23 100 ± 15
4 4.1 dB/100m 53.3 53.3 23 100 ± 15
8 5.8 dB/100m 48.8 48.8 23 100 ± 15
10 6.5 dB/100m 47.3 47.3 23 100 ± 15
16 8.2 dB/100m 44.3 44.3 23 100 ± 15
20 9.3 dB/100m 42.8 42.8 23 100 ± 15
25 10.4 dB/100m 41.3 41.3 22 100 ± 15
31.25 11.7 dB/100m 39.9 39.9 21.1 100 ± 15
62.5 17.0 dB/100m 35.4 35.4 18 100 ± 15
100 22.0 dB/100m 32.2 32.3 16 100 ± 15
Voltage
UL Voltage Rating
300 V (CMR)
Mechanical Characteristics
Temperature
Operating
-20°C To +75°C
Bend Radius
Stationary Min. Installation Min.
1 in (25 mm) 2.6 in (66 mm)

Max. Pull Tension

25 lbs (11 kg)

Bulk Cable Weight

30 lbs/1000ft

Standards and Compliance

Environmental Suitability

Riser, Indoor

Flammability / Reaction to Fire

UL 1666 Riser, FT4, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca; CPR UKCA Class: Eca

NEC / UL Compliance

Article 800, CMR

CEC / C(UL) Compliance

CMR

IEEE Compliance

IEEE 802.3bt Type 1, Type 2, Type 3

Data Category

Category 5

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Plenum Number

1624P

Product Notes

Notes

Electrical values are expected performance based on cable testing and representative performance within a typical Belden system. Shield is bonded to jacket inner wall for electrical stability. RJ-45 Compatible. Jacket sequentially marked at 2 ft. intervals. Third party verified to TIA/EIA-568-B.2, Category 5.

History

Update and Revision

Revision Number: 0.356 Revision Date: 05-31-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
1624R 0061000 Blue Reel 1,000 ft 612825119623 C Z
1624R 006A1000 Blue Reel-in-Box 1,000 ft 612825119616 C Z
1624R F2V1000 Gray Reel 1,000 ft 612825119517 C Z
1624R F2VA1000 Gray Reel-in-Box 1,000 ft 612825119500 C Z
1624R F2V1640 Gray Reel 1,640 ft 612825119524 Z
1624R 0051000 Green Reel 1,000 ft 612825119609 C Z
1624R 005A1000 Green Reel-in-Box 1,000 ft 612825119593 C Z
1624R 0031000 Orange Reel 1,000 ft 612825119562 C Z
1624R 003A1000 Orange Reel-in-Box 1,000 ft 612825119555 C Z
1624R B021000 Purple Reel 1,000 ft 612825119494 C Z
1624R B02A1000 Purple Reel-in-Box 1,000 ft 612825119487 C Z
1624R 0021000 Red Reel 1,000 ft 612825119548 C Z
1624R 002A1000 Red Reel-in-Box 1,000 ft 612825119531 C Z
1624R 0041000 Yellow Reel 1,000 ft 612825119586 C Z
1624R 004A1000 Yellow Reel-in-Box 1,000 ft 612825119579 C Z
