9397

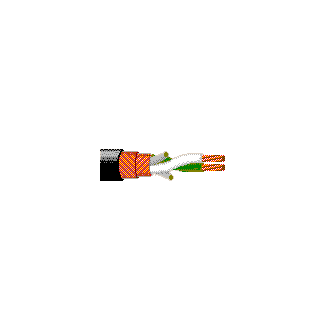

Microphone Cable, 2 Conductor 24 AWG, BC

...
24 AWG stranded (105x44) high-conductivity bare copper conductors, PVC insulation, double bare copper spiral shield (95% coverage), PVC jacket.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Ruggedized, deployable microphone for studio or live performance; Balanced analog audio

Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Conductors
24 105x44 BC - Bare Copper (High Conductivity) 0.024 in 2

Conductor Count

2

Insulation
Material Nominal Diameter Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.048 in 0.012 in
Outer Shield
Type Material Coverage [%]
Spiral Serve / Screen Bare Copper (BC) 95%
Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.176 in 0.031 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance
24.6 Ohm/1000ft 24.6 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Conductor Nom. Capacitance Conductor to Other Conductor to Shield
47.3 pF/ft 110 pF/ft
Inductance
Nominal Inductance
0.19 µH/ft
Impedance
Nominal Characteristic Impedance
47 Ohm
Current
Max. Recommended Current [A]
3.36 Amps per Conductor at 25ºC
Voltage
Non-UL Voltage Rating
300 V RMS
Temperature Range

Non-UL Temp Rating

80°C

Operating Temperature Range

-20°C To +80°C

Mechanical Characteristics

Bulk Cable Weight

22 lbs/1000ft

Max. Pull Tension

10 lbs

Min. Bend Radius/Minor Axis

1.75 in
Applicable Environmental and Other Programs

Environmental Space

Indoor (Not Riser or Plenum)

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/11/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

MII Order #39 (China RoHS)

Yes

Suitability

Suitability - Indoor

Yes

Plenum/Non-Plenum

Plenum (Y/N)

No

Related Part Numbers

Footnote

C - CRATE REEL PUT-UP.
History

Update and Revision

Revision Number: 0.382 Revision Date: 02-15-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length UPC
9397 B59500 Black, Matte Reel 500 ft 612825239949
9397 B591000 Black, Matte Reel 1,000 ft 612825239932
