1172A

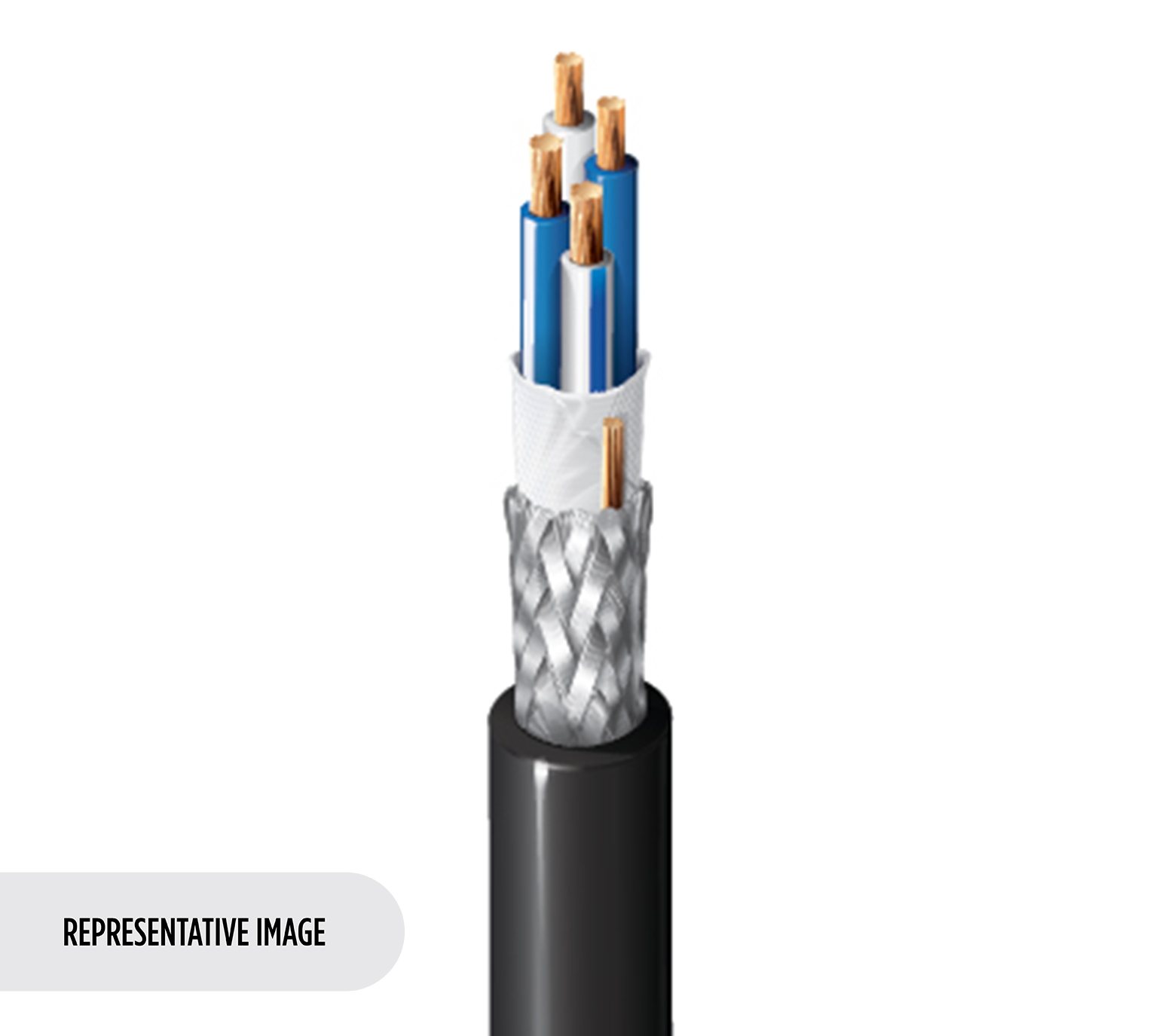

Microphone Cable, Star Quad, 4 C #26 Str BC, 95% TC French Braid, PVC Jkt, Flexible

...
Microphone Cable, Star Quad, 4 Conductor 26 AWG (30 x 40) High Conductivity Bare Copper, PE Insulation, 95% Tinned Copper French Braid Shield, PVC Jacket, Flexible
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Microphone, Low Noise for high-EMI environments; Line level balanced analog audio

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 4 26 AWG 30x40 BC - Bare Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PE - Polyethylene 0.013 in (0.33 mm) 0.045 in (1.1 mm) Blue, White, Blue/White Stripe, White/Blue Stripe
Outer Shield
Shield Type Material Coverage Drainwire Type Notes
French Braid Tinned Copper (TC) 95% 28 AWG (19x40) BC Paper tape under braid with drain over tape
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.031 in (0.79 mm) 0.190 in (4.83 mm)

Overall Cable Diameter (Nominal)

0.190 in (4.83 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Velocity of Prop. Max. Current
Conductor(s) 36 Ohm/1000ft 39.2 pF/ft (129 pF/m) 66% 2.32 Amps per conductor @ 30°C
Voltage
Voltage Rating
100 V
Mechanical Characteristics
Temperature
Operating
-20°C to +60°C
Bend Radius
Stationary Min. Installation Min.
1.9 in (48 mm) 1.9 in (48 mm)

Max. Pull Tension

37.5 lbs (17.0 kg)

Bulk Cable Weight

25 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor (Not Riser or Plenum), Indoor

European Directive Compliance

EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

Product Notes

Notes

Quad connection scheme: The two blue wires (or wires directly opposite one another) are connected together to form one conductor, and similarly the two white wires (or remaining wires) are connected together to form the second conductor.

History

Update and Revision

Revision Number: 0.523 Revision Date: 01-20-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
1172A B59500 Black, Matte Reel 500 ft 612825107774
1172A B591000 Black, Matte Reel 1,000 ft 612825107767 C
1172A B59N1000 Black, Matte Reel w/Small Barrel 1,000 ft 612825367055
1172A G7X1000 Blue, Matte Reel 1,000 ft 612825107804
1172A U901000 Gray, Matte Reel 1,000 ft 612825107835
1172A G7W1000 Green, Matte Reel 1,000 ft 612825107798
1172A G8C1000 Purple, Matte Reel 1,000 ft
1172A G7V1000 Red, Matte Reel 1,000 ft 612825107781
1172A G7Y1000 White, Matte Reel 1,000 ft 612825107811
1172A G8M1000 Yellow, Matte Reel 1,000 ft 612825107828
