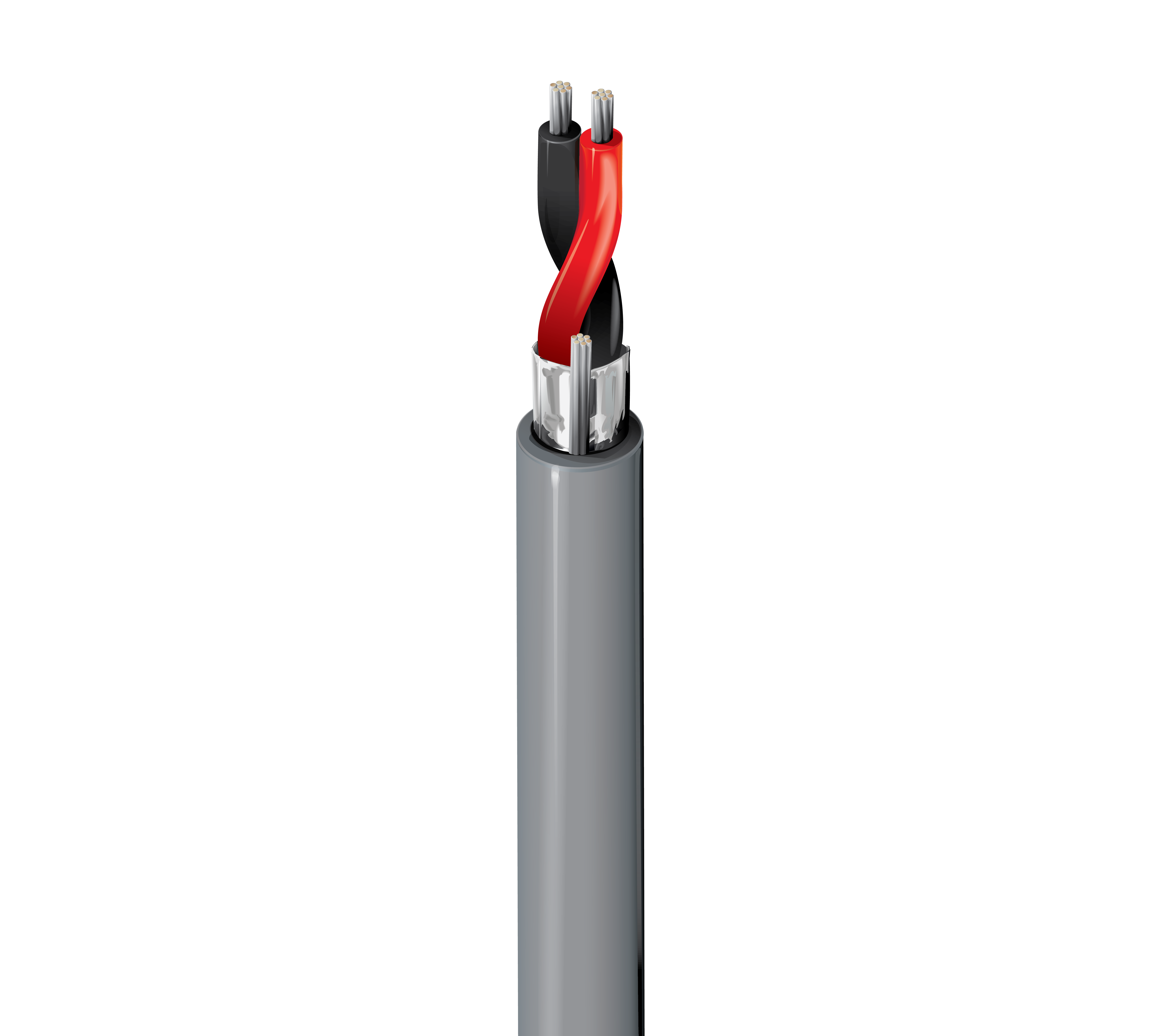

Product Number: 1800B
Digital Audio Cable, 1 Pr #24 Str TC, O/A Foil, PVC Jkt, CMR
Digital Audio Cable, 1 Pair 24 AWG (7 x 32) Tinned Copper, Datalene® Insulation, Overall Beldfoil® Shield, PVC Jacket, CMR
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Digital audio, Interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles |
|---|
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 1 | 24 AWG | 7x32 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code | Notes |
|---|---|---|---|---|---|
| Pair(s) | PE - Polyethylene (Foam) | 0.022 in (0.56 mm) | 0.068 in (1.7 mm) | Red & Black | HDPE |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7x32) TC |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.023 in (0.58 mm) | 0.185 in (4.70 mm) |
|
Table Notes |
Jacket and shield are bonded so both can be removed with automatic stripping equipment. |
|---|---|
|
Overall Cable Diameter (Nominal) |
0.185 in (4.70 mm) |
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|---|
| Pair(s) | 28.8 Ohm/1000ft | 12 pF/ft (39 pF/m) | 26 pF/ft (85 pF/m) | 110 Ohm | 76% | 3.8 Amps per conductor @ 30°C |
Voltage
| UL Voltage Rating |
|---|
| 300 V (CMR) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 60°C | -30°C to +60°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 1.9 in (48 mm) | 1.9 in (48 mm) |
|
Max. Pull Tension |
16.5 lbs (7.48 kg) |
|---|---|
|
Bulk Cable Weight |
16 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor (Not Riser or Plenum), Indoor |
|---|---|
|
Flammability / Reaction to Fire |
UL 1666 Riser, IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
NEC / UL Compliance |
Article 800, CMR |
|
CEC / C(UL) Compliance |
CMR |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Other Standard Compliance(s) |
AES/EBU |
|
Plenum Number |
1801B |
Product Notes
|
Notes |
For cross-connect use with 1803F (et al.) Digital Audio Snake Cables. |
|---|
History
|
Update and Revision |
Revision Number: 0.522 Revision Date: 02-15-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.522 Revision Date: 02-15-2024 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 1800B T5X5000 | Gray | Reel | 5,000 ft | 612825427995 | |
| 1800B T5X500 | Gray T5X | Reel | 500 ft | 612825122791 | C |
| 1800B T5X1000 | Gray T5X | Reel | 1,000 ft | 612825122784 | C |
| 1800B T5XU1000 | Gray T5X | UnReel | 1,000 ft | 612825122777 |
