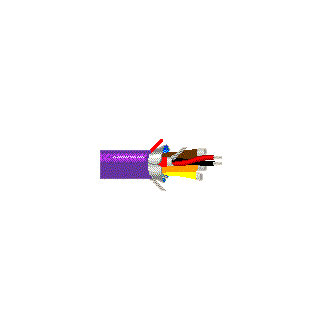

Audio Snake Cable, #26-4pr, TC, Indiv. Shielded, CM
|
Suitable Applications |
Multi-channel interconnect between audio equipment such as microphones, speakers, amplifiers, mixing consoles; Live events or studio sound; Analog audio |
|---|
| AWG | Stranding | Material | Nominal Diameter | No. of Pairs |
|---|---|---|---|---|
| 26 | 7x34 | TC - Tinned Copper | 0.019 in | 4 |
|
Conductor Count |
8 |
|---|---|
|
Total Number of Pairs |
4 |
| Material | Material Trade Name | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|---|
| PE - Polyethylene (Foam) | Datalene® | 0.054 in | 0.0175 in |
| Number | Color |
|---|---|
| 1 | Brown and Numbered 1 |
| 2 | Red and Numbered 2 |
| 3 | Orange and Numbered 3 |
| 4 | Yellow and Numbered 4 |
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire Diameter | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | TC - Tinned Copper | 0.019 in | 26 | Stranded |
|
Table Notes |
Indiv. Foil tapes bonded to inner jacket |
|---|
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.136 in | 0.014 in |
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire Diameter | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | TC - Tinned Copper | 0.019 in | 26 | Stranded |
| Material | Nominal Diameter | Nominal Wall Thickness | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.399 in | 0.034 in | Yes |
| Individual Pair Nominal Shield DCR | Nominal Conductor DCR | Nominal Conductor DCR Conductor Resistance |
|---|---|---|
| 25.5 Ohm/1000ft | 37.3 Ohm/1000ft | 37.3 Ohm/1000ft |
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield |
|---|---|
| 13 pF/ft | 25 pF/ft |
| Nominal Inductance |
|---|
| 0.25 µH/ft |
| Nominal Characteristic Impedance |
|---|
| 110 Ohm |
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 0.384 MHz | 0.84 dB/100ft |
| 0.7056 MHz | 1.14 dB/100ft |
| 0.768 MHz | 1.18 dB/100ft |
| 1.024 MHz | 1.34 dB/100ft |
| 1.4112 MHz | 1.5 dB/100ft |
| 1.536 MHz | 1.54 dB/100ft |
| 2.048 MHz | 1.69 dB/100ft |
| 2.8224 MHz | 1.86 dB/100ft |
| 3.072 MHz | 1.92 dB/100ft |
| 4.096 MHz | 2.14 dB/100ft |
| 5.6448 MHz | 2.4 dB/100ft |
| 6.144 MHz | 2.47 dB/100ft |
| 8.192 MHz | 2.75 dB/100ft |
| 11.2896 MHz | 3.09 dB/100ft |
| 12.288 MHz | 3.18 dB/100ft |
| 24.576 MHz | 4.2 dB/100ft |
| Nominal Velocity of Propagation (VP) [%] |
|---|
| 76% |
| Frequency [MHz] |
|---|
| 0.384 MHz |
| 0.7056 MHz |
| 0.768 MHz |
| 1.024 MHz |
| 1.4112 MHz |
| 1.536 MHz |
| 2.048 MHz |
| 2.8224 MHz |
| 3.072 MHz |
| 4.096 MHz |
| 5.6448 MHz |
| 6.144 MHz |
| 8.192 MHz |
| 11.2896 MHz |
| 12.288 MHz |
| 24.576 MHz |
|
Operating Temperature Range |
-30°C To +80°C |
|---|
|
Bulk Cable Weight |
52 lbs/1000ft |
|---|---|
|
Max. Pull Tension |
45 lbs |
|
Min. Bend Radius/Minor Axis |
4 in |
|
NEC/(UL) Compliance |
CM |
|---|---|
|
CEC/C(UL) Compliance |
CM |
|
CPR Euroclass |
Eca |
|
Environmental Space |
Indoor (Not Riser or Plenum) |
|---|---|
|
EU Directive 2000/53/EC (ELV) |
Yes |
|
EU Directive 2003/11/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
EU CE Mark |
Yes |
|
MII Order #39 (China RoHS) |
Yes |
|
Suitability - Indoor |
Yes |
|---|
|
UL Flammability |
UL1685 UL Loading |
|---|---|
|
CSA Flammability |
FT4 |
|
IEC Flammability |
IEC 60332-1-2 |
|
Plenum (Y/N) |
No |
|---|
|
Footnote |
C - CRATE REEL PUT-UP. |
|---|
|
Notes |
Pair jackets and shields are bonded so both strip simultaneously with automatic stripping equipment. Datalene® insulation features include low dielectric constant and a dissipation factor for high-speed, low-distortion data handling. Physical properties include good crush resistance and light weight. |
|---|
|
Update and Revision |
Revision Number: 0.449 Revision Date: 01-10-2024 |
|---|
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 7890A Z4B2000 | Violet | Reel | 2,000 ft | 612825190738 |
| 7890A Z4B500 | Violet Z4B | Reel | 500 ft | 612825190745 |
| 7890A Z4B1000 | Violet Z4B | Reel | 1,000 ft | 612825433897 |
