8417

Audio & Instrumentation, 1 Conductor 25 AWG, TC, O/A Foil, CM

...

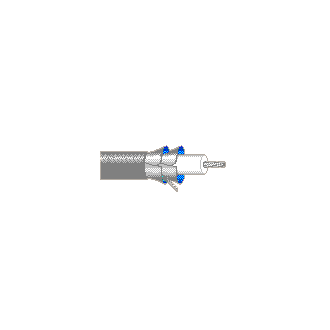

25 AWG stranded (7x33) Tinned Copper/Tinned Copper Covered Steel conductor, FPE insulation, double Beldfoil® shield (100% coverage), 26 AWG stranded TC drain wire, PVC jacket.

Regions Available: Global
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Audio Connecting Cable

Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Coax
25 7x33 TC+TCCS - Tinned Copper (High Conductivity) + Tinned Copper Covered Steel (High Conductivity) 0.021 in 1

Conductor Count

1

Insulation
Material Nominal Diameter Nominal Wall Thickness
PE - Polyethylene (Foam) 0.061 in 0.02 in
Outer Shield
Type Layer Material Material Trade Name Coverage [%] Drainwire Material Drainwire AWG Drainwire Construction n x D
Tape 1 Bi-Laminate (Alum+Poly) Beldfoil® 100% TC - Tinned Copper 26 7x34
Tape 2 Bi-Laminate (Alum+Poly) Beldfoil® 100%

Table Notes

Paper Tape

Outer Jacket
Material Nominal Diameter Nominal Wall Thickness
PVC - Polyvinyl Chloride 0.14 in 0.026 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR Outer Conductor DCR
45.5 Ohm/1000ft 20.2 Ohm/1000ft 20.2 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
29 pF/ft
Impedance
Nominal Characteristic Impedance
48 Ohm
Current
Max. Recommended Current [A]
1.5 Amps per Conductor at 25ºC
Voltage
Non-UL Voltage Rating
100 V RMS
Temperature Range

Non-UL Temp Rating

80°C

Operating Temperature Range

-20°C To +80°C

Mechanical Characteristics

Bulk Cable Weight

9 lbs/1000ft

Max. Pull Tension

9.5 lbs

Min Bend Radius (Overall)

1.5 in

Min. Bend Radius/Minor Axis

1.5 in
Standards

CPR Euroclass

Eca

Applicable Environmental and Other Programs

Environmental Space

Indoor (Not Riser or Plenum)

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/96/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

MII Order #39 (China RoHS)

Yes

Suitability

Suitability - Indoor

Yes

Plenum/Non-Plenum

Plenum (Y/N)

No

Product Notes

Notes

Outer Shield Separator Material: Paper Tape

History

Update and Revision

Revision Number: 0.390 Revision Date: 02-03-2025

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length UPC
8417 060250 Gray Reel 250 ft 612825206484
