Product Number: BE46204
4 PAIR AES/EBU, 26AWG, ISTP, FLEX, LSZH, STAGE
4 PAIR AES/EBU, 26AWG/0.14mm², ISTP, FLEX, LSZH, STAGE
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Digital multi-modulation cable used in professional studios; For the transmission of analogue and digital audio signals; Designed to meet the requirements of the AES/EBU specification; The cable is very flexible and has a small outer diameter for use in applications where space is limited |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material | Cross Section | Construction n x D |
|---|---|---|---|---|
| 26 | 7x34 | TC - Tinned Copper | 0.14 mm² | 7x0.16 mm |
|
Conductor Count |
8 |
|---|---|
|
Total Number of Pairs |
4 |
Insulation
| Type | Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|---|
| Insulation | PE - Polyethylene (Foam) | 1.1 mm | 0.03 mm |
Color Chart
| Number | Color |
|---|---|
| Pair 1 t/m 4 | White & Blue |
Inner Shield
| Type | Material | Nominal Diameter | Min. Coverage [%] |
|---|---|---|---|
| Spiral Serve / Screen | Tinned Copper (TC) | 2.40 mm | 90% |
Inner Jacket
| Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|
| Nylon | 2.8 mm | 0.1 mm |
Outer Shield
| Type | Material | Nominal Diameter | Min. Coverage [%] |
|---|---|---|---|
| Braid | Tinned Copper (TC) | 7 mm | 90% |
Outer Jacket
| Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 9 mm | 0.4 mm |

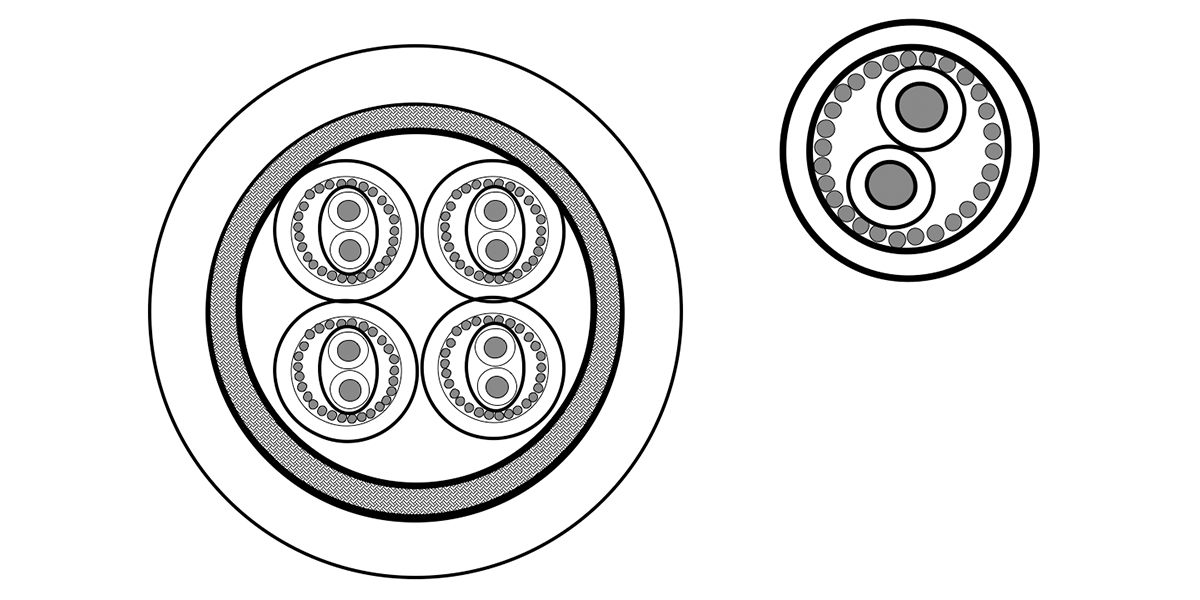

Construction and Dimensions
Cabling
| Description |
|---|
| 4 pairs covered with a non-woven separating foil |
Electrical Characteristics
Conductor DCR
| Max. Conductor DCR |
|---|
| 130 Ohm/km |
Capacitance
| Nom. Capacitance Conductor to Conductor |
|---|
| 50 pF/m |
Impedance
| Frequency [MHz] | Nominal Characteristic Impedance | Nominal Characteristic Tolerance |
|---|---|---|
| 0.1 - 6 | 110 Ohm | +/- 15 Ohm |
High Frequency (Nominal/Typical)
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 1 MHz | 2.3 dB/100m |
| 6 MHz | 9.5 dB/100m |
| 10 MHz | 16 dB/100m |
Delay
| Nominal Velocity of Propagation (VP) [%] |
|---|
| 60% |
Temperature Range
|
Other Temp Range |
-25 to +70 °C |
|---|
Mechanical Characteristics
|
Min. Bend Radius During Installation |
90 mm |
|---|---|
|
Min. Bend Radius During Operation |
135 mm |
Applicable Environmental and Other Programs
|
Environmental Space |
Indoor |
|---|
History
|
Update and Revision |
Revision Number: 0.161 Revision Date: 01-15-2024 |
|---|
Information
|
Update and Revision |
Revision Number: 0.161 Revision Date: 01-15-2024 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| BE46204.01500 | Black | Reel | 500 m | 8719605171894 |
