8403

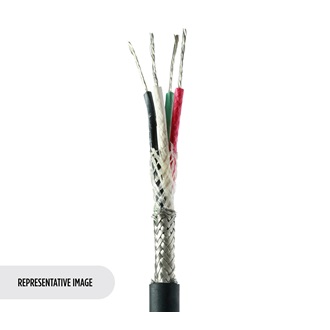

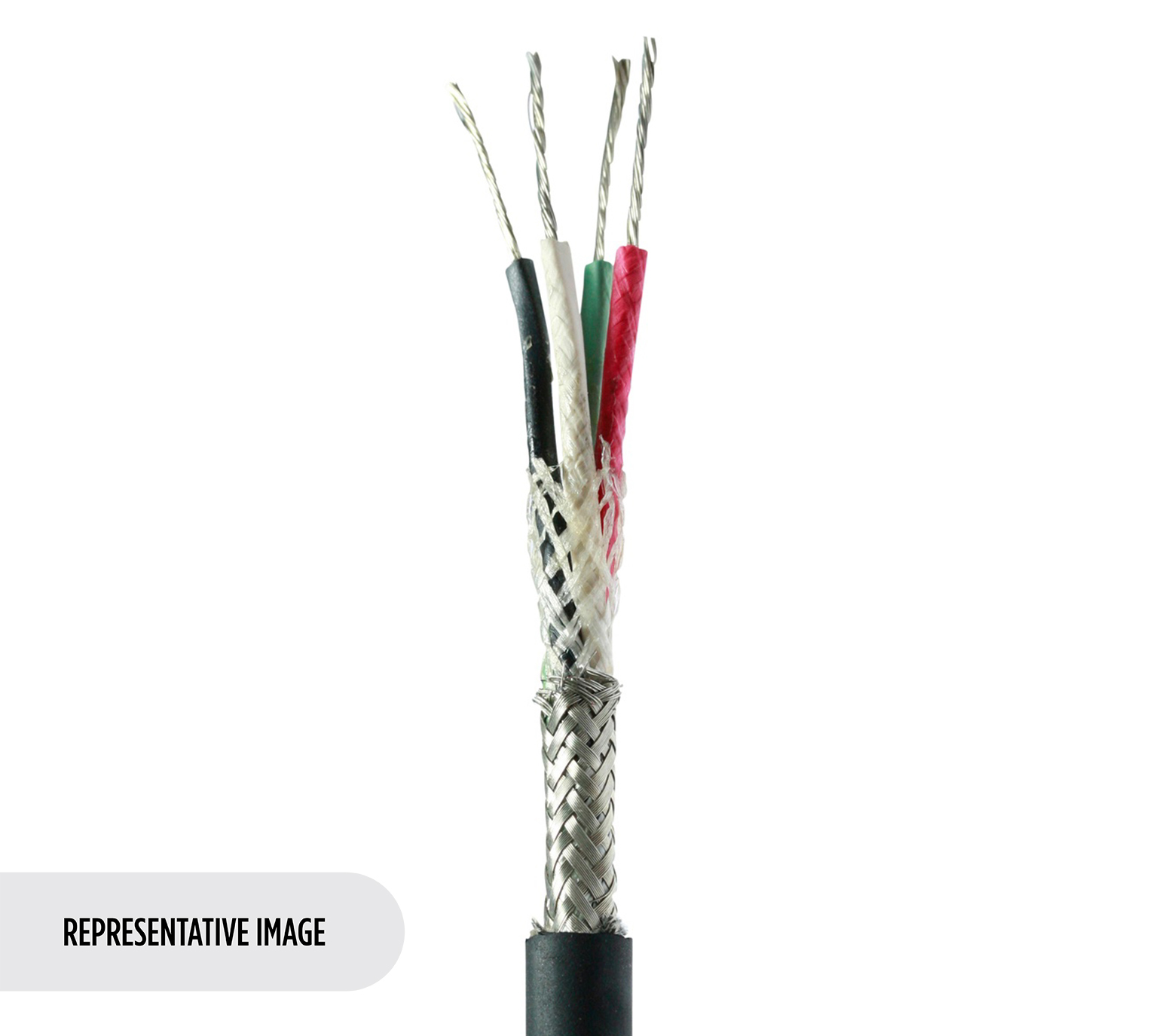

Microphone Cable, 3 C #20 Str TC, Rayon & 90% TC Braid, PVC Jkt

...
Microphone Cable, 3 Conductor 20 AWG (19 x 32) Tinned Copper (High conductivity), PE Insulation, Rayon Braid, 90% Tinned Copper Braid Shield, PVC Jacket
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Low frequency microphone or musical instruments; Balanced analog audio

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Conductor(s) 3 20 AWG 19x32 TC - Tinned Copper (High Conductivity)
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code
Conductor(s) PE - Polyethylene 0.016 in (0.41 mm) 0.069 in (1.8 mm) Clear, Black, Red
Outer Shield
Shield Type Material Coverage
Braid Rayon® 90%
Braid Tinned Copper (TC) 90%
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.033 in (0.84 mm) 0.244 in (6.20 mm)

Overall Cable Diameter (Nominal)

0.244 in (6.20 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Max. Current
Conductor(s) 10.2 Ohm/1000ft 25 pF/ft (82 pF/m) 45 pF/ft (150 pF/m) 3.1 Amps per conductor @ 25°C
Voltage
Voltage Rating
600 V
Mechanical Characteristics
Temperature
Operating
-20°C to +80°C
Bend Radius
Stationary Min. Installation Min.
2.4 in (61 mm) 2.4 in (61 mm)

Max. Pull Tension

111 lbs (50.3 kg)

Bulk Cable Weight

41 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor (Not Riser or Plenum), Indoor

Flammability / Reaction to Fire

VW-1

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.464 Revision Date: 01-20-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
8403 060500 Chrome Reel 500 ft 612825206170 C
8403 0601000 Chrome Reel 1,000 ft 612825206156 C
