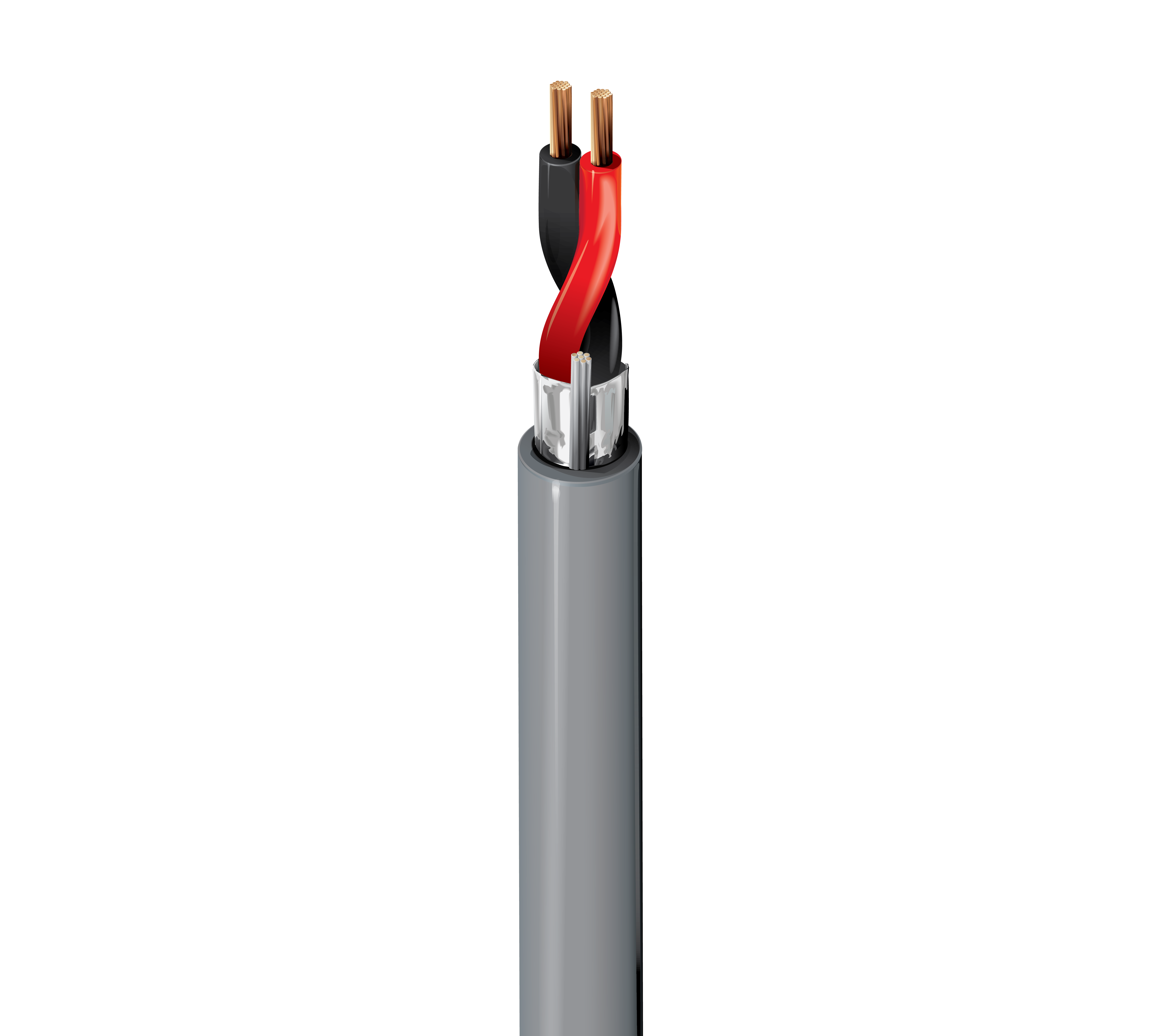

Security & Sound, 2 Conductor 16 AWG, BC, Shielded, CMR
|
Suitable Applications |
Security System, Intercom/PA, Audio/Speaker, Noisy Environment |
|---|
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 2 | 16 AWG | 19x29 | BC - Bare Copper |
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | PP - Polypropylene | 0.008 in (0.20 mm) | 0.073 in (1.9 mm) | Black, Red |
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7x32) TC |
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.017 in (0.43 mm) | 0.184 in (4.67 mm) | Yes |
|
Overall Cable Diameter (Nominal) |
0.184 in (4.67 mm) |
|---|
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Max. Current |
|---|---|---|---|---|
| Conductor(s) | 4 Ohm/1000ft | 58 pF/ft (190 pF/m) | 114 pF/ft (374 pF/m) | 6.25 Amps per conductor @ 25°C |
| UL Voltage Rating |
|---|
| 300 V (CMR) |
| UL Temperature | Operating |
|---|---|
| 75°C | -20°C to +75°C |
| Stationary Min. | Installation Min. |
|---|---|
| 1.9 in (48 mm) | 1.9 in (48 mm) |
|
Max. Pull Tension |
85.5 lbs (38.8 kg) |
|---|---|
|
Bulk Cable Weight |
24 lbs/1000ft |
|
Environmental Suitability |
Indoor - Riser, Indoor |
|---|---|
|
Flammability / Reaction to Fire |
UL 1666 Riser, FT4, IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
NEC / UL Compliance |
Article 800, CMR |
|
CEC / C(UL) Compliance |
CMG |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Plenum Number |
6200FE |
|
Update and Revision |
Revision Number: 0.513 Revision Date: 02-15-2024 |
|---|
| Item # | Color | Putup Type | Length | UPC/EAN | Footnote |
|---|---|---|---|---|---|
| 5200FE 0101000 | Black | Reel | 1,000 ft | 612825446002 | |
| 5200FE 010Z1000 | Black | ReelTuff Box | 1,000 ft | 612825157335 | |
| 5200FE 0061000 | Blue, Light | Reel | 1,000 ft | 612825350446 | |
| 5200FE.00152 | Chrome | Reel | 152 m | 8719605007940 | |
| 5200FE.00305 | Chrome | Reel | 305 m | 8719605007964 | |
| 5200FE.00U305 | Gray | Reel | 305 m | 8719605007971 | |
| 5200FE 008500 | Gray | Reel | 500 ft | 612825157274 | C |
| 5200FE 008U500 | Gray | UnReel | 500 ft | 612825423485 | |
| 5200FE 0081000 | Gray | Reel | 1,000 ft | 612825157304 | C |
| 5200FE 008U1000 | Gray | UnReel | 1,000 ft | 612825157281 | |
| 5200FE 008Z1000 | Gray | ReelTuff Box | 1,000 ft | 612825350453 | |
| 5200FE.001500 | Gray | Reel | 1,500 m | 8719605007933 | |
| 5200FE.001525 | Gray | Reel | 1,525 m | 8719605007957 | |
| 5200FE 0051000 | Green, Dark | Reel | 1,000 ft | 612825350439 | |
| 5200FE 0031000 | Orange | Reel | 1,000 ft | 612825350415 | |
| 5200FE 0021000 | Red | Reel | 1,000 ft | 612825423478 | |
| 5200FE 002Z1000 | Red | ReelTuff Box | 1,000 ft | 612825350408 | |
| 5200FE 0071000 | Violet | Reel | 1,000 ft | 612825157298 | |
| 5200FE 009U1000 | White | UnReel | 1,000 ft | 612825423492 | |
| 5200FE 0091000 | White | Reel | 1,000 ft | 612825157311 | |
| 5200FE 009Z1000 | White | ReelTuff Box | 1,000 ft | 612825350460 | |
| 5200FE 0041000 | Yellow | Reel | 1,000 ft | 612825350422 |
