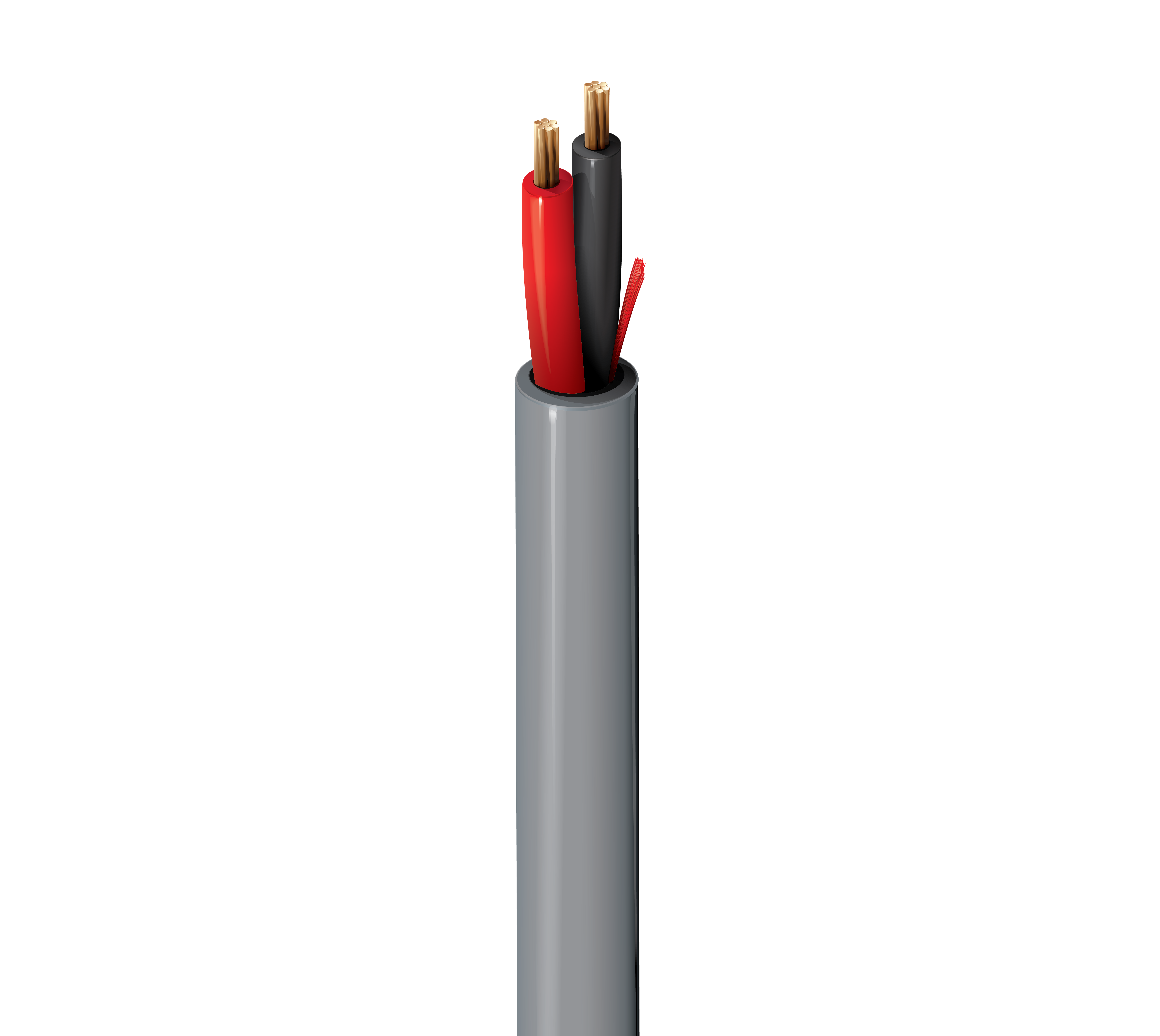

Security & Sound, 2 Conductor 18 AWG, BC, CMR
|
Suitable Applications |
Monitor/Detection, Control Circuits, Initiating Circuits, Notification Circuits |
|---|
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 2 | 18 AWG | 7x26 | BC - Bare Copper |
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | PO - Polyolefin | 0.009 in (0.23 mm) | 0.062 in (1.6 mm) | Black, Red |
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.017 in (0.43 mm) | 0.158 in (4.01 mm) | Yes |
|
Overall Cable Diameter (Nominal) |
0.158 in (4.01 mm) |
|---|
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Max. Current |
|---|---|---|---|
| Conductor(s) | 6.5 Ohm/1000ft | 21.5 pF/ft (70.5 pF/m) | 5 Amps per conductor @ 25°C |
| UL Voltage Rating |
|---|
| 300 V (CMR) |
| UL Temperature | Operating |
|---|---|
| 75°C | -20°C to +75°C |
| Stationary Min. | Installation Min. |
|---|---|
| 1.6 in (41 mm) | 1.6 in (41 mm) |
|
Max. Pull Tension |
45 lbs (20 kg) |
|---|---|
|
Bulk Cable Weight |
15 lbs/1000ft |
|
Environmental Suitability |
Indoor - Riser, Indoor |
|---|---|
|
Flammability / Reaction to Fire |
UL 1666 Riser, FT4, IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca; CPR UKCA Class: Eca |
|
NEC / UL Compliance |
Article 800, CMR |
|
CEC / C(UL) Compliance |
CMG |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Plenum Number |
6300UE |
|
Update and Revision |
Revision Number: 0.510 Revision Date: 02-15-2024 |
|---|
| Item # | Color | Putup Type | Length | UPC/EAN | Footnote |
|---|---|---|---|---|---|
| 5300UE 0101000 | Black | Reel | 1,000 ft | 612825159162 | C |
| 5300UE 010U1000 | Black | UnReel | 1,000 ft | 612825421511 | |
| 5300UE 010Z1000 | Black | ReelTuff Box | 1,000 ft | 612825159254 | |
| 5300UE 0061000 | Blue, Light | Reel | 1,000 ft | 612825350644 | |
| 5300UE 001U1000 | Brown | UnReel | 1,000 ft | 612825421450 | |
| 5300UE 001Z1000 | Brown | ReelTuff Box | 1,000 ft | 612825350682 | |
| 5300UE.00152 | Chrome | Reel | 152 m | 8719605008176 | |
| 5300UE.00305 | Chrome | Reel | 305 m | 8719605008183 | |
| 5300UE 008500 | Gray | Reel | 500 ft | 612825159117 | |
| 5300UE 008C500 | Gray | Coil | 500 ft | 612825336761 | |
| 5300UE 008U500 | Gray | UnReel | 500 ft | 612825421498 | |
| 5300UE 0081000 | Gray | Reel | 1,000 ft | 612825159148 | C |
| 5300UE 008U1000 | Gray | UnReel | 1,000 ft | 612825159124 | |
| 5300UE 008Z1000 | Gray | ReelTuff Box | 1,000 ft | 612825159155 | |
| 5300UE 005Z1000 | Green | ReelTuff Box | 1,000 ft | 612825350637 | |
| 5300UE 0051000 | Green, Dark | Reel | 1,000 ft | 612825421474 | |
| 5300UE 0021000 | Red | Reel | 1,000 ft | 612825421467 | |
| 5300UE 002Z1000 | Red | ReelTuff Box | 1,000 ft | 612825350552 | |
| 5300UE 0071000 | Violet | Reel | 1,000 ft | 612825421481 | |
| 5300UE 007Z1000 | Violet | ReelTuff Box | 1,000 ft | 612825159131 | |
| 5300UE 0091000 | White | Reel | 1,000 ft | 612825336778 | C |
| 5300UE 009U1000 | White | UnReel | 1,000 ft | 612825421504 | |
| 5300UE 009Z1000 | White | ReelTuff Box | 1,000 ft | 612825159179 | |
| 5300UE 0041000 | Yellow | Reel | 1,000 ft | 612825350590 |
