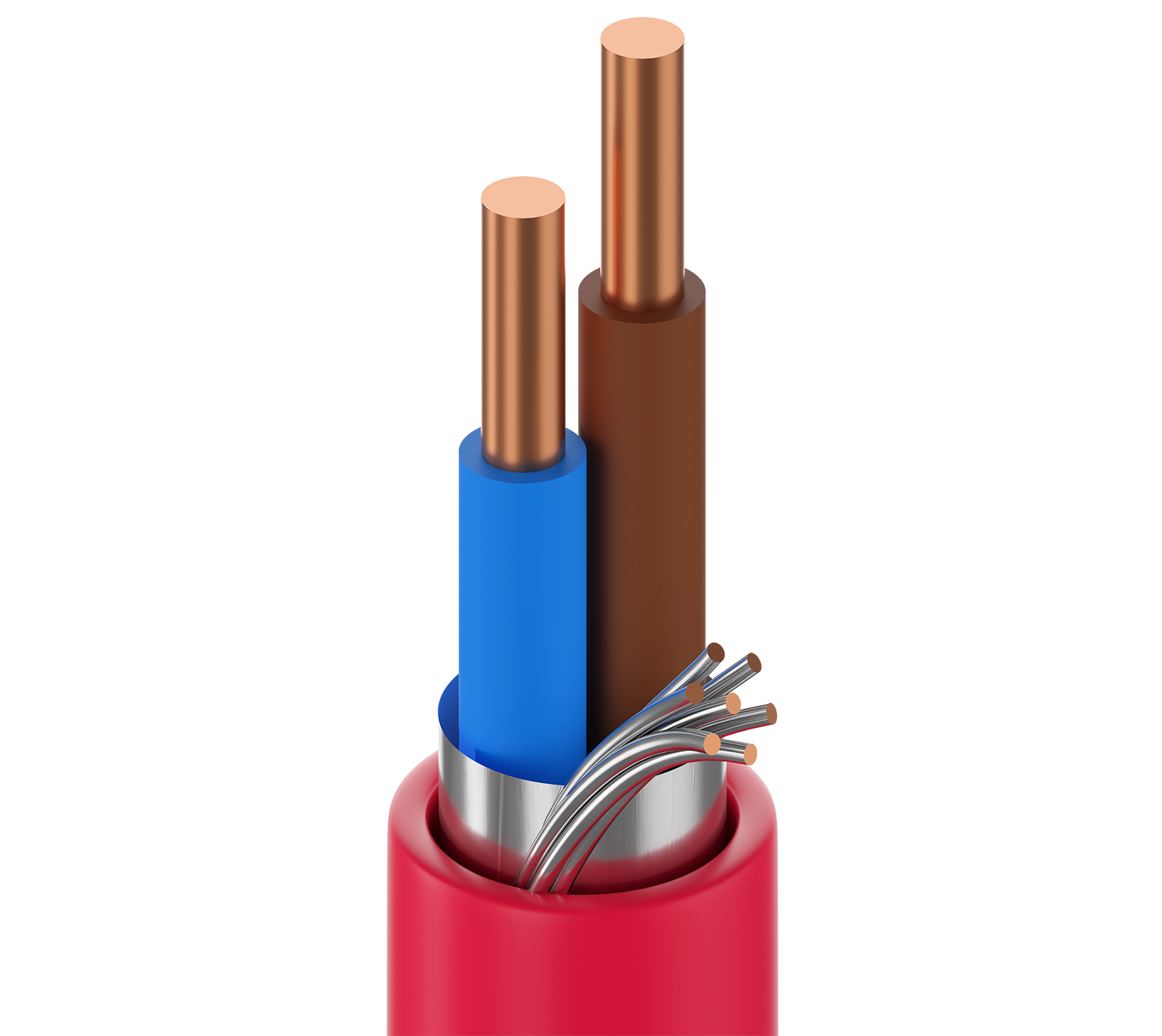

79001FS

SAFE-T-Line® Red 2 x 1.5 mm2 LPCB

...
Safe-T-Line 2 x 1.5 mm2 Fire resistant LPCB approved Multi-conductor, BS 6387 CWZ, EN 50200 PH120, EN60331-2 , Shielded, Silicone Rubber insulation, Low Smoke Zero Halogen Jacket

Regions Available: Global
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Circuit integrity, Intercom/PA Systems, Sound/Audio Systems, Control Systems

Construction Details
Conductor
Size Stranding Material
1.5 mm² Solid BC - Bare Copper
Insulation
Material Color Code Notes
Silicone Rubber Brown, Blue BS7655 EI2
Outer Shield
Shield Type Material Coverage Notes
Tape Bi-Laminate (Alum+Poly) 100% Drainwire 0.8mm tinned copper

Table Notes

Tape bonded to sheath

Outer Jacket
Material Nom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant) 7.85 mm (0.309 in)

Table Notes

COO printed on cable jacket

Overall Cable Diameter (Nominal)

7.85 mm (0.309 in)

Electrical Characteristics
Electricals
Nom. Conductor DCR Max. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield)
12.1 Ohm/km (3.69 Ohm/1000ft) 12.1 Ohm/km (3.69 Ohm/1000ft) 70 pF/m (21 pF/ft) 130 pF/m (40 pF/ft)
Voltage
Voltage Rating
300/500 V
Mechanical Characteristics
Temperature
Operating Installation Storage
-40°C To +90°C 0°C To +70°C -40°C To +90°C
Bend Radius
Installation Min.
47 mm (1.9 in)
Standards and Compliance

Flammability / Reaction to Fire

IEC 60332-1-2, IEC 60332-3-24, IEC 60332-3-25, IEC 60331-2, EN50200 PH30, PH60,PH120. EN50200 Annex E30, BS6387:2013 CWZ

ISO/IEC Compliance

IEC 61034-2 - Smoke Density Min Transmittance = 60%

CENELEC Compliance

EN 60228

European Halogen Free Standards

IEC 60754-1 - Halogen Amount = IEC 60754-1

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2)

Product Notes

Notes

BS6387 CWZ: C- Fire @ 950°C - 180min, W - Fire & water @ 650°C - 15 + 15 min.,Z - Fire & mechanical shocks @ 950°C -15 min. Country of Origin printed on the jacket

History

Update and Revision

Revision Number: 0.127 Revision Date: 12-05-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length EAN
79001FS.00100 Red Reel 100 m 8719605164018
79001FS.00500 Red Reel 500 m 8719605164254
79001FS.01100 White Reel 100 m 8719605207913
79001FS.01500 White Reel 500 m 8719605164629
