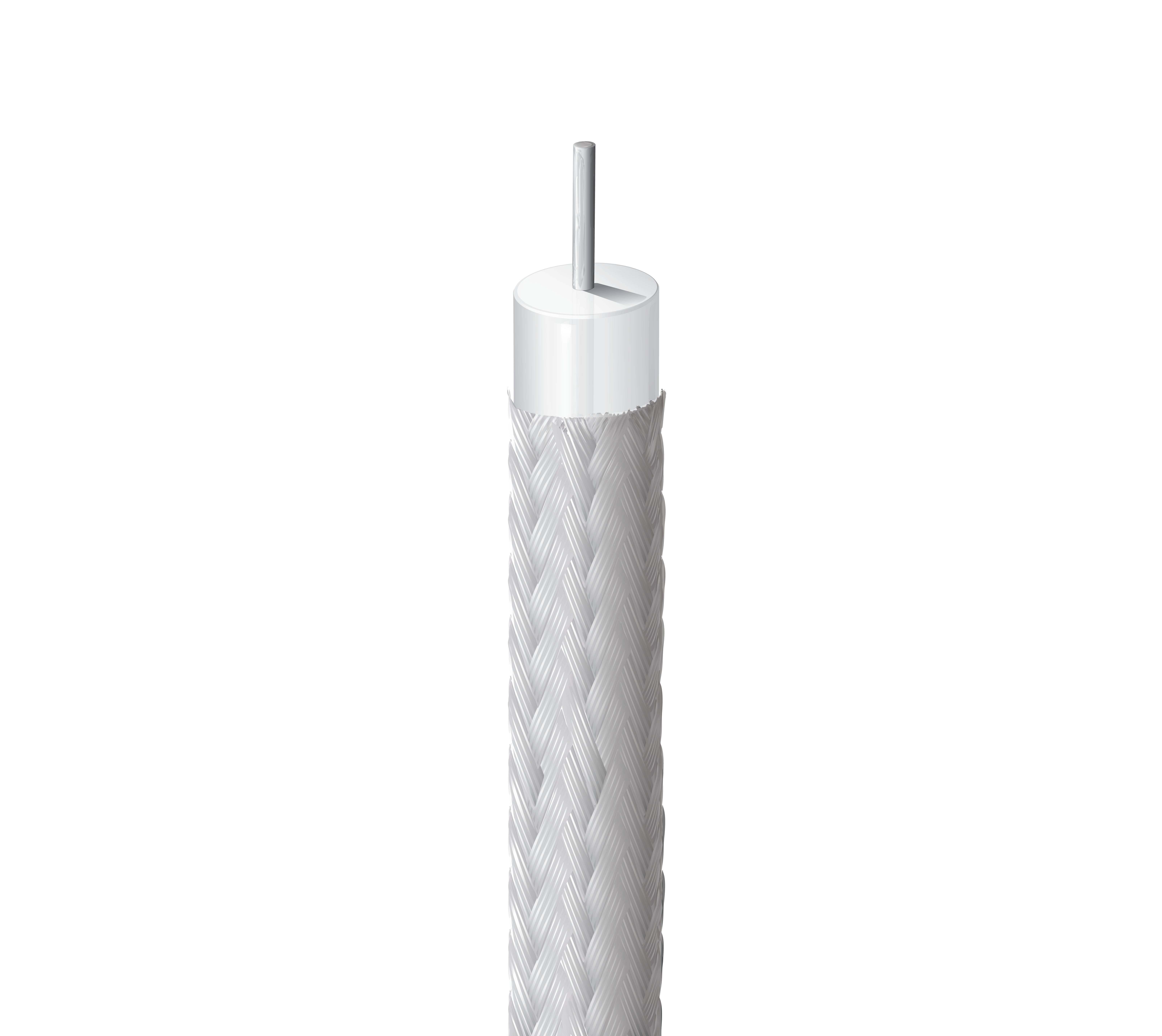

1672A

Conformable Coax, 75 Ohm, 29 AWG Solid SCCS, Copper-Tin Composite Shield, Unjacketed

...
Conformable Coax, 75 Ohm, 29 AWG Solid Silvered Copper Covered Steel Conductor, PTFE Insulation, Copper Tape + 100% Tin-Filled Composite Braid Shield , Unjacketed
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Microwave and other high frequency applications, Interconnect RF equipment, Radar equipment, Military communications

Construction Details
Conductor
Size Stranding Nom. Diameter Material
29 AWG Solid 0.0114 in SCCS - Silvered Copper Covered Steel
Insulation
Material Nom. Insulation Diameter Color Code
PTFE - Polytetrafluoroethylene 0.062 in (1.6 mm) White
Outer Shield
Layer Outer Shield Type Material Coverage Notes
1 Tape Bare Copper (BC) 100%
2 Braid Tinned Copper (TC + Tin Filled) 100% Diameter: 0.085 inch
Outer Jacket
Material
No Jacket

Overall Cable Diameter (Nominal)

0.087 in (2.2 mm)

Electrical Characteristics
Return Loss
Frequency Min. Return Loss
10 - 1000 MHz 25 dB
Attenuation
Frequency Nom. Attenuation
1 MHz 1.6 dB/100ft
10 MHz 1.8 dB/100ft
50 MHz 4.1 dB/100ft
100 MHz 6.5 dB/100ft
200 MHz 9 dB/100ft
400 MHz 12.8 dB/100ft
700 MHz 18 dB/100ft
1000 MHz 22.1 dB/100ft
Power Rating
Frequency Max. Power Rating
1 MHz 520 W
10 MHz 295 W
50 MHz 195 W
100 MHz 160 W
200 MHz 140 W
400 MHz 130 W
700 MHz 127 W
1,000 MHz 125 W
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
205 Ohm/1000ft 10 Ohm/1000ft (33 Ohm/km) 19.5 pF/ft (64.0 pF/m) 75 Ohm 70%
Voltage
UL Voltage Rating Voltage Rating
30 V (UL AWM Style 10245) 1500 V
Mechanical Characteristics
Temperature
UL Temperature Operating
105°C -70°C to +200°C
Bend Radius
Installation Min.
0.125 in (3.18 mm)

Max. Pull Tension

20 lbs (9.1 kg)

Bulk Cable Weight

12 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor (Not Riser or Plenum), Indoor, Outdoor

Sustainability

CA Prop 65

Flammability / Reaction to Fire

UL 1581 Horizontal Wire

AWM Compliance

AWM 10245

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.470 Revision Date: 04-29-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
1672A TIN500 Tin Reel 500 ft 612825120353 V
1672A TIN1000 Tin Reel 1,000 ft 612825120346 V
