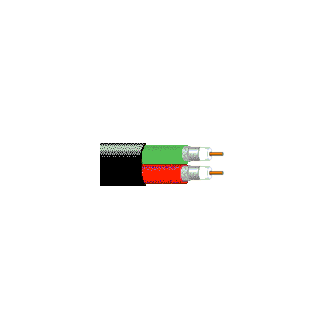

1694D

Serial Digital Coax, Dual RG6, #18 Solid BC, Duofoil® + 95% TC braid, CMR

...
Low Loss Serial Digital Coax, Riser-CMR, 2-RG6 18 AWG solid bare copper conductors, foam HDPE core, Duofoil+95% tinned copper braid, inner PVC jackets, PVC jacket
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Video Mult.

Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Coax
18 Solid BC - Bare Copper 0.04 in 2

Conductor Count

2

Insulation
Material Nominal Diameter
PE - Polyethylene (Foam) 0.18 in

Table Notes

Gas Injected

Color Chart
Number Color
1 Red
2 Green
Inner Shield
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
Braid 2 Tinned Copper (TC) 95%
Inner Jacket
Material Nominal Diameter
PVC - Polyvinyl Chloride 0.275 in
Outer Jacket
Material Nominal Diameter
PVC - Polyvinyl Chloride 0.618 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Inner Shield DCR Outer Conductor DCR
6.4 Ohm/1000ft 6.4 Ohm/1000ft 2.8 Ohm/1000ft 2.8 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16.2 pF/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss
Frequency [MHz] Minimum Return (RL)
5-1600 MHz 23 dB
1600-4500 MHz 21 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.24 dB/100ft
3.58 MHz 0.44 dB/100ft
5 MHz 0.52 dB/100ft
7 MHz 0.61 dB/100ft
10 MHz 0.71 dB/100ft
67.5 MHz 1.65 dB/100ft
71.5 MHz 1.69 dB/100ft
88.5 MHz 1.86 dB/100ft
100 MHz 1.95 dB/100ft
135 MHz 2.24 dB/100ft
143 MHz 2.3 dB/100ft
180 MHz 2.57 dB/100ft
270 MHz 3.17 dB/100ft
360 MHz 3.69 dB/100ft
540 MHz 4.6 dB/100ft
720 MHz 5.38 dB/100ft
750 MHz 5.5 dB/100ft
1000 MHz 6.42 dB/100ft
1500 MHz 7.99 dB/100ft
2000 MHz 9.37 dB/100ft
2250 MHz 10.01 dB/100ft
3000 MHz 11.78 dB/100ft
4500 MHz 15.7 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.24 ns/ft 82%
Voltage
UL Voltage Rating
300 V RMS
Temperature Range

Non-UL Temp Rating

75°C

UL Temp Rating

60°C

Operating Temperature Range

-40°C To +75°C

Mechanical Characteristics

Bulk Cable Weight

124 lbs/1000ft

Max. Pull Tension

177 lbs

Min. Bend Radius/Minor Axis

3.5 in
Standards

NEC/(UL) Compliance

CMR

CEC/C(UL) Compliance

CMG

CPR Euroclass

Eca

RG Type

6

Series Type

6

Applicable Environmental and Other Programs

Environmental Space

Indoor/Outdoor

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/11/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

No

MII Order #39 (China RoHS)

Yes

Suitability

Suitability - Indoor

Yes

Suitability - Outdoor

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

UL1666 Vertical Shaft

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

No

Related Part Numbers

Footnote

C - CRATE REEL PUT-UP.
History

Update and Revision

Revision Number: 0.401 Revision Date: 04-29-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length UPC
1694D 010500 Black Reel 500 ft 612825357452
1694D 0101000 Black Reel 1,000 ft 612825357445
