82248

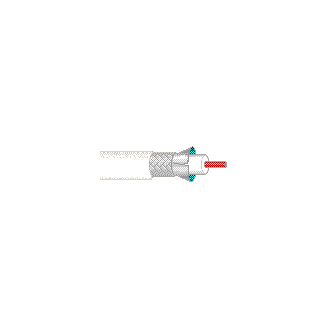

Analog Video, RG6 #18 Solid BC, Foil + 65% TC Braid, Flamarrest® Jacket, CMP

...
18 AWG solid .040" bare copper conductor, plenum, foam FEP insulation, Duofoil®; tinned copper braid shield (65% coverage), Flamarrest® jacket.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Coax
18 Solid BC - Bare Copper 0.04 in 1

Conductor Count

1

Insulation
Material Nominal Diameter
FEP - Fluorinated Ethylene Propylene (Foam) 0.17 in
Outer Shield
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
Braid 2 Tinned Copper (TC) 65%
Outer Jacket
Material Material Trade Name Nominal Diameter
PVC - Polyvinyl Chloride Flamarrest® 0.222 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Outer Shield DCR Outer Conductor DCR
6.4 Ohm/1000ft 6.4 Ohm/1000ft 5.1 Ohm/1000ft 5.1 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16.5 pF/ft
Inductance
Nominal Inductance
0.09 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss
Frequency [MHz] Minimum Return (RL)
5-450 MHz 23 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.3 dB/100ft
10 MHz 0.7 dB/100ft
50 MHz 1.6 dB/100ft
100 MHz 2.2 dB/100ft
200 MHz 3 dB/100ft
400 MHz 4.6 dB/100ft
700 MHz 6.6 dB/100ft
900 MHz 7.7 dB/100ft
1000 MHz 8.2 dB/100ft
1500 MHz 10.7 dB/100ft
1600 MHz 11 dB/100ft
2000 MHz 12.9 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.24 ns/ft 82%
Voltage
Non-UL Voltage Rating UL Voltage Rating
300 V RMS 300 V RMS
Temperature Range

Non-UL Temp Rating

75°C

UL Temp Rating

75°C

Operating Temperature Range

-20°C To +75°C

Mechanical Characteristics

Bulk Cable Weight

28 lbs/1000ft

Max. Pull Tension

45 lbs

Min. Bend Radius/Minor Axis

2.25 in
Standards

NEC/(UL) Compliance

CMP

CEC/C(UL) Compliance

CMP

RG Type

6

Applicable Environmental and Other Programs

Environmental Space

Indoor - Plenum

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

No

MII Order #39 (China RoHS)

Yes

Suitability

Suitability - Indoor

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

NFPA 262

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

Yes

Related Part Numbers

Non-Plenum Number

9248

Footnote

C - CRATE REEL PUT-UP.
History

Update and Revision

Revision Number: 0.355 Revision Date: 04-29-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length UPC
82248 8771000 Natural Reel 1,000 ft 612825196488
82248 877U1000 Natural UnReel 1,000 ft 612825196518
