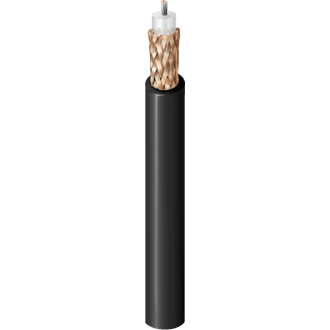

8261

Analog Video, RG11, #18 Str TC, 95% BC Braid, PVC Jacket, CXC

...
18 AWG stranded (7x26) .048" tinned copper conductor, polyethylene insulation, bare copper braid shield (95% coverage), PVC jacket.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

SDI coax

Construction Details

RG Type

11

Conductor
No. of Elements Size Stranding Nom. Diameter Material
1 18 AWG 7x26 0.048 in TC - Tinned Copper
Insulation
Material Nom. Insulation Diameter Color Code
PE - Polyethylene 0.285 in (7.24 mm) White
Outer Shield
Outer Shield Type Material Coverage
Braid Bare Copper (BC) 95%
Outer Jacket
Material Nom. Diameter
PVC - Polyvinyl Chloride (Non-Contaminating) 0.405 in (10.3 mm)

Overall Cable Diameter (Nominal)

0.405 in (10.3 mm)

Electrical Characteristics
Attenuation
Frequency Nom. Attenuation
1 MHz 0.2 dB/100ft
10 MHz 0.7 dB/100ft
50 MHz 1.3 dB/100ft
100 MHz 2 dB/100ft
200 MHz 2.9 dB/100ft
400 MHz 4.2 dB/100ft
700 MHz 5.8 dB/100ft
900 MHz 6.8 dB/100ft
1000 MHz 7.1 dB/100ft
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
6.1 Ohm/1000ft (20 Ohm/km) 1.2 Ohm/1000ft (3.9 Ohm/km) 20.5 pF/ft (67.3 pF/m) 75 Ohm 66%
Voltage
UL Voltage Rating
3700 V RMS
Mechanical Characteristics
Temperature
UL Temperature Operating
60°C -40°C To +60°C
Bend Radius
Stationary Min. Installation Min.
4.00 in (102 mm) 4.00 in (102 mm)

Max. Pull Tension

143 lbs (64.9 kg)

Bulk Cable Weight

95 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor/Outdoor, Indoor, Outdoor

Flammability / Reaction to Fire

[delete], IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

CEC / C(UL) Compliance

CXC

European Directive Compliance

EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.407 Revision Date: 04-29-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
8261 010500 Black Reel 500 ft 612825197447 C
8261 0101000 Black Reel 1,000 ft 612825358121 C
