Product Number: 8281F

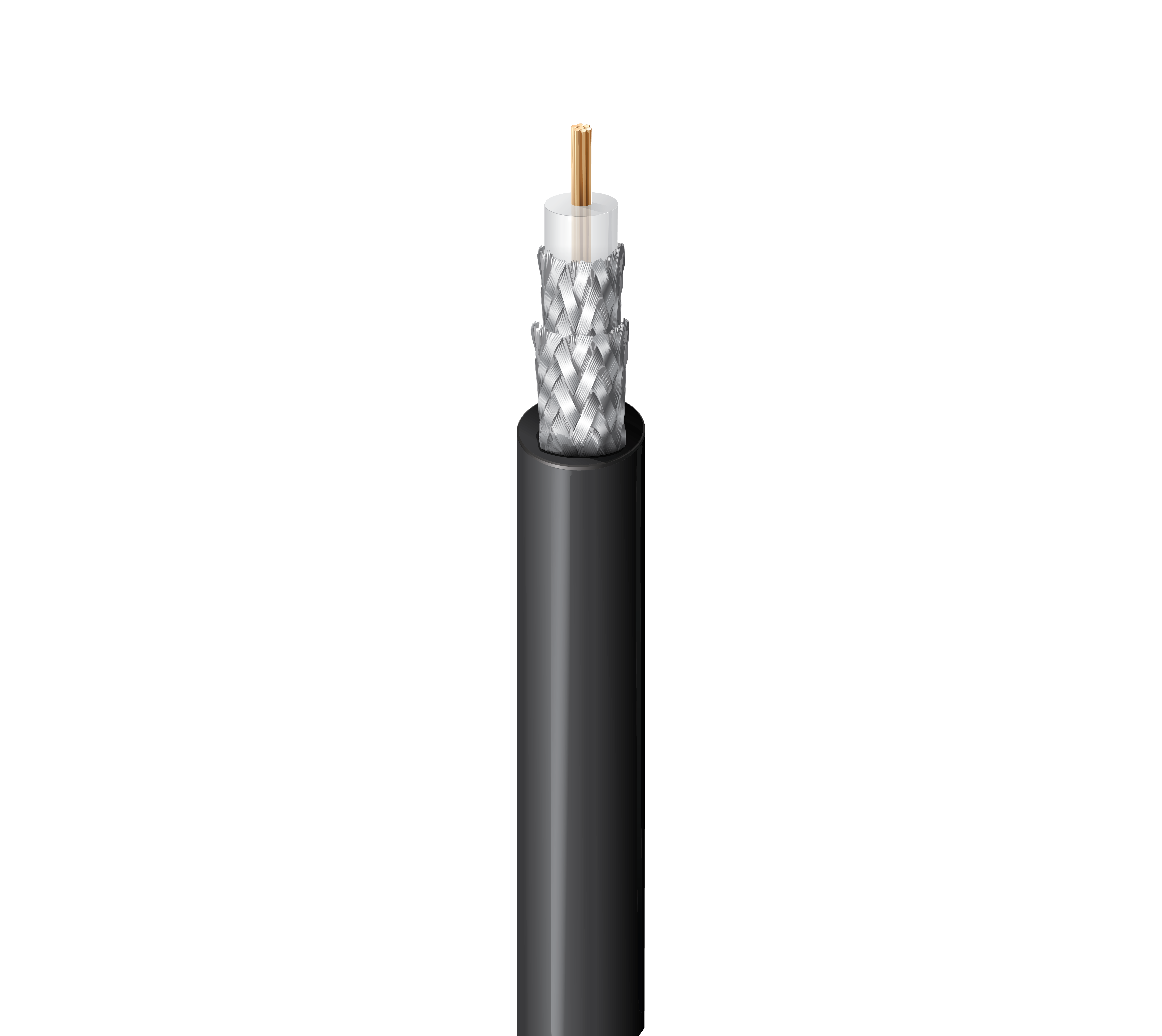

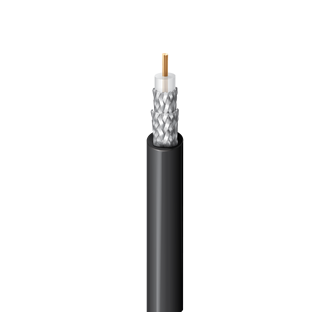

75 Ohm Analog Video Coax, RG-59, 21 AWG Str BC, Double 95% TC Braid, PVC Jkt. Flexible
75 Ohm Analog Video Coax, RG-59, 21 AWG (7x29) Bare Copper (Compacted) Conductor , PE Insulation, Double 95% Tinned Copper Braid Shield, PVC Jacket, Flexible
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Standard analog video |
|---|
Construction Details
|
RG Type |
59 |
|---|
Conductor
| Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|
| 21 AWG | 7x29 | 0.032 in | BC-C - Bare Copper (Compacted) |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PE - Polyethylene | 0.193 in (4.90 mm) | White |
Outer Shield
| Layer | Outer Shield Type | Material | Coverage |
|---|---|---|---|
| 1 | Braid | Tinned Copper (TC) | 95% |
| 2 | Braid | Tinned Copper (TC) | 95% |
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.304 in (7.72 mm) |
|
Overall Cable Diameter (Nominal) |
0.304 in (7.72 mm) |
|---|
Electrical Characteristics
Return Loss
| Frequency | Min. Return Loss |
|---|---|
| 2 - 216 MHz | 27 dB |
| 217 - 830 MHz | 23 dB |
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 0.3 dB/100ft |
| 3.6 MHz | 0.5 dB/100ft |
| 10 MHz | 0.9 dB/100ft |
| 71.5 MHz | 2.5 dB/100ft |
| 135 MHz | 3.6 dB/100ft |
| 270 MHz | 5.1 dB/100ft |
| 360 MHz | 6 dB/100ft |
| 540 MHz | 7.4 dB/100ft |
| 720 MHz | 8.7 dB/100ft |
| 750 MHz | 8.9 dB/100ft |
| 1000 MHz | 10.5 dB/100ft |
Electricals
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|
| 11.6 Ohm/1000ft | 1.7 Ohm/1000ft (5.6 Ohm/km) | 20.5 pF/ft (67.3 pF/m) | 75 Ohm | 66% |
Voltage
| Voltage Rating |
|---|
| 2900 V |
Mechanical Characteristics
Temperature
| Operating |
|---|
| -20°C to +60°C |
Bend Radius
| Installation Min. |
|---|
| 3.0 in (76 mm) |
|
Max. Pull Tension |
168 lbs (76.2 kg) |
|---|---|
|
Bulk Cable Weight |
61 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor (Not Riser or Plenum), Indoor, Aerial - Black only, When supported by messenger wire |
|---|---|
|
Sustainability |
CA Prop 65 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
European Directive Compliance |
EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
Product Notes
|
Notes |
Compacted copper combines the Impedance uniformity of solid conductors and the ""nick-resistance"" of stranded conductors. |
|---|
History
|
Update and Revision |
Revision Number: 0.478 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.478 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 8281F J5C500 | Black, Vivid Matte | Reel | 500 ft | 612825355465 | |
| 8281F J5C1000 | Black, Vivid Matte | Reel | 1,000 ft | 612825355472 | C |
| 8281F G7X1000 | Blue, Matte | Reel | 1,000 ft | 612825357988 | C |
| 8281F U901000 | Gray, Matte | Reel | 1,000 ft | 612825203605 | C |
