75 Ohm Analog Video Coax, RG-6, 18 AWG Solid BC, Foil + 65% TC Braid, FEP Jkt, CMP

...

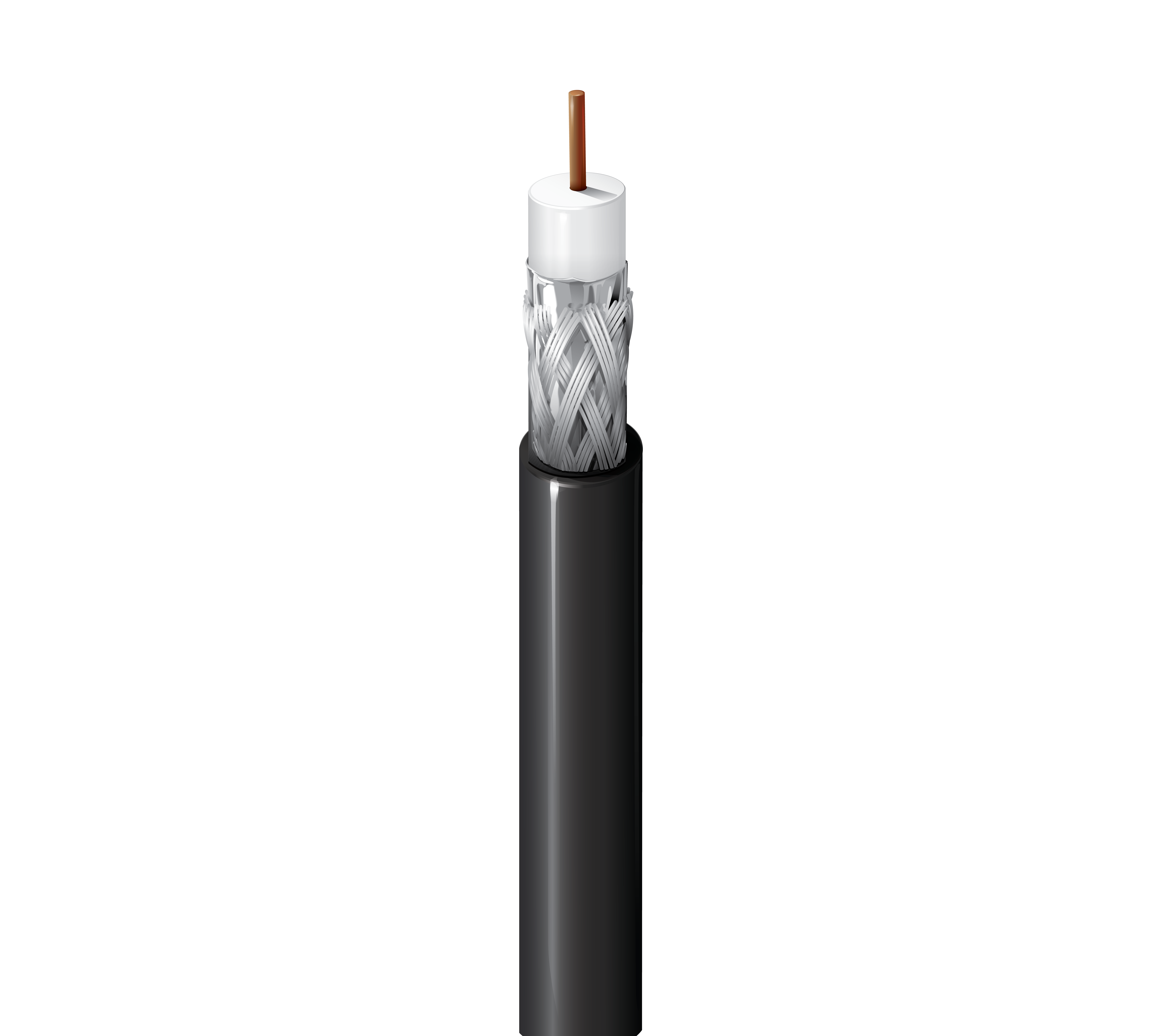

75 Ohm Analog Video Coax, RG-6, 18 AWG Solid Bare Copper Conductor , FEP Insulation, Foil + 65% Tinned Copper Braid Shield, FEP Jacket, CMP
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Standard analog video

Construction Details

RG Type

6

Conductor
Size Stranding Nom. Diameter Material
18 AWG Solid 0.040 in BC - Bare Copper
Insulation
Material Nom. Insulation Diameter Color Code
FEP - Fluorinated Ethylene Propylene (Foam) 0.168 in (4.27 mm) White
Outer Shield
Layer Outer Shield Type Material Material Trade Name Coverage
1 Tape Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
2 Braid Tinned Copper (TC) 65%
Outer Jacket
Material Nom. Diameter
FEP - Fluorinated Ethylene Propylene 0.222 in (5.64 mm)

Overall Cable Diameter (Nominal)

0.222 in (5.64 mm)

Electrical Characteristics
Return Loss
Frequency Min. Return Loss
5 - 450 MHz 23 dB
Attenuation
Frequency Nom. Attenuation
1 MHz 0.3 dB/100ft
10 MHz 0.7 dB/100ft
50 MHz 1.5 dB/100ft
100 MHz 2.1 dB/100ft
200 MHz 3.1 dB/100ft
400 MHz 4.5 dB/100ft
700 MHz 6.0 dB/100ft
900 MHz 6.9 dB/100ft
1000 MHz 7.3 dB/100ft
Electricals
Nom. Conductor DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
6.4 Ohm/1000ft 5.1 Ohm/1000ft (17 Ohm/km) 16.5 pF/ft (54.1 pF/m) 75 Ohm 82%
Voltage
UL Voltage Rating
300 V (CMP)
Mechanical Characteristics
Temperature
Operating
-70°C to +200°C
Bend Radius
Installation Min.
3.0 in (76 mm)

Max. Pull Tension

45 lbs (20 kg)

Bulk Cable Weight

35 lbs/1000ft

Standards and Compliance

Environmental Suitability

Outdoor - Aerial, Indoor, Outdoor, UV Resistance, Aerial - When supported by messenger wire

Sustainability

CA Prop 65

Flammability / Reaction to Fire

NFPA 262

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

CMP

CEC / C(UL) Compliance

CMP

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

Non-Plenum Number

9248
