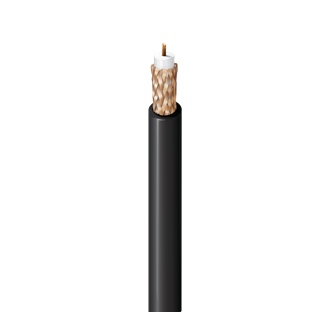

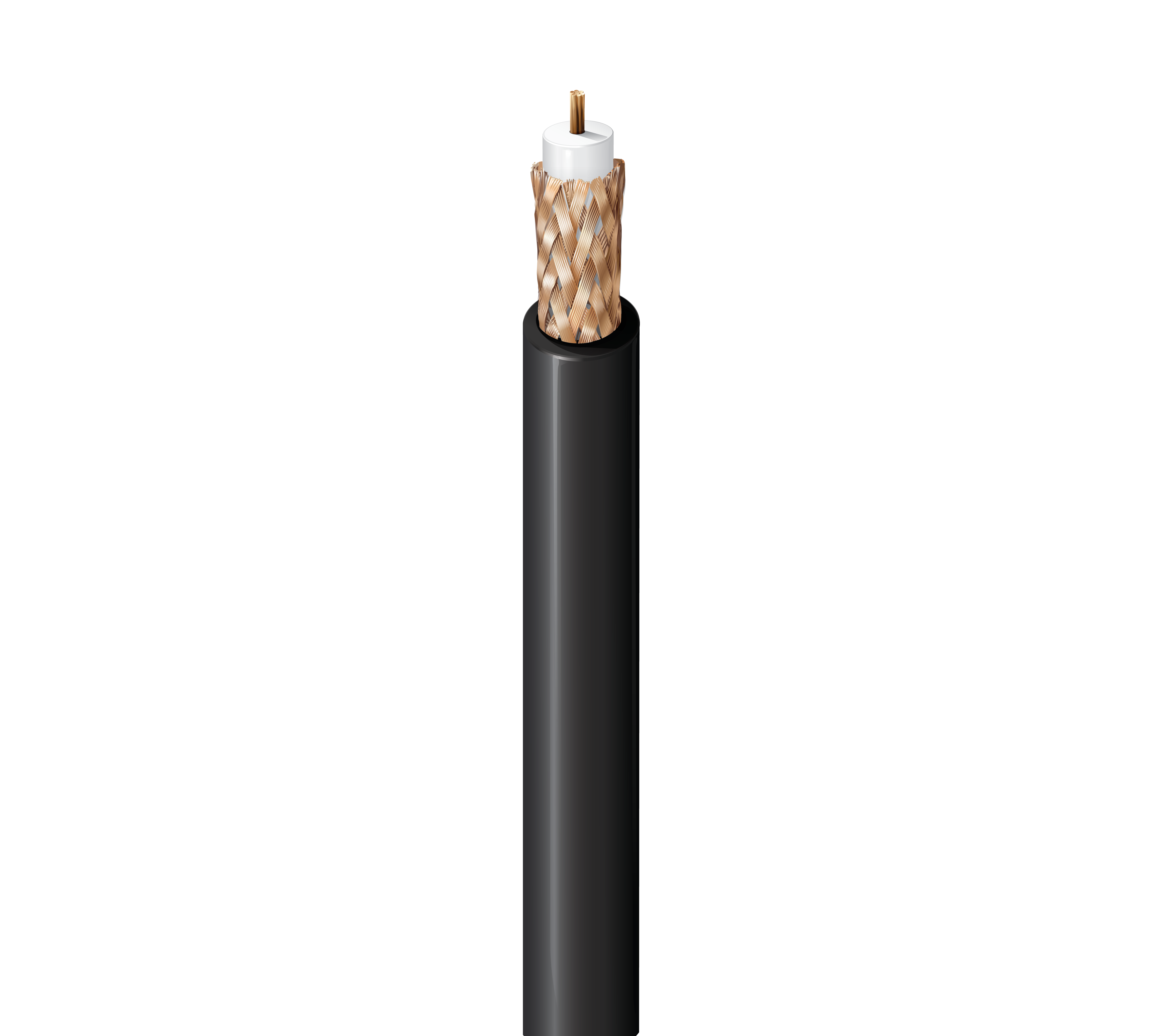

Product Number: 89259
75 Ohm Analog Video Coax, RG-59, 22 AWG Str BC, 95% BC Braid, FEP Jkt, CMP
75 Ohm Analog Video Coax, RG-59, 22 AWG (7x30) Bare Copper Conductor , FEP Insulation, 95% Bare Copper Braid Shield, FEP Jacket, CMP
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Standard analog video |
|---|
Construction Details
|
RG Type |
59 |
|---|
Conductor
| Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|
| 22 AWG | 7x30 | 0.029 in | BC - Bare Copper |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| FEP - Fluorinated Ethylene Propylene (Foam) | 0.135 in (3.43 mm) | White |
Outer Shield
| Outer Shield Type | Material | Coverage |
|---|---|---|
| Braid | Bare Copper (BC) | 95% |
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| FEP - Fluorinated Ethylene Propylene | 0.193 in (4.90 mm) |
|
Overall Cable Diameter (Nominal) |
0.193 in (4.90 mm) |
|---|
Electrical Characteristics
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 0.3 dB/100ft |
| 10 MHz | 0.9 dB/100ft |
| 50 MHz | 2.1 dB/100ft |
| 100 MHz | 3 dB/100ft |
| 200 MHz | 4.5 dB/100ft |
| 400 MHz | 6.6 dB/100ft |
| 700 MHz | 9.0 dB/100ft |
| 900 MHz | 10.1 dB/100ft |
| 1000 MHz | 11.0 dB/100ft |
Electricals
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|
| 15 Ohm/1000ft | 2.6 Ohm/1000ft (8.5 Ohm/km) | 17.3 pF/ft (56.8 pF/m) | 75 Ohm | 78% |
Voltage
| UL Voltage Rating |
|---|
| 300 V (CMP) |
Mechanical Characteristics
Temperature
| Operating |
|---|
| -70°C to +200°C |
Bend Radius
| Installation Min. |
|---|
| 2.5 in (64 mm) |
|
Max. Pull Tension |
70 lbs (32 kg) |
|---|---|
|
Bulk Cable Weight |
34 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor/Outdoor, Indoor, Outdoor, UV Resistance, Aerial - When supported by messenger wire |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
NFPA 262 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
NEC / UL Compliance |
CMP |
|
CEC / C(UL) Compliance |
CMP |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Non-Plenum Number |
9259 |
History
|
Update and Revision |
Revision Number: 0.487 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.487 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 89259 010100 | Black | Reel | 100 ft | 612825220824 | |
| 89259 010500 | Black | Reel | 500 ft | 612825220916 | C |
| 89259 0101000 | Black | Reel | 1,000 ft | 612825220831 | C |
