9141

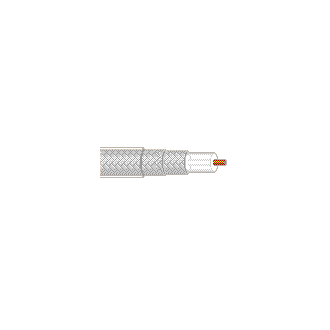

Precision Video Coax, RG59, #20 Solid BC, Double 98% TC/BC Braid

...
20 AWG solid .031" bare copper conductor, polyethylene insulation, tinned copper/bare copper braid shield (98% coverage), polyethylene jacket.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Coax
20 Solid BC - Bare Copper 0.031 in 1

Conductor Count

1

Insulation
Material Nominal Diameter
PE - Polyethylene 0.2 in
Outer Shield
Type Layer Material Coverage [%]
Braid 1 Tinned Copper (TC) 98%
Braid 2 Tinned Copper (TC) 98%
Outer Jacket
Material Nominal Diameter
PE - Polyethylene 0.305 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Outer Shield DCR Outer Conductor DCR
9.9 Ohm/1000ft 9.9 Ohm/1000ft 1.1 Ohm/1000ft 1.1 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
20 pF/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss
Frequency [MHz] Minimum Return (RL)
5-216 MHz 27 dB
217-850 MHz 23 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.3 dB/100ft
3.6 MHz 0.5 dB/100ft
10 MHz 0.8 dB/100ft
71.5 MHz 2 dB/100ft
135 MHz 3.5 dB/100ft
270 MHz 4.3 dB/100ft
360 MHz 5 dB/100ft
540 MHz 6.2 dB/100ft
720 MHz 7.2 dB/100ft
750 MHz 7.4 dB/100ft
1000 MHz 9.1 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.54 ns/ft 66%
Voltage
Non-UL Voltage Rating
1700 V RMS
Temperature Range

Non-UL Temp Rating

80°C

Operating Temperature Range

-55°C To +80°C

Mechanical Characteristics

Bulk Cable Weight

68 lbs/1000ft

Max. Pull Tension

172 lbs

Min. Bend Radius/Minor Axis

3 in
Standards

RG Type

59

Series Type

59

Applicable Environmental and Other Programs

Environmental Space

Indoor/Outdoor

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/11/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

No

MII Order #39 (China RoHS)

Yes

Suitability

Suitability - Aerial

No

Suitability - Indoor

Yes

Suitability - Outdoor

No

Plenum/Non-Plenum

Plenum (Y/N)

No

Related Part Numbers

Footnote

C - CRATE REEL PUT-UP.
Product Notes

Notes

Dielectric Strength: 8 kV.

History

Update and Revision

Revision Number: 0.324 Revision Date: 04-29-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length UPC
9141 3681000 Clear, Transparent Reel 1,000 ft 612825224730
