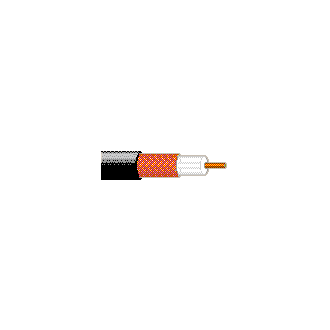

Analog Video, RG59, #22 Solid BCCS, 85% BC Braid, PVC Jacket, CMX

...
22 AWG solid bare copper-covered steel conductor, polyehtylene insulation, bare copper braid shield (85% coverage), PVC jacket.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Coax
22 Solid BCCS - Bare Copper Covered Steel 0.025 in 1

Conductor Count

1

Insulation
Material Nominal Diameter
PE - Polyethylene 0.146 in
Outer Shield
Type Material Coverage [%]
Braid Bare Copper (BC) 85%
Outer Jacket
Material Nominal Diameter
PVC - Polyvinyl Chloride 0.242 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Conductor DCR Conductor Resistance Nominal Outer Shield DCR Outer Conductor DCR
50 Ohm/1000ft 50 Ohm/1000ft 4.5 Ohm/1000ft 4.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
19.4 pF/ft
Inductance
Nominal Inductance
0.112 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss
Frequency [MHz] Minimum Return (RL)
5-450 MHz 23 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss
1 MHz 0.6 dB/100ft
10 MHz 1.1 dB/100ft
50 MHz 2.4 dB/100ft
100 MHz 3.4 dB/100ft
200 MHz 4.9 dB/100ft
400 MHz 7 dB/100ft
700 MHz 9.7 dB/100ft
900 MHz 11.1 dB/100ft
1000 MHz 12 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.54 ns/ft 66%
Power Rating
Frequency [MHz] Max. Power Rating [W] Nominal Power Rating [W]
50 MHz 470 W 470 W
100 MHz 310 W 310 W
300 MHz 160 W 160 W
500 MHz 115 W 115 W
1,000 MHz 76 W 76 W
Voltage
Non-UL Voltage Rating UL Voltage Rating
1700 V RMS 150 V RMS
Temperature Range

Non-UL Temp Rating

80°C

Operating Temperature Range

-40°C To +80°C

Mechanical Characteristics

Bulk Cable Weight

33 lbs/1000ft

Max. Pull Tension

67 lbs

Min. Bend Radius/Minor Axis

2.5 in
Standards

NEC/(UL) Compliance

CMX

CEC/C(UL) Compliance

CMX

UL AWM Style Compliance

AWM 1354 (30 V 80°C)

CPR Euroclass

Eca

RG Type

59

Series Type

59

Applicable Environmental and Other Programs

Environmental Space

Indoor/Outdoor

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

MII Order #39 (China RoHS)

Yes

Suitability

Suitability - Indoor

Yes

Suitability - Outdoor

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

VW-1

IEC Flammability

IEC 60332-1-2

UL voltage rating

150 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

No

History

Update and Revision

Revision Number: 0.376 Revision Date: 04-29-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length UPC
9244 010U500 Black UnReel 500 ft 612825358817
9244 0101000 Black Reel 1,000 ft 612825357704
9244 010U1000 Black UnReel 1,000 ft 612825357698
