9275

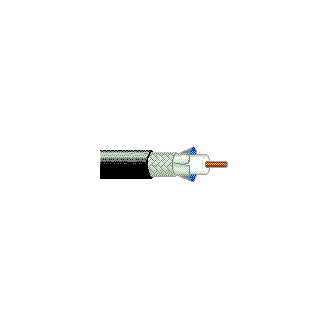

Analog Video, RG59, 20 AWG Solid BCCS, Foil + Alum Braid, CM PVC Jacket

...
Analog Video, Series 59, 20 AWG solid .032" bare copper-covered steel conductor, gas-injected foam polyethylene insulation, Duofoil® or Duobond®; aluminum braid shield (40% coverage), CM PVC jacket.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Physical Characteristics (Overall)
Conductor
AWG Stranding Material Nominal Diameter No. of Coax
20 Solid BCCS - Bare Copper Covered Steel 0.032 in 1

Conductor Count

1

Insulation
Material Nominal Diameter
PE - Polyethylene (Foam) 0.144 in

Table Notes

Gas Injected

Outer Shield
Type Layer Material Material Trade Name Coverage [%]
Tape 1 Tri-Laminate (Alum+Poly+Alum) Duofoil® 100%
Braid 2 Aluminum 40%
Outer Jacket
Material Nominal Diameter
PVC - Polyvinyl Chloride 0.237 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR Nominal Outer Shield DCR Outer Conductor DCR
44.5 Ohm/1000ft 17 Ohm/1000ft 17 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
16.2 pF/ft
Inductance
Nominal Inductance
0.097 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
Return Loss
Frequency [MHz] Min. Structural Return Loss (SRL)
5-550 MHz 18 dB
High Frequency (Nominal/Typical)
Frequency [MHz] Nom. Insertion Loss Nom. Structural Return Loss (SRL)
5 MHz 0.75 dB/100ft 18 dB
55 MHz 1.84 dB/100ft
211 MHz 3.36 dB/100ft
270 MHz 3.79 dB/100ft
300 MHz 3.99 dB/100ft
350 MHz 4.33 dB/100ft
400 MHz 4.66 dB/100ft
450 MHz 4.96 dB/100ft
550 MHz 5.48 dB/100ft
750 MHz 6.51 dB/100ft
870 MHz 7 dB/100ft
1000 MHz 7.68 dB/100ft
Delay
Nominal Delay Nominal Velocity of Propagation (VP) [%]
1.2 ns/ft 83%
High Frequency
Frequency [MHz] Max. Insertion Loss (Attenuation)
5 MHz 0.86 dB/100ft
55 MHz 2.05 dB/100ft
211 MHz 3.80 dB/100ft
270 MHz 4.22 dB/100ft
300 MHz 4.45 dB/100ft
350 MHz 4.80 dB/100ft
400 MHz 5.10 dB/100ft
450 MHz 5.40 dB/100ft
550 MHz 5.95 dB/100ft
600 MHz 6.20 dB/100ft
Voltage
UL Voltage Rating
300 V RMS
Temperature Range

UL Temp Rating

75°C

Operating Temperature Range

-40°C To +80°C

Mechanical Characteristics

Bulk Cable Weight

22 lbs/1000ft

Max. Pull Tension

80 lbs

Min. Bend Radius/Minor Axis

2.5 in
Standards

NEC/(UL) Compliance

CATV, CM

CEC/C(UL) Compliance

CM

CPR Euroclass

Eca

RG Type

59

Series Type

59

Applicable Environmental and Other Programs

Environmental Space

Indoor (Not Riser or Plenum)

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/96/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

MII Order #39 (China RoHS)

Yes

Suitability

Suitability - Indoor

Yes

Flammability, LS0H, Toxicity Testing

UL Flammability

UL1685 UL Loading

UL voltage rating

300 V RMS

Plenum/Non-Plenum

Plenum (Y/N)

No

History

Update and Revision

Revision Number: 0.460 Revision Date: 04-29-2024

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length UPC
9275 010U500 Black UnReel 500 ft 612825358916
9275 0101000 Black Reel 1,000 ft 612825226352
9275 010U1000 Black UnReel 1,000 ft 612825226369
9275 009U1000 White UnReel 1,000 ft 612825226376
