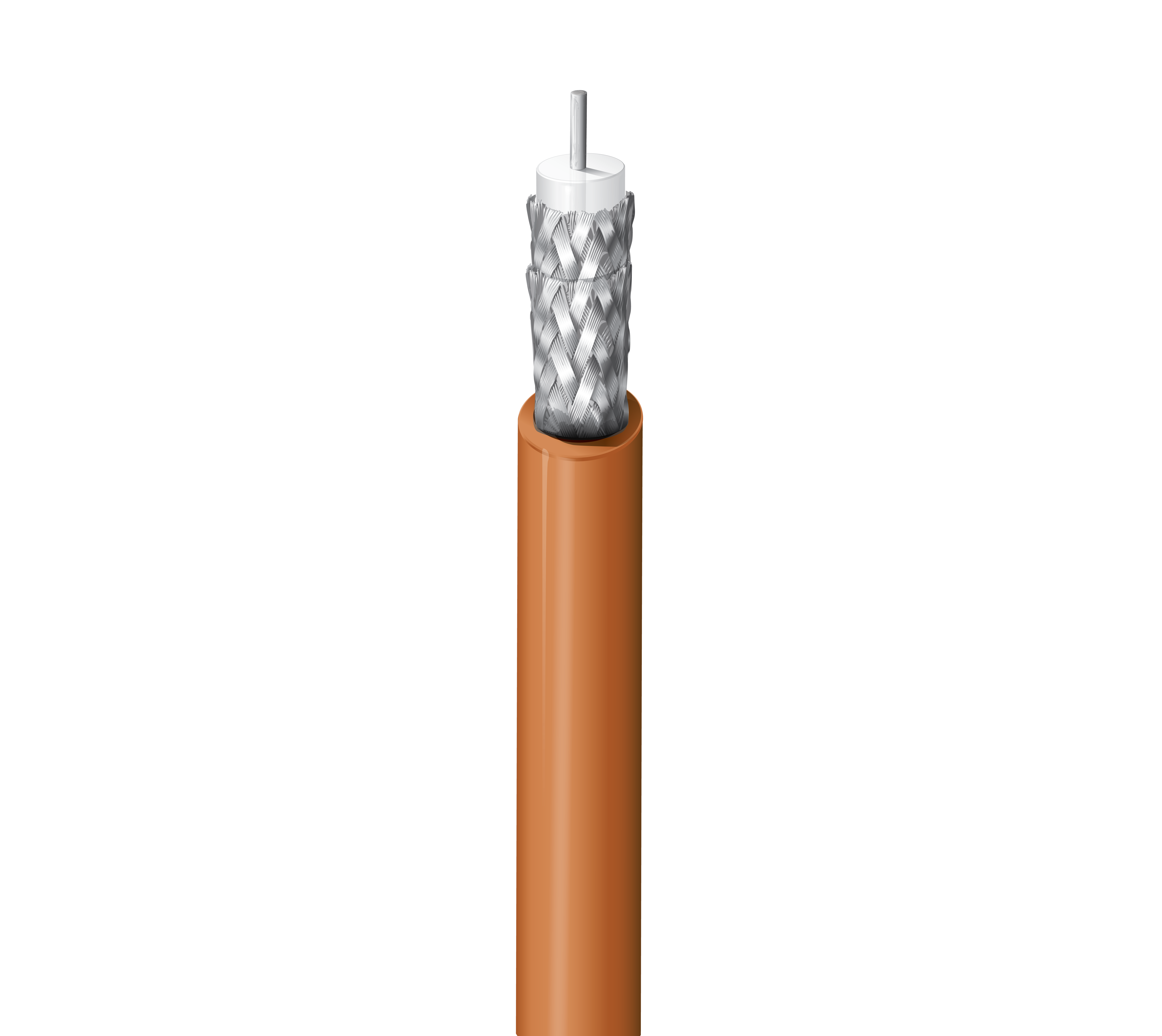

Product Number: 84142
Mil-Spec Coax, 50 Ohm, RG-142, 19 AWG Solid SCCS, Double 95% SC Braid, FEP Jkt, CMP, Commercial Non-QPL
Mil-Spec Coax, 50 Ohm, RG-142, 19 AWG Solid Silvered Copper Covered Steel Conductor, PTFE Insulation, Double 95% Silvered Copper Braid Shield, FEP Jacket, CMP, Commercial, non-QPL
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Aerospace wireless communication |
|---|
Construction Details
|
RG Type |
142 |
|---|
Conductor
| Size | Stranding | Nom. Diameter | Material |
|---|---|---|---|
| 18 AWG | Solid | 0.037 in | SCCS - Silvered Copper Covered Steel |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
|---|---|---|
| PTFE - Polytetrafluoroethylene | 0.116 in (2.95 mm) | White |
Outer Shield
| Layer | Outer Shield Type | Material | Coverage |
|---|---|---|---|
| 1 | Braid | Silvered Copper (SC) | 95% |
| 2 | Braid | Silvered Copper (SC) | 95% |
Outer Jacket
| Material | Nom. Diameter |
|---|---|
| FEP - Fluorinated Ethylene Propylene | 0.195 in (4.95 mm) |
|
Overall Cable Diameter (Nominal) |
0.195 in (4.95 mm) |
|---|
Electrical Characteristics
VSWR
| Frequency | Max. VSWR |
|---|---|
| 1 MHz - 12.4 GHz | per M17/60-RG142 |
Attenuation
| Frequency | Nom. Attenuation |
|---|---|
| 1 MHz | 0.3 dB/100ft |
| 10 MHz | 1.1 dB/100ft |
| 50 MHz | 2.7 dB/100ft |
| 100 MHz | 3.9 dB/100ft |
| 200 MHz | 5.6 dB/100ft |
| 400 MHz | 6.9 dB/100ft |
| 700 MHz | 11.0 dB/100ft |
| 900 MHz | 12.5 dB/100ft |
| 1000 MHz | 13.5 dB/100ft |
| 2000 MHz | 19.3 dB/100ft |
| 3000 MHz | 24.3 dB/100ft |
| 5000 MHz | 32.6 dB/100ft |
| 8000 MHz | 43.2 dB/100ft |
Power Rating
| Frequency | Max. Power Rating |
|---|---|
| 50 MHz | 3,500 W |
| 100 MHz | 2,400 W |
| 400 MHz | 1,100 W |
| 1,000 MHz | 650 W |
| 3,000 MHz | 330 W |
| 8,000 MHz | 180 W |
Electricals
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
|---|---|---|---|---|
| 19.0 Ohm/1000ft | 2.3 Ohm/1000ft (7.5 Ohm/km) | 29 pF/ft (95 pF/m) | 50 Ohm | 70% |
Voltage
| UL Voltage Rating | Voltage Rating |
|---|---|
| 300 V (CMP) | 1400 V (Mil-Spec) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 200°C | -70°C to +200°C |
Bend Radius
| Installation Min. |
|---|
| 2 in (51 mm) |
|
Max. Pull Tension |
146 lbs (66.2 kg) |
|---|---|
|
Bulk Cable Weight |
42 lbs/1000ft |
Standards and Compliance
|
Environmental Suitability |
Indoor - Plenum, Indoor, Outdoor, Sunlight Resistance, Aerial - When supported by messenger wire |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
NFPA 262 |
|
NEC / UL Compliance |
CMP |
|
CEC / C(UL) Compliance |
CMP |
|
Military Compliance |
Commercial, non-QPL product (M17/60-RG142) |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
History
|
Update and Revision |
Revision Number: 0.510 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.510 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 84142 001100 | Brown | Reel | 100 ft | 612825206446 | |
| 84142 001500 | Brown | Reel | 500 ft | 612825206460 | C E |
| 84142 0011000 | Brown | Reel | 1,000 ft | 612825206453 | C E |
