9222

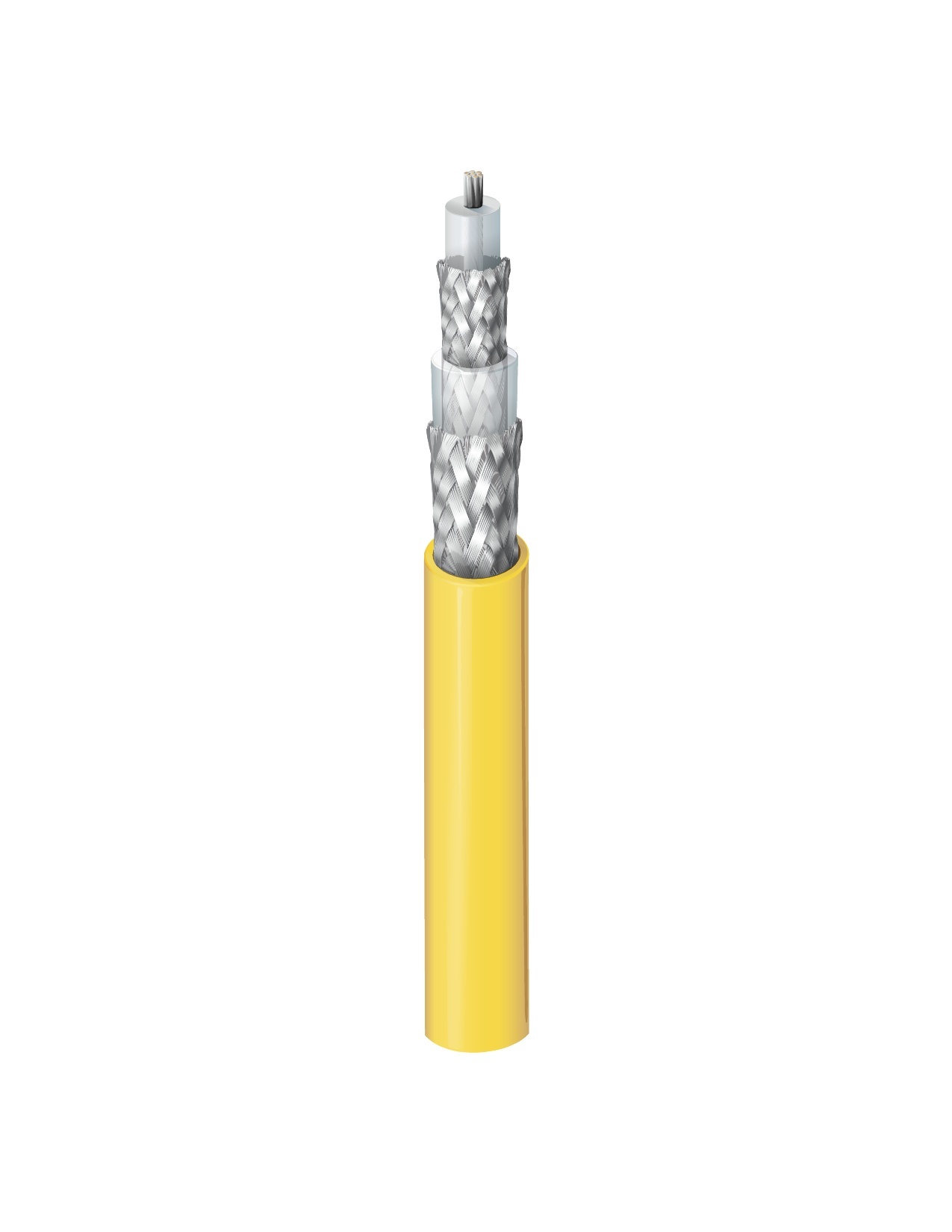

50Ω Triax RG-58A/U Type, #20, PO, TC Braids, PVC Jkt

...
50 Ohm Triax RG-58A/U Type, 20 AWG stranded (7x28) .037" tinned copper conductor, polyethylene insulation, double tinned copper braid shields (95% coverage), PVC jacket.

Regions Available: Global
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Analog video, Composite Video, Video Distribution

Construction Details

RG Type

58

Conductor
Element No. of Elements Size Stranding Nom. Diameter Material
Coax(es) 1 20 AWG 7x28 0.038 in TC - Tinned Copper
Insulation
Element Material Nom. Insulation Diameter Color Code
Coax(es) PE - Polyethylene 0.12 in (3.0 mm) White
Inner Shield
Element Layer Shield Type Material Coverage
Coax(es) 1 Braid Tinned Copper (TC) 95%
Inner Jacket
Material Nom. Diameter
PE - Polyethylene 0.177 in (4.50 mm)
Outer Shield
Layer Outer Shield Type Material Coverage
1 Braid Tinned Copper (TC) 95%
Outer Jacket
Material Nom. Diameter
PVC - Polyvinyl Chloride 0.241 in (6.12 mm)
Electrical Characteristics
Attenuation
Frequency Nom. Attenuation
1 MHz 0.5 dB/100ft
10 MHz 1.5 dB/100ft
50 MHz 3.3 dB/100ft
100 MHz 4.9 dB/100ft
200 MHz 7.2 dB/100ft
400 MHz 12 dB/100ft
500 MHz 14 dB/100ft
700 MHz 18 dB/100ft
900 MHz 22 dB/100ft
1000 MHz 24 dB/100ft
Electricals
Nom. Conductor DCR Nom. Inner Shield DCR Nom. Outer Shield DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop. Max. Delay Skew
9.5 Ohm/1000ft 4.7 Ohm/1000ft (15 Ohm/km) 4.3 Ohm/1000ft (14 Ohm/km) 30.8 pF/ft (101 pF/m) 50 Ohm 66% 66 ns/100m
Voltage
Voltage Rating
1400 V RMS
Mechanical Characteristics
Temperature
UL Temperature Operating
75°C -40°C To +75°C
Bend Radius
Stationary Min. Installation Min.
2.41 in (61.2 mm) 2.41 in (61.2 mm)

Max. Pull Tension

92 lbs (42 kg)

Bulk Cable Weight

39 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor, Indoor

CPR Compliance

CPR Euroclass: Fca

European Directive Compliance

EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

History

Update and Revision

Revision Number: 0.479 Revision Date: 02-03-2025

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length UPC Footnote
9222 004100 Yellow Reel 100 ft 612825225430
9222 004500 Yellow Reel 500 ft 612825225447 C
9222 004U500 Yellow UnReel 500 ft 612825225423
