MRG1791

MRG1791 - Analog Video, RG179 Type, 30 AWG Stranded SCCS, 85% TC Braids, PVC Jkt

...
Analog Video, RG179 Type, 30 AWG Stranded Silver Copper Covered Steel Conductor, 85% Tinned Copper Braid Shield, PVC Jacket

Regions Available: EMEA | Asia Pacific
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

Standard analog video

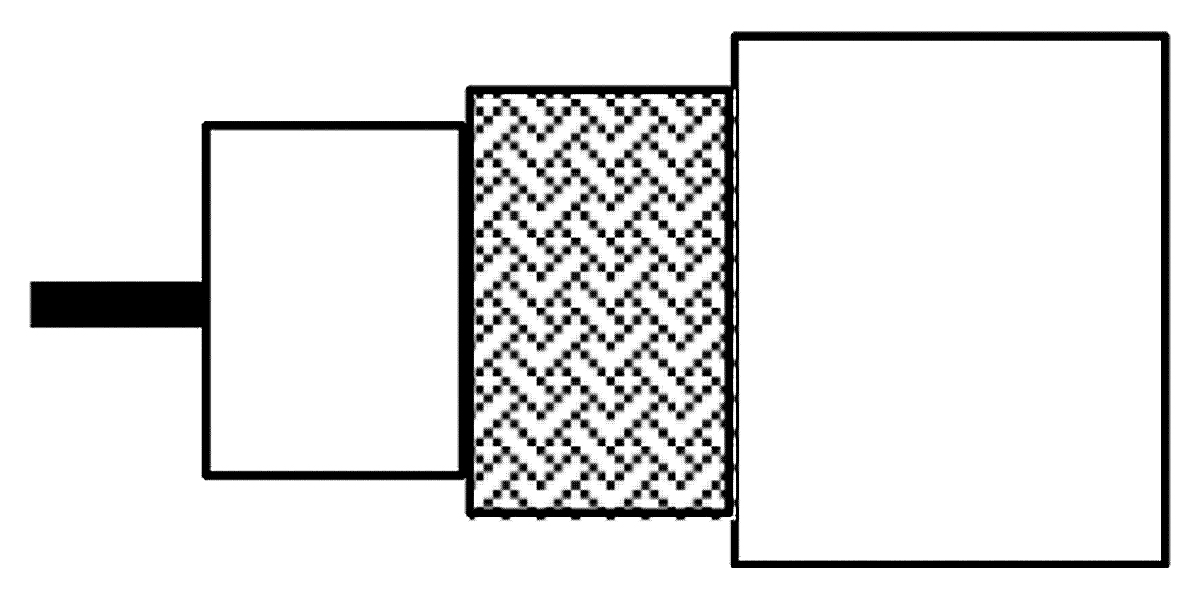

Construction Details

RG Type

179

Conductor
No. of Elements Size Stranding Nom. Diameter Material
1 30 AWG Stranded 0.3 mm SCCS - Silvered Copper Covered Steel
Insulation
Element Material Nom. Insulation Diameter
Insulated Conductor PE - Polyethylene 1.6 mm (0.063 in)
Outer Shield
Outer Shield Type Material Coverage
Braid Tinned Copper (TC) 85%
Outer Jacket
Material Nom. Diameter
PVC - Polyvinyl Chloride 2.8 mm

Table Notes

According to EN 50290-2-20

Electrical Characteristics

Regularity of Impedance

Min. 40 dB

Attenuation
Frequency Nom. Attenuation
10 MHz 15 dB/100m
100 MHz 27 dB/100m
1000 MHz 85 dB/100m
Electricals
Max. Conductor DCR Nom. Capacitance Cond-to-Shield Nom. Characteristic Impedance Nom. Velocity of Prop.
802 Ohm/km (244 Ohm/1000ft) 67 pF/m (20 pF/ft) 75 Ohm 66%
Voltage
Voltage Rating
2000 V DC / 1000 V RMS
Mechanical Characteristics
Temperature
Operating Installation Storage
-25°C To +70°C -5°C To +50°C -25°C To +70°C
Bend Radius
Installation Min.
28 mm (1.1 in)
Standards and Compliance

Environmental Suitability

Indoor/Outdoor

CPR Compliance

CPR Euroclass: Fca

Military Compliance

MIL-C-17

European Directive Compliance

EU CE Mark

History

Update and Revision

Revision Number: 0.257 Revision Date: 02-03-2025

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Putup Type Length EAN
MRG1791.0050 Black Reel 50 m 8719605102935
MRG1791.00100 Black Reel 100 m 8719605102928
MRG1791.00150 Black Reel 150 m 8719605162977
