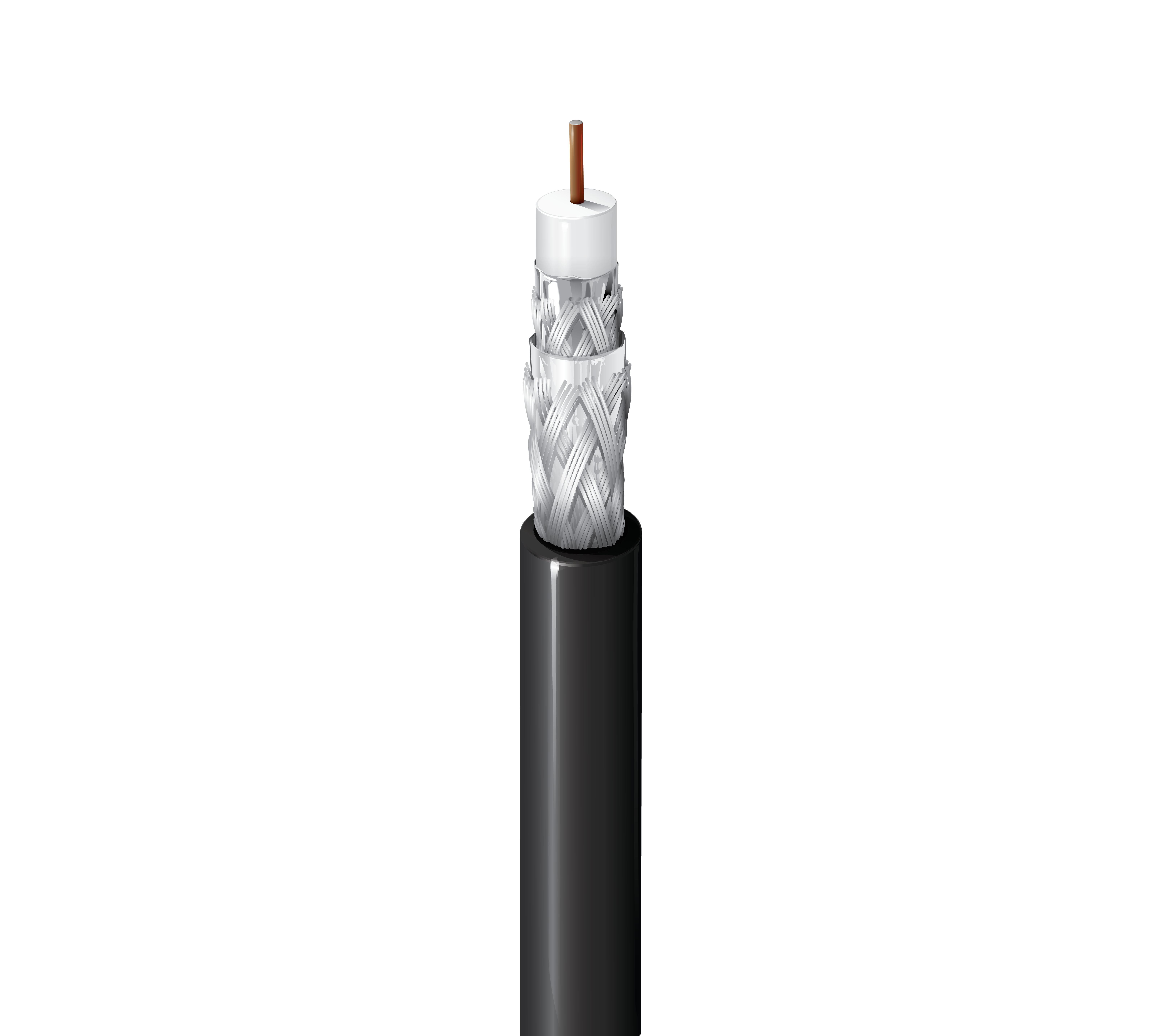

Broadband Coax, Series 6, 18 AWG Solid BCCS, Quad Shield, Flamarrest® Jkt, CMP
Suitable Applications |
Broadband, Cable Television (CATV), RF drop cable, Over-The-Air (OTA) antennas |
---|
Series Type |
6 |
---|
Size | Stranding | Nom. Diameter | Material |
---|---|---|---|
18 AWG | Solid | 0.040 in | BCCS - Bare Copper Covered Steel |
Material | Nom. Insulation Diameter | Color Code |
---|---|---|
FEP - Fluorinated Ethylene Propylene (Foam) | 0.170 in (4.32 mm) | White |
Layer | Outer Shield Type | Material | Material Trade Name | Coverage |
---|---|---|---|---|
1 | Tape | Tri-Laminate (Alum+Poly+Alum) | Duobond® II | 100% |
2 | Braid | Aluminum | 60% | |
3 | Tape | Tri-Laminate (Alum+Poly+Alum) | Duofoil® | 100% |
4 | Braid | Aluminum | 40% |
Material | Nom. Diameter |
---|---|
PVC - Polyvinyl Chloride | 0.248 in (6.30 mm) |
Overall Cable Diameter (Nominal) |
0.248 in (6.30 mm) |
---|
Frequency | Min. Structural Return Loss |
---|---|
5 - 1000 MHz | 20 dB |
Frequency | Nom. Attenuation |
---|---|
1 MHz | 0.3 dB/100ft |
10 MHz | 0.7 dB/100ft |
50 MHz | 1.6 dB/100ft |
100 MHz | 2.1 dB/100ft |
200 MHz | 2.9 dB/100ft |
400 MHz | 4.6 dB/100ft |
700 MHz | 6.6 dB/100ft |
750 MHz | 6.4 dB/100ft |
900 MHz | 7.1 dB/100ft |
1000 MHz | 8.2 dB/100ft |
Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
---|---|---|---|---|
28 Ohm/1000ft | 4.8 Ohm/1000ft (16 Ohm/km) | 16.3 pF/ft (53.5 pF/m) | 75 Ohm | 83% |
UL Voltage Rating |
---|
300 V (CMP) |
Operating |
---|
-20°C to +75°C |
Installation Min. |
---|
2.5 in (64 mm) |
Max. Pull Tension |
176 lbs (79.8 kg) |
---|---|
Bulk Cable Weight |
29 lbs/1000ft |
Environmental Suitability |
Indoor - Plenum, Indoor |
---|---|
Sustainability |
CA Prop 65 |
Flammability / Reaction to Fire |
NFPA 262 |
CPR Compliance |
CPR Euroclass: Eca |
CEC / C(UL) Compliance |
CMP |
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
UK Regulation Compliance |
UKCA Mark |
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
Non-Plenum Number |
1189A |
Update and Revision |
Revision Number: 0.485 Revision Date: 04-29-2024 |
---|
Item # | Color | Putup Type | Length | UPC | Footnote |
---|---|---|---|---|---|
1189AP 8771000 | Natural | Reel | 1,000 ft | 612825108139 | C |
