Product Number: 9R28026
Rainbow Ribbon Cable .050" Pitch, 9R280XX Series, #28-26c, PVC Ins

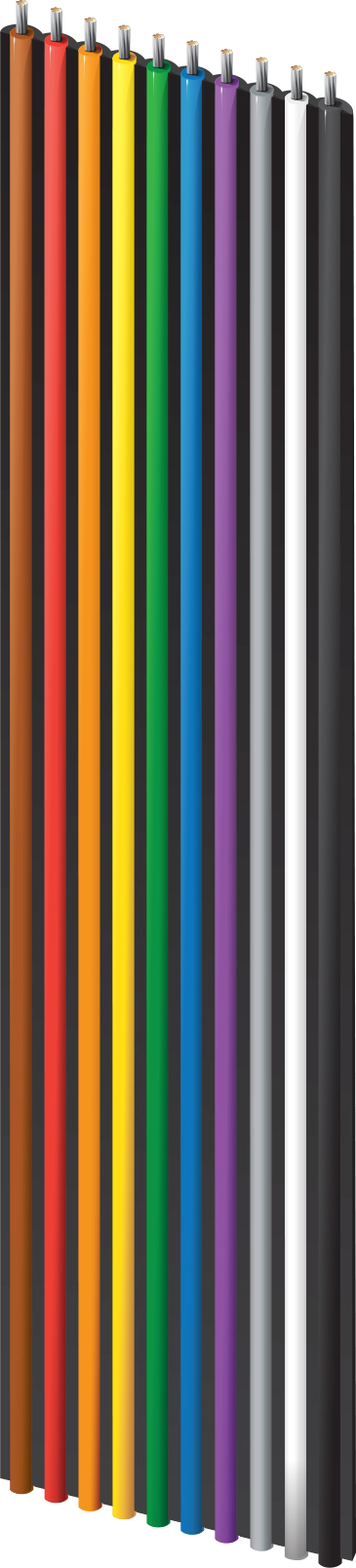

Rainbow Ribbon Cable .050" Pitch, 9R280XX Series, 26 Conductor, 28 AWG (7x36) Tinned Copper, PVC Insulated Conductors on PVC Substrate
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
Internal interconnection, internal wiring of electronic equipment, color-coded for quick identification & circuit tracing, easy breakouts for circuit routing, designed for mass-termination with standard IDC connectors |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material |
|---|---|---|
| 28 | 7x36 | TC - Tinned Copper |
|
Conductor Count |
26 |
|---|
Insulation
| Material | Nominal Wall Thickness |
|---|---|
| PVC - Polyvinyl Chloride | 0.010 in |
Color Chart
| Number | Color |
|---|---|
| 1 | Brown |
| 2 | Red |
| 3 | Orange |
| 4 | Yellow |
| 5 | Green |
| 6 | Blue |
| 7 | Purple |
| 8 | Gray |
| 9 | White |
| 10 | Black |
| Over 10 conductors | Repeat as required |
Construction and Dimensions
|
Conductor Spacing Center-Center |
.050 +/- .003 in |
|---|---|
|
Conductor Spacing Center-Center Outside |
1.250 +/- .008 in |
|
Substrate Thickness and Material |
.010 in, Clear PVC |
|
OuterJacket1, Nominal Width |
1.300 +/- .008 in |
|---|---|
|
OuterJacket1, Nom Thick Flat Section |
0.036 in |
Electrical Characteristics
Conductor DCR
| Nominal Conductor DCR |
|---|
| 68.2 Ohm/1000ft |
Capacitance
| Element | Nom. Capacitance Conductor to Conductor |
|---|---|
| @ 1 kHz (GSG) | 18 pF/ft |
| @ 1 MHz (GS) | 10 pF/ft |
| @ 1 MHz (GSG) | 15 pF/ft |
|
Min Insulation Resistance |
|
|---|
Inductance
| Element | Nominal Inductance |
|---|---|
| @ 1 MHz (GS) | 0.29 µH/ft |
| @ 1 MHz (GSG) | 0.2 µH/ft |
Impedance
| Nominal Balanced Characteristic Impedance Description | Nominal Characteristic Impedance | Nominal Characteristic Impedance Description |
|---|---|---|
| (GS) | 150 Ohm | (GS) |
| (GSG) | 105 Ohm | (GSG) |
High Frequency (Nominal/Typical)
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 10 MHz | 2.8 dB/100ft |
| 20 MHz | 4.8 dB/100ft |
| 30 MHz | 6.5 dB/100ft |
| 40 MHz | 8.3 dB/100ft |
| 50 MHz | 9.8 dB/100ft |
| 60 MHz | 12 dB/100ft |
| 70 MHz | 13 dB/100ft |
| 80 MHz | 14 dB/100ft |
| 90 MHz | 15.8 dB/100ft |
| 100 MHz | 17 dB/100ft |
|
Table Notes |
GS=Ground-Signal Mode; GSG=Ground-Signal-Ground Mode |
|---|
Delay
| Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|
| 1.40 ns/ft | 72% |
Unbalanced Crosstalk
| Element | Typical Unbalanced NEXT % | Typical Unbalanced FEXT % | Typical Cross Talk Pulse Rise Time (ns) |
|---|---|---|---|
| 10 ft. sample length | 4.8 | 7 | 3 ns |
| 10 ft. sample length | 3.5 | 4.7 | 5 ns |
| 10 ft. sample length | 3 | 3 | 7 ns |
Current
| Max. Recommended Current [A] |
|---|
| 1 Amp per Conductor at 20ºC |
Voltage
| Dielectric Withstand Voltage | UL Voltage Rating |
|---|---|
| 2000 V | 300 V |
Temperature Range
|
Operating Temperature Range |
-20°C to +105°C |
|---|
Mechanical Characteristics
|
Bulk Cable Weight |
29 lbs/1000ft |
|---|---|
|
Min. Bend Radius/Minor Axis |
0.5 in |
Standards
|
UL AWM Style Compliance |
AWM 20932 |
|---|
Applicable Environmental and Other Programs
|
EU Directive 2000/53/EC (ELV) |
Yes |
|---|---|
|
EU Directive 2003/11/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
Yes |
|
EU CE Mark |
Yes |
|
CA Prop 65 (CJ for Wire and Cable) |
Yes |
|
MII Order #39 (China RoHS) |
Yes |
Suitability
|
Suitability - Indoor |
Yes |
|---|
Flammability, LS0H, Toxicity Testing
|
UL Flammability |
VW-1 |
|---|---|
|
UL voltage rating |
300 V |
Plenum/Non-Plenum
|
Plenum (Y/N) |
No |
|---|
History
|
Update and Revision |
Revision Number: 0.297 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.297 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 9R28026 000100 | None | Reel | 100 ft | 612825221920 |
