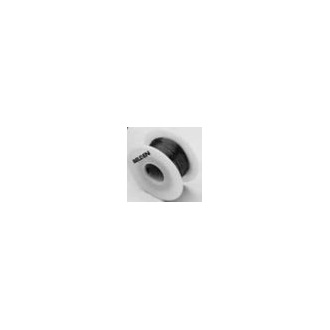

8052

Magnet Wire, #24 Sol BC, PUR/NYL Ins

...
Magnet Wire, 24AWG (Solid) Bare Copper, PUR/NYL Insulation, J-W-1177/9 MW 28-C

Regions Available: Global
English
Request Quote
Share
Request Sample Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

solderable magnet wire

Physical Characteristics (Overall)
Conductor
AWG Stranding Material No. of Conductors
24 Solid BC - Bare Copper 1

Conductor Count

1

Insulation
Material Nominal Diameter Nominal Wall Thickness
PUR/Nylon - Polyurethane + Nylon 0.0217 in 0.001 in
Construction and Dimensions

Min Increase in OD

0.001 in
Electrical Characteristics
Conductor DCR
Nominal Conductor DCR
25.7 Ohm/1000ft
Current
Max. Recommended Current [A]
Single conductor in free air @ 30ºC: 0.6 A
Voltage
Breakdown Voltage
2425 V Minimum (at Room Temperature)
Temperature Range

Non-UL Temp Rating

130°C

Mechanical Characteristics

Approximate Length

404 ft

Turns Per Linear Inch

46.9

Turns Per Square Inch

2200

Bulk Cable Weight

1.24 lbs/1000ft

Min. Bend Radius/Minor Axis

0.09 in
Standards

Military Compliance

J-W-1177/9

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV)

Yes

EU Directive 2003/96/EC (BFR)

Yes

EU Directive 2011/65/EU (RoHS 2)

Yes

EU Directive 2012/19/EU (WEEE)

Yes

EU Directive 2015/863/EU (RoHS 2 amendment)

Yes

EU Directive Compliance

EU Directive 2003/11/EC (BFR)

EU CE Mark

Yes

CA Prop 65

Yes

MII Order #39 (China RoHS)

Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating

N/A

Plenum/Non-Plenum

Plenum (Y/N)

No

History

Update and Revision

Revision Number: 0.383 Revision Date: 02-03-2025

Show All Specifications
Hide Specifications
Part Numbers
Item # Color Put-Up Type Length UPC
8052 None Reel 1 ft 612825194484
