Product Number: 8816

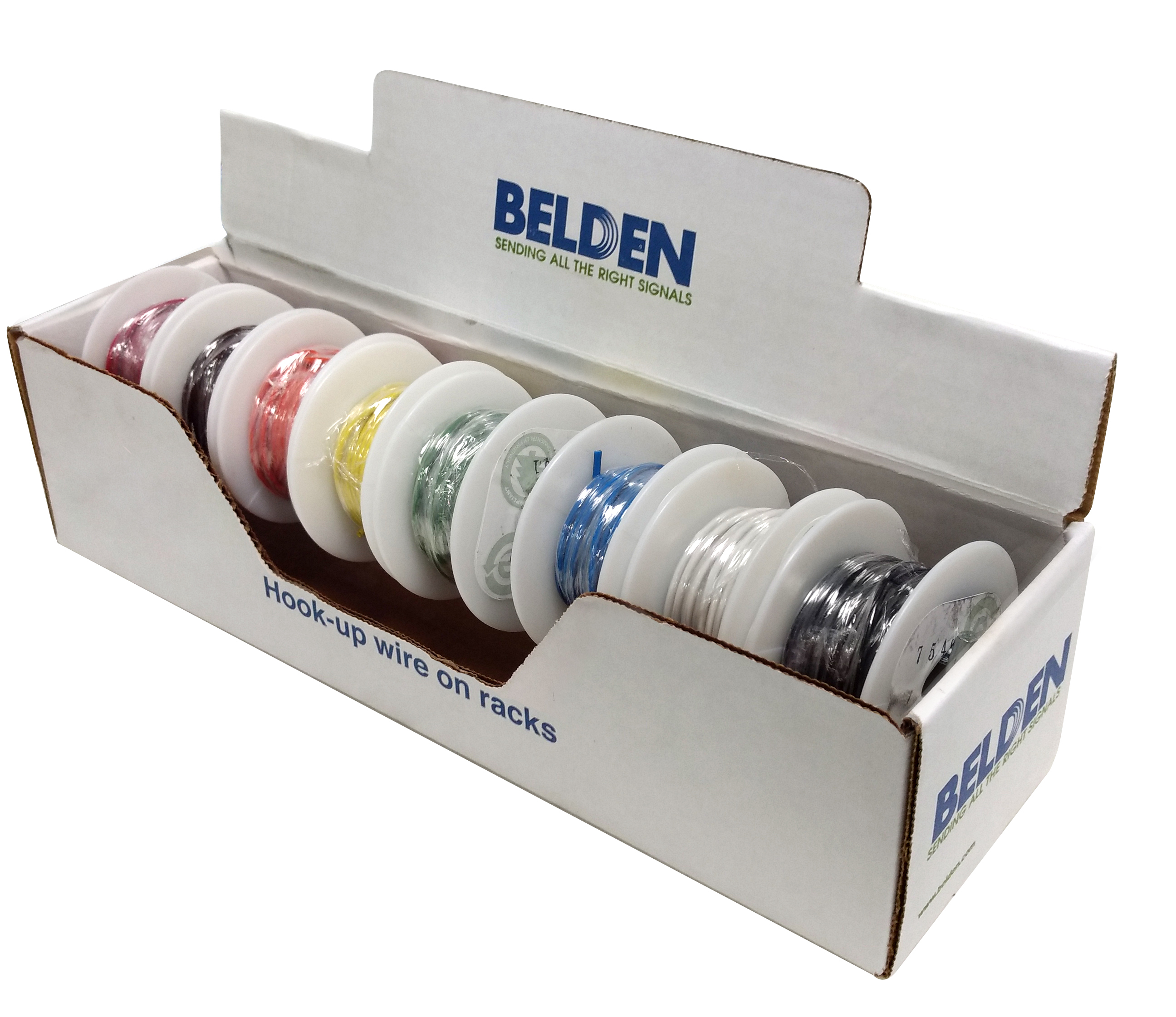

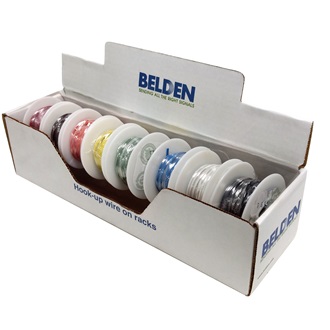

Lead Wire on Racks, 8 C #18 Str TC, PVC Ins, Eight Color Kit
Low Temp Plastic Lead Wire on Racks, 8 Conductor 18AWG (16x30) Tinned Copper, PVC Insulation, Eight Color Kit 80C
-
Availability:
Global
-
Global inventory:
Available
Specifications
Product Overview
|
Suitable Applications |
inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances |
|---|
Physical Characteristics (Overall)
Conductor
| AWG | Stranding | Material |
|---|---|---|
| 18 | 16x30 | TC - Tinned Copper |
|
Conductor Count |
1 |
|---|
Insulation
| Material |
|---|
| PVC - Polyvinyl Chloride |
Temperature Range
|
UL Temp Rating |
80°C |
|---|
Applicable Environmental and Other Programs
|
EU Directive 2000/53/EC (ELV) |
Yes |
|---|---|
|
EU Directive 2003/96/EC (BFR) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
CA Prop 65 |
Yes |
|
MII Order #39 (China RoHS) |
Yes |
Flammability, LS0H, Toxicity Testing
|
UL voltage rating |
N/A |
|---|
Plenum/Non-Plenum
|
Plenum (Y/N) |
No |
|---|
Product Notes
|
Notes |
8 Spools of 8522 in the following colors 1, 2, 3, 4, 5, 6, 9, 10 - Spool Lengths 25 Ft. |
|---|
History
|
Update and Revision |
Revision Number: 0.358 Revision Date: 02-03-2025 |
|---|
Information
|
Update and Revision |
Revision Number: 0.358 Revision Date: 02-03-2025 |
|---|
Part Numbers
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 8816 | None | Reel | 1 ft | 612825216865 |
