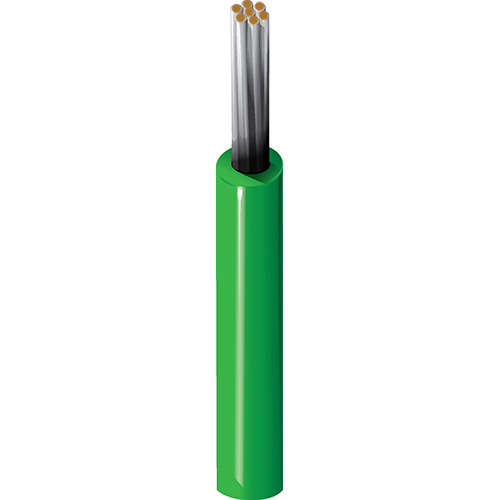

Lead Wire, #20 Str TC, PVC Ins, AWM 1007 AWM 1569
Regions Available: Global
|
Suitable Applications |
inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances |
|---|
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 1 | 20 AWG | 7x28 | TC - Tinned Copper |
| Material | Nom. Thickness | Nom. Insulation Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.016 in (0.41 mm) | 0.069 in (1.8 mm) |
|
Overall Cable Diameter (Nominal) |
0.069 in (1.8 mm) |
|---|
| Nom. Conductor DCR | Max. Current |
|---|---|
| 11.2 Ohm/1000ft | Single conductor in free air @ 30ºC: 11 A |
| UL Voltage Rating |
|---|
| 300 V RMS |
| UL Temperature | Operating |
|---|---|
| 105°C | -25°C To +105°C |
| Stationary Min. | Installation Min. |
|---|---|
| 0.69 in (18 mm) | 0.69 in (18 mm) |
|
Max. Pull Tension |
13 lbs (5.9 kg) |
|---|---|
|
Bulk Cable Weight |
5 lbs/1000ft |
|
Environmental Suitability |
Indoor |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
VW-1 |
|
AWM Compliance |
AWM 1007, AWM 1569 |
|
CEC / C(UL) Compliance |
TRSR-64 |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
Update and Revision |
Revision Number: 0.488 Revision Date: 02-03-2025 |
|---|
