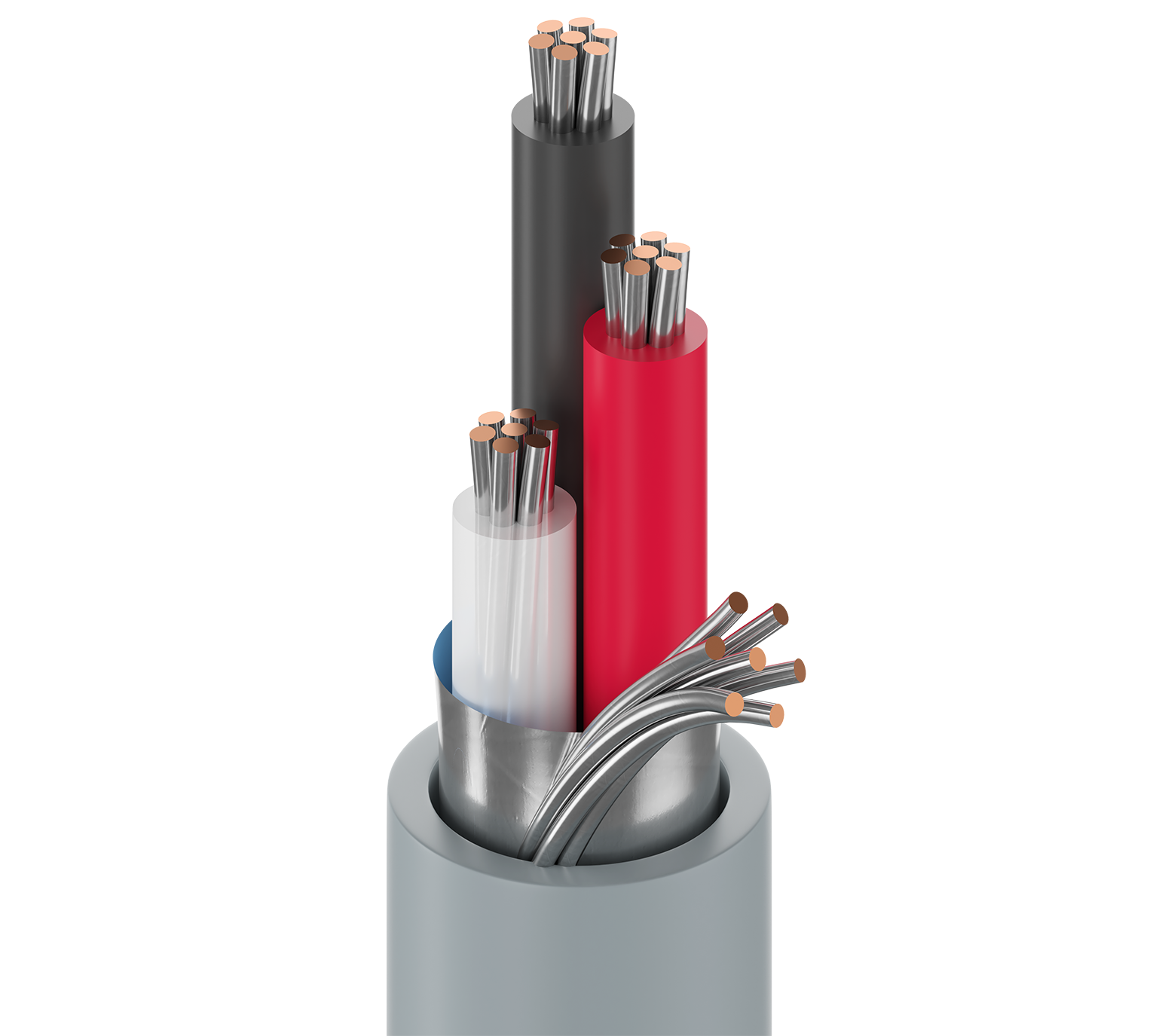

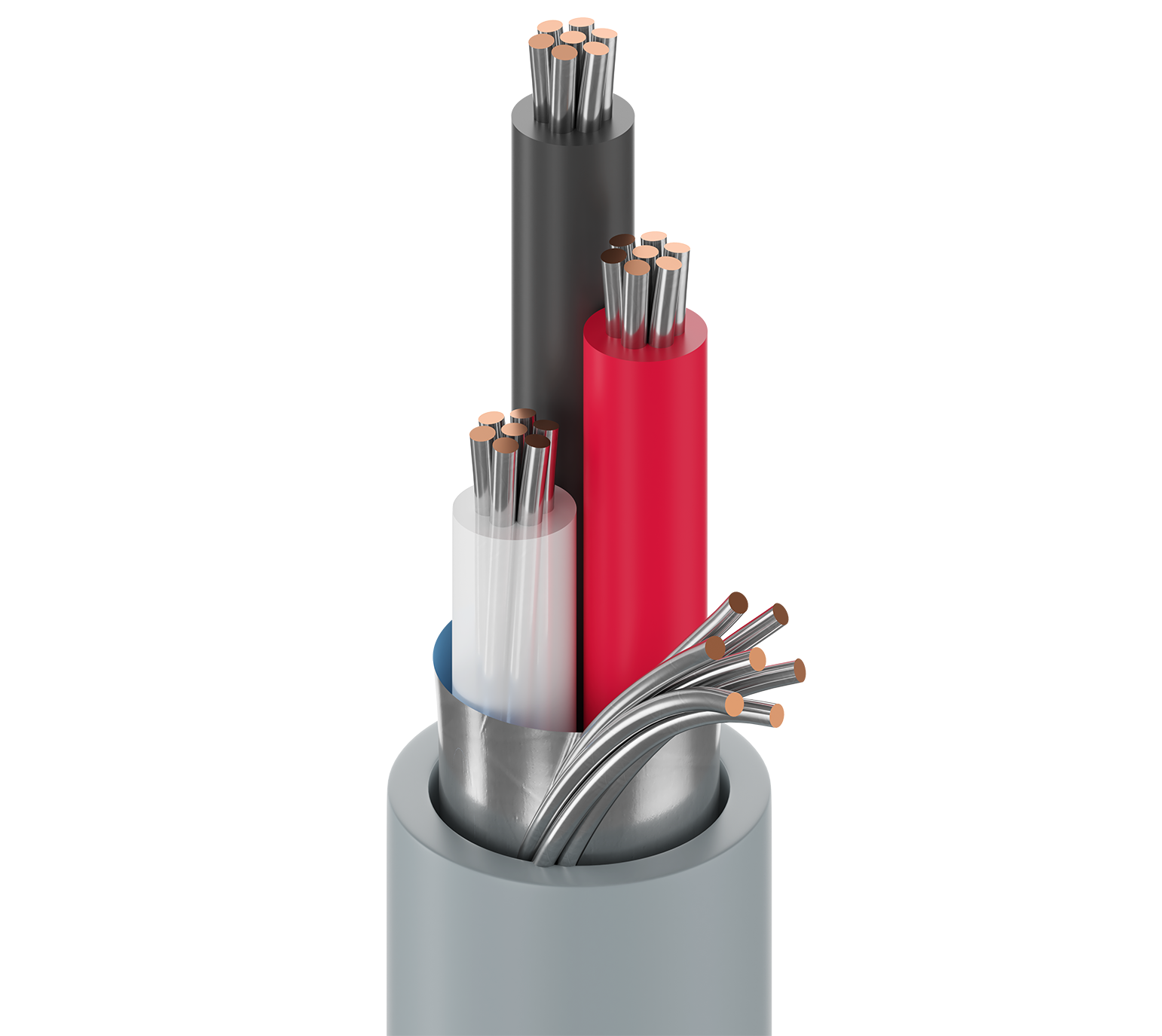

Electronic, 3 C #22 Str TC, PE Ins, OS, PVC Jkt, CM
Regions Available: Global
|
Suitable Applications |
low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring |
|---|
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 3 | 22 AWG | 7x30 | TC - Tinned Copper |
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Conductor(s) | PE - Polyethylene | 0.017 in (0.43 mm) | 0.062 in (1.6 mm) | Black, Red, Clear |
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (7x30) TC |
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.033 in (0.84 mm) | 0.199 in (5.05 mm) |
|
Overall Cable Diameter (Nominal) |
0.199 in (5.05 mm) |
|---|
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Max. Current |
|---|---|---|---|---|
| Conductor(s) | 17.8 Ohm/1000ft | 23 pF/ft (75 pF/m) | 41 pF/ft (130 pF/m) | 6 Amps per Conductor at 30ºC |
| UL Voltage Rating |
|---|
| 300 V (CM), 300 V (UL AWM 2093) |
| UL Temperature | Operating |
|---|---|
| 60°C | -20°C to +60°C |
| Stationary Min. | Installation Min. |
|---|---|
| 0.56 in (14 mm) | 2.0 in (51 mm) |
|
Max. Pull Tension |
36.4 lbs (16.5 kg) |
|---|---|
|
Bulk Cable Weight |
22 lbs/1000ft |
|
Environmental Suitability |
Indoor |
|---|---|
|
Sustainability |
CA Prop 65 |
|
Flammability / Reaction to Fire |
UL 1685 UL loading , IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca; CPR UKCA Class: Eca |
|
NEC / UL Compliance |
Article 800, CM |
|
AWM Compliance |
AWM 2093 |
|
CEC / C(UL) Compliance |
CM |
|
European Directive Compliance |
EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Update and Revision |
Revision Number: 0.534 Revision Date: 04-19-2023 |
|---|
| Item # | Color | Putup Type | Length | UPC/EAN | Footnote |
|---|---|---|---|---|---|
| 8771.00U152 | Chrome | UnReel | 152 m | 8719605019264 | |
| 8771.01152 | Chrome | Reel | 152 m | 8719605019288 | |
| 8771 060250 | Chrome | Reel | 250 ft | 612825215738 | |
| 8771.00U305 | Chrome | UnReel | 305 m | 8719605019271 | |
| 8771.01305 | Chrome | Reel | 305 m | 8719605019295 | |
| 8771 060500 | Chrome | Reel | 500 ft | 612825215745 | |
| 8771 060U500 | Chrome | UnReel | 500 ft | 612825215707 | |
| 8771 0601000 | Chrome | Reel | 1,000 ft | 612825215714 | C |
| 8771 060U1000 | Chrome | UnReel | 1,000 ft | 612825215691 | |
| 8771.013050 | Chrome | Reel | 3,050 m | 8719605019301 | |
| 8771 06010000 | Chrome | Reel | 10,000 ft | 612825215721 | C Y |
