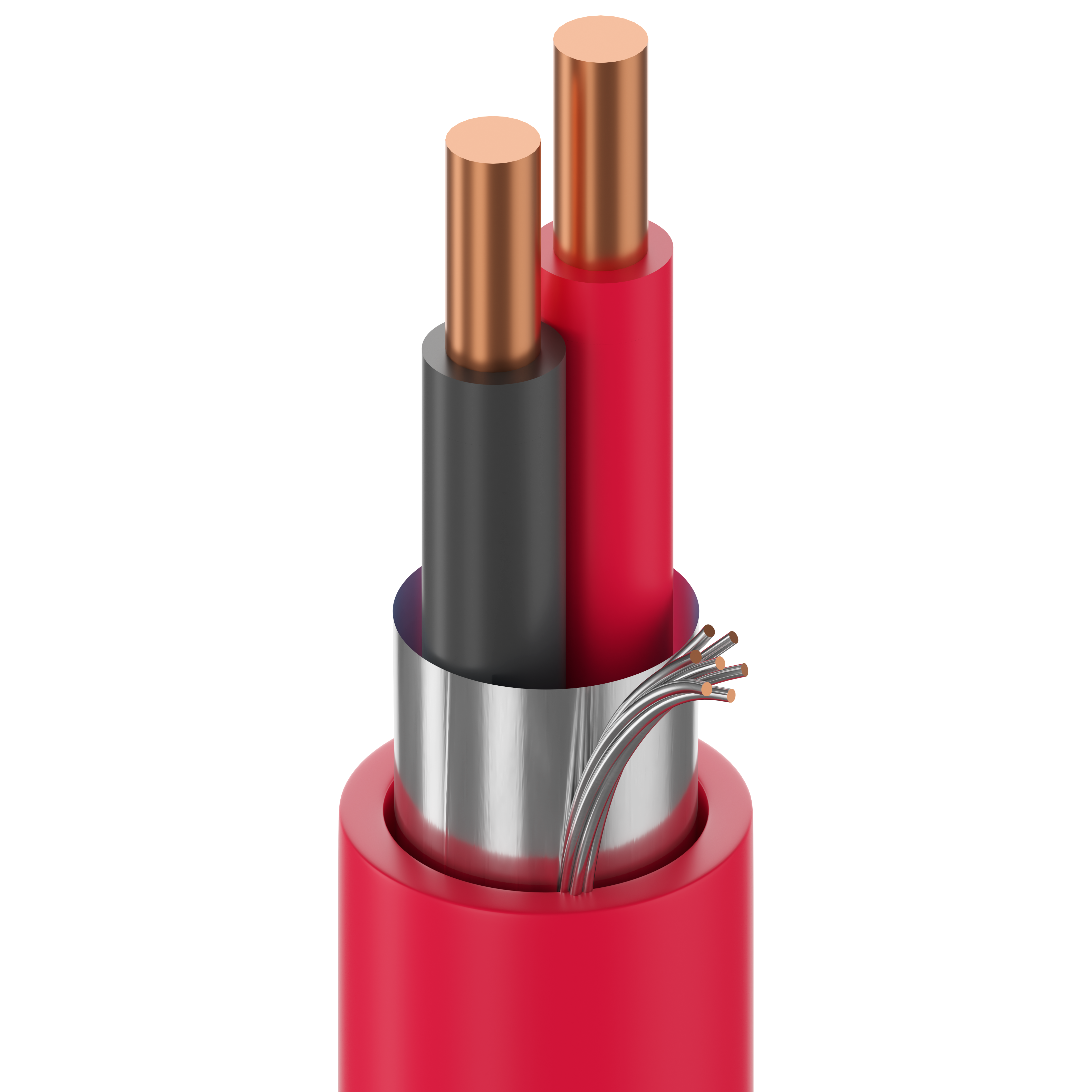

Electronic, 2 C #16 Sol BC, PVC Ins, OS, Red PVC Jkt, FPLR
|
Suitable Applications |
fire alarms; indoor applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …) |
|---|
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 2 | 16 | Solid | BC - Bare Copper |
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.016 in (0.41 mm) | 0.087 in (2.2 mm) | Black, Red |
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 22 AWG (7x30) TC |
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.036 in (0.91 mm) | 0.241 in (6.12 mm) |
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Max. Current |
|---|---|---|---|
| 4.2 Ohm/1000ft (14 Ohm/km) | 57.5 pF/ft (189 pF/m) | 103.5 pF/ft (339.6 pF/m) | 11 Amps per Conductor at 25ºC |
| UL Voltage Rating |
|---|
| 300 V |
| UL Temperature | Operating |
|---|---|
| 105°C | -40°C To +105°C |
| Stationary Min. | Installation Min. |
|---|---|
| 3.61 in (91.7 mm) | 3.61 in (91.7 mm) |
|
Max. Pull Tension |
80 lbs (36 kg) |
|---|---|
|
Bulk Cable Weight |
34 lbs/1000ft (51 kg/km) |
|
Environmental Suitability |
Indoor, Sunlight Resistance |
|---|---|
|
Flammability / Reaction to Fire |
UL1666 Riser, FT4, IEC 60332-1-2 |
|
CPR Compliance |
CPR Euroclass: Eca |
|
NEC / UL Compliance |
Article 760, CMR, FPLR |
|
AWM Compliance |
AWM 2464 |
|
CEC / C(UL) Compliance |
FAS105 |
|
European Directive Compliance |
EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
|
UK Regulation Compliance |
UKCA Mark |
|
APAC Compliance |
China RoHS II (GB/T 26572-2011) |
|
Other Standard Compliance(s) |
California State Fire Marshall |
|
Update and Revision |
Revision Number: 0.634 Revision Date: 09-16-2024 |
|---|
| Item # | Color | Putup Type | Length | UPC/EAN | Footnote |
|---|---|---|---|---|---|
| 9575 0025000 | Red | 612825256175 | C Z | ||
| 9575 002U1000 | Red | 612825256151 | |||
| 9575 002U500 | Red | 612825256168 | |||
| 9575.00U999 | Red | Flat Box | 287 m | 8719605022301 | |
| 9575.00305 | Red | Reel | 305 m | 8719605022288 | |
| 9575.00U305 | Red | Flat Box | 305 m | 8719605022295 | |
| 9575.002000 | Red | Reel | 2,000 m | 8719605022271 |
