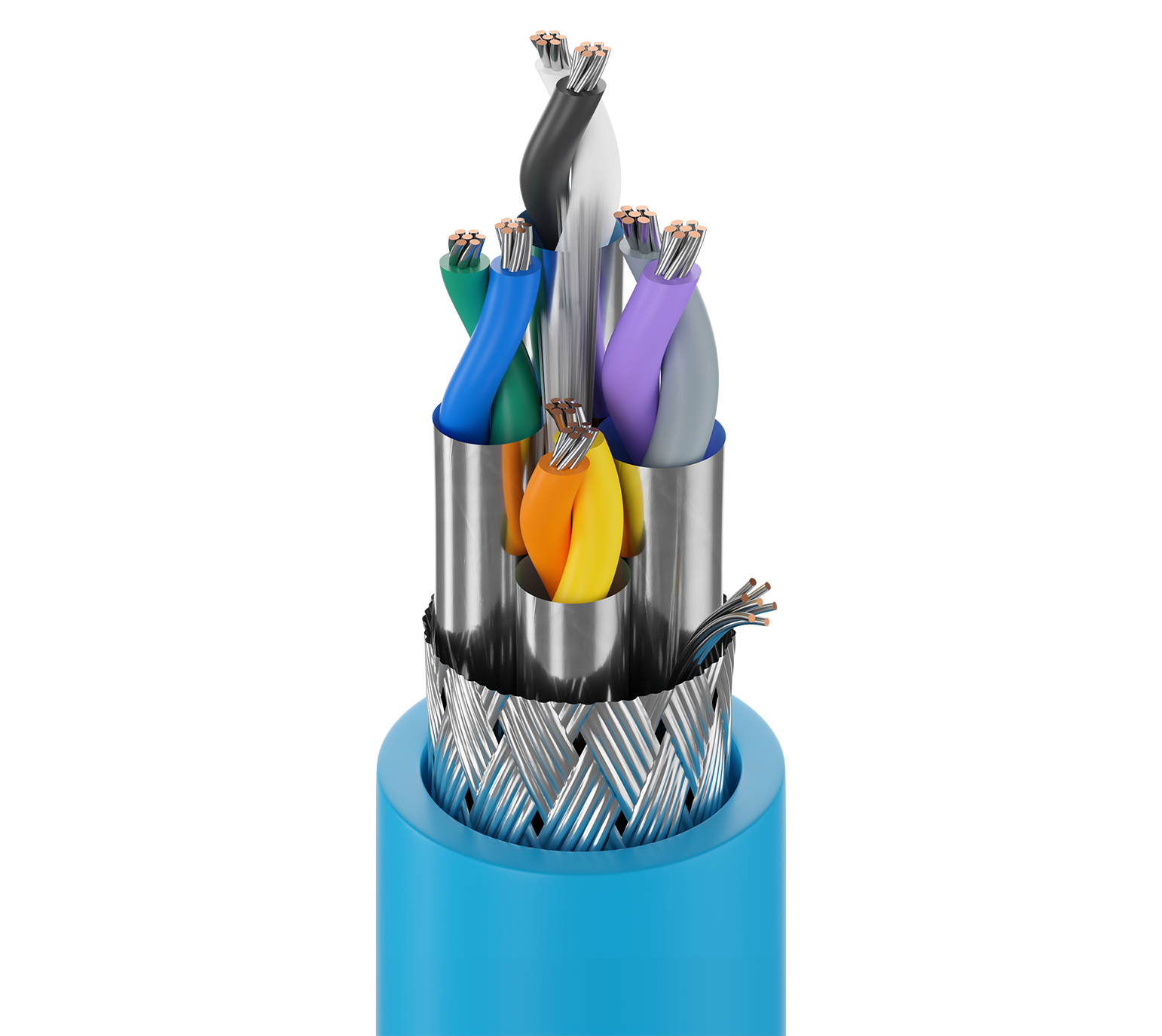

9891

Transceiver 10BASE5, #22-3pr, #20-1pr, FHDPE, Indiv. Foil shielded pairs w/ OA Brd, PVC Jkt, CM

...
IEEE 802.3 Ethernet Transceiver 10BASE5, 20 and 22 AWG stranded tinned copper conductors, foam high-density polyethylene (22 AWG) and PVC (20 AWG) insulation, twisted pairs, Individually foil shielded pairs with overall tinned copper braid shield (95% coverage) drain wire, PVC jacket.

Regions Available: Global
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

IEEE 802.3 Transceiver Cable

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Data Pair(s) 3 22 AWG 7x30 TC - Tinned Copper
Pair(s) 1 20 AWG 7x28 TC - Tinned Copper
Insulation
Element Material Nom. Thickness Nom. Insulation Diameter Color Code Notes
Data Pair(s) PE - Polyethylene (Foam) 0.017 in (0.43 mm) 0.063 in (1.6 mm) Yellow & Orange, Blue & Green, Black & White HDPE
Pair(s) PVC - Polyvinyl Chloride 0.012 in (0.30 mm) 0.062 in (1.6 mm) Gray & Purple
Inner Shield
Element Shield Type Material Coverage Notes
Data Pair(s) Tape Bi-Laminate (Alum+Poly) 100% Foil Out
Pair(s) Tape Bi-Laminate (Alum+Poly) 100% Foil Out
Outer Shield
Shield Type Material Coverage
Braid Tinned Copper (TC) 95%
Outer Jacket
Material Nom. Thickness Nom. Diameter
PVC - Polyvinyl Chloride 0.032 in (0.81 mm) 0.316 in (8.03 mm)

Overall Cable Diameter (Nominal)

0.316 in (8.03 mm)

Electrical Characteristics
Electricals
Element Nom. Conductor DCR Nom. Inner Shield DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
Pair(s) 18.2 Ohm/1000ft 12.4 Ohm/1000ft (40.7 Ohm/km) 16.7 pF/ft (54.8 pF/m) 29.5 pF/ft (96.8 pF/m) 78 Ohm 78% 2 Amps per Conductor at 25ºC
Pair(s) 11.3 Ohm/1000ft (37.1 Ohm/km) 12.4 Ohm/1000ft (40.7 Ohm/km) 2.5 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V (CM), 30 V (AWM 2919)
Mechanical Characteristics
Temperature
UL Temperature Operating
80°C -20°C to +80°C
Bend Radius
Stationary Min. Installation Min.
3.2 in (81 mm) 3.2 in (81 mm)

Max. Pull Tension

160 lbs (73 kg)

Bulk Cable Weight

65 lbs/1000ft

Standards and Compliance

Environmental Suitability

Indoor

Flammability / Reaction to Fire

UL 1685 FT4 Loading, IEC 60332-1-2

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 800, CM

AWM Compliance

AWM 2919

CEC / C(UL) Compliance

CM

IEEE Compliance

IEEE 802.3 10Base5

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.575 Revision Date: 02-03-2025

Show All Specifications
Hide Specifications
Part Numbers
Item # Color UPC Footnote
9891 006100 Blue 612825260066
9891 0061000 Blue 612825260073 C
9891 006500 Blue 612825260080 C
9891 0065000 Blue 612825260097 C Z
