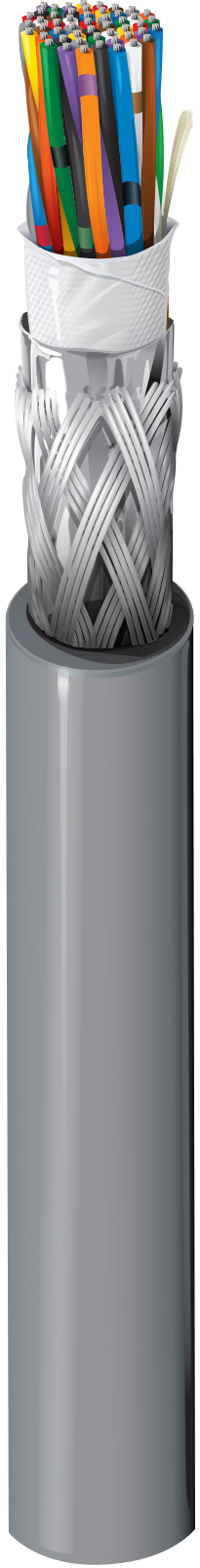

1403A

SCSI, #28-34pr, PO, O/A Foil+Braid, PVC Jkt, CMG

...
SCSI, 28 AWG stranded (7x36) tinned copper conductors, flame-retardant polyolefin insulation, polypropylene buffer layer, twisted pairs, overall Beldefoil® shield + tinned copper braid shield (85% coverage), see color code chart (below), light gray PVC jacket.
English
Request Quote
Share
Get Product Alerts

Specifications
Report An Error
Product Overview

Suitable Applications

SCSI II

Construction Details
Conductor
Element No. of Elements Size Stranding Material
Pair(s) 34 28 7x36 TC - Tinned Copper
Insulation
Material Nom. Thickness Nom. Insulation Diameter Color Code Notes
PP - Polypropylene 0.01 in (0.25 mm) 0.034 in (0.86 mm) White/Blue & Blue/White, White/Orange & Orange/White, White/Green & Green/White, White/Brown & Brown/White, White/Gray & Gray/White, Red/Blue & Blue/Red, Red/Orange & Orange/Red, Red/Green & Green/Red, Red/Brown & Brown/Red, Red/Gray & Gray/Red, Black/Blue & Blue/Black, Black/Orange & Orange/Black, Black/Green & Green/Black, Black/Brown & Brown/Black, Black/Gray & Gray/Black, Yellow/Blue & Blue/Yellow, Yellow/Orange & Orange/Yellow, Yellow/Green & Green/Yellow, Yellow/Brown & Brown/Yellow, Yellow/Gray & Gray/Yellow, Purple/Blue & Blue/Purple, Purple/Orange & Orange/Purple, Purple/Green & Green/Purple, Purple/Brown & Brown/Purple, Purple/Gray & Gray/Purple, White & Blue, White & Orange, White & Green, White & Brown, White & Gray, Red & Blue, Red & Orange, Red & Green, Red & Brown Flame Retardant
Outer Shield
Shield Type Material Coverage
Tape Bi-Laminate (Alum+Poly) 100%
Braid Tinned Copper (TC) 85%
Outer Jacket
Separator Material Nom. Thickness Nom. Diameter
PO - Polyolefin (Foam) Tape PVC - Polyvinyl Chloride 0.038 in (0.97 mm) 0.48 in (12 mm)
Electrical Characteristics
Electricals
Nom. Conductor DCR Nom. Capacitance Cond-to-Cond Nom. Capacitance Cond-to-Other (Conds + Shield) Nom. Characteristic Impedence Nom. Velocity of Prop. Max. Current
73.5 Ohm/1000ft 12.7 pF/ft (41.7 pF/m) 30 pF/ft (98 pF/m) 122 Ohm 66% 0.5 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V
Mechanical Characteristics
Temperature
UL Temperature Operating
105°C -20°C To +105°C
Bend Radius
Stationary Min. Installation Min.
4.8 in (120 mm) 4.8 in (120 mm)

Max. Pull Tension

262.8 lbs (119.2 kg)

Bulk Cable Weight

128 lbs/1000ft

Standards and Compliance

Flammability / Reaction to Fire

UL1685 UL Loading, FT4

CPR Compliance

CPR Euroclass: Eca

NEC / UL Compliance

Article 725, Article 800, CL2, CM

CEC / C(UL) Compliance

CM

European Directive Compliance

EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

UK Regulation Compliance

UKCA Mark

APAC Compliance

China RoHS II (GB/T 26572-2011)

History

Update and Revision

Revision Number: 0.444 Revision Date: 04-14-2023

Show All Specifications
Hide Specifications
Part Numbers
Item # Color UPC Footnote
1403A F2V1000 Gray, DEC 612825114765 C
1403A F2V500 Gray, DEC 612825114772 C
