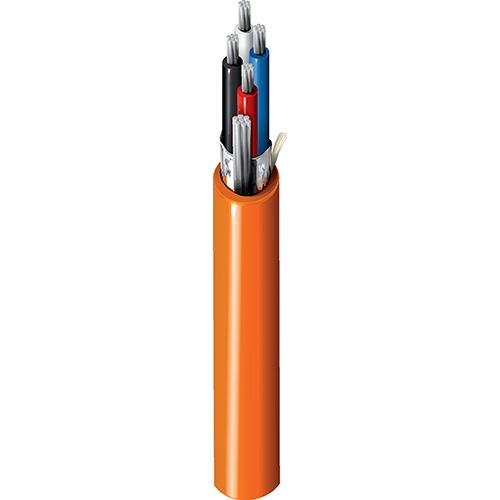

Fieldbus, 20 Pr #16 Str TC, XLPO Ins, IS/OS, TPE Jkt, 600V TC-ER
|
Suitable Applications |
harsh environment digital and serial two-way communication, oil and gas extraction and refining sites, petrochemical, Profibus process automation or Foundation FieldBus process automation, extreme temperature environments, exposure to humidity/moisture, dust, and oil, remote locations long distance applications, etc. |
|---|
| Element | AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|---|
| Pair(s) | 16 | 7x24 | TC - Tinned Copper | 20 |
|
Conductor Count |
40 |
|---|---|
|
Total Number of Pairs |
20 |
| Material | Nominal Wall Thickness |
|---|---|
| XLPE - Cross-Linked Polyethylene (Thermoset) | 0.038 in |
| Number | Color |
|---|---|
| 1 | Blue, Orange and Numbered |
| 2 | |
| 3 | |
| 4 | |
| 5 | |
| 6 | |
| 7 | |
| 8 | |
| 9 | |
| 10 | |
| 11 | |
| 12 | |
| 13 | |
| 14 | |
| 15 | |
| 16 | |
| 17 | |
| 18 | |
| 19 | |
| 20 |
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG |
|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | TC - Tinned Copper | 18 |
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG |
|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | TC - Tinned Copper | 16 |
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| TPE - Thermoplastic Elastomer | 1.469 in | 0.085 in |
| Nominal Conductor DCR |
|---|
| 4.2 Ohm/1000ft |
| Nom. Capacitance Conductor to Conductor |
|---|
| 22 pF/ft |
| Nominal Inductance |
|---|
| 0.22 µH/ft |
| Nominal Characteristic Impedance |
|---|
| 100 Ohm |
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 0.039 MHz | 0.065 dB/100ft |
| Nominal Velocity of Propagation (VP) [%] |
|---|
| 64% |
| Max. Recommended Current [A] |
|---|
| 7.2 Amps per Conductor |
| UL Voltage Rating |
|---|
| 600 V |
|
Electrical Characteristics Notes |
Max Propagation Delay Change From 7.812 kHz to 39.06 kHz: 518 pS/ft |
|---|---|
|
Other Electrical Characteristic 2 |
31.25 KBits/sec |
|
UL Temp Rating |
90°C |
|---|---|
|
Operating Temperature Range |
-40°C to 90°C |
|
Oil Resistance |
Yes |
|---|---|
|
Bulk Cable Weight |
1037 lbs/1000ft |
|
Max. Pull Tension |
1911 lbs |
|
Min. Bend Radius/Minor Axis |
14.75 in |
|
NEC Articles |
Article 336 |
|---|---|
|
NEC/(UL) Compliance |
TC-ER |
|
CSA AWM Compliance |
AWM I A/B II A/B |
|
ISO/IEC Compliance |
IEC 61158-2 |
|
Other Standards |
ISA/SP-50 Type A |
|
EU Directive 2000/53/EC (ELV) |
Yes |
|---|---|
|
EU Directive 2003/11/EC (BFR) |
Yes |
|
EU Directive 2011/65/EU (RoHS 2) |
Yes |
|
EU Directive 2012/19/EU (WEEE) |
Yes |
|
EU Directive 2015/863/EU (RoHS 2 amendment) |
Yes |
|
EU Directive Compliance |
EU Directive 2003/11/EC (BFR) |
|
EU CE Mark |
Yes |
|
Suitability - Burial |
Yes |
|---|---|
|
Suitability - Indoor |
Yes |
|
Suitability - Outdoor |
Yes |
|
Suitability - Sunlight Resistance |
Yes |
|
UL Flammability |
UL1581 Vertical Tray |
|---|---|
|
IEC Flammability |
IEC 60332-3-24 |
|
UL voltage rating |
600 V RMS |
|
Plenum (Y/N) |
No |
|---|
|
Update and Revision |
Revision Number: 0.311 Revision Date: 11-15-2024 |
|---|
| Item # | Color | UPC |
|---|---|---|
| 2133A 0061000 | Blue, Light | 612825130376 |
| 2133A 0031000 | Orange | 612825130369 |
